Chapter 11 Cisco ASR 1013 Router Overview and Installation
Cisco ASR 1013 Router Description

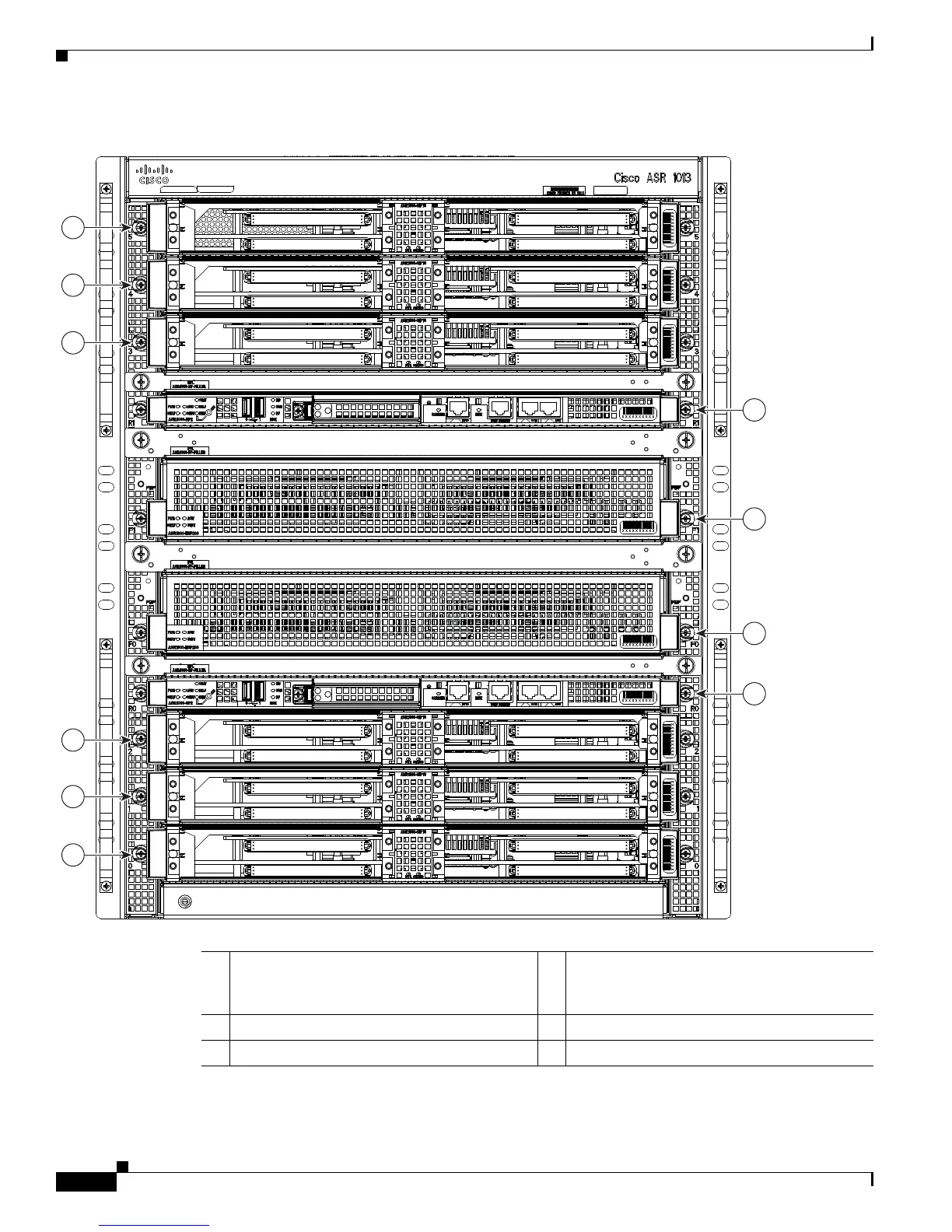

Figure 11-1 Cisco ASR 1013 Router—Front View
1 ASR 1000 Series SIP slot 5 6 Slot F0 with Cisco ASR 1000-ESP40, Cisco
ASR 1000-ESP100, or Cisco ASR
1000-ESP200
2 ASR 1000 Series SIP slot 4 7 Slot R0 with ASR 1000- RP2
3 ASR 1000 Series SIP slot 3 8 ASR 1000 Series SIP slot 2
7
8
9
10
1
2
3
4
5
6
