Chapter 11 Cisco ASR 1013 Router Overview and Installation
Attaching the Cable-Management Bracket
Figure 11-9 shows the cable-management brackets attached to the chassis in a rack.

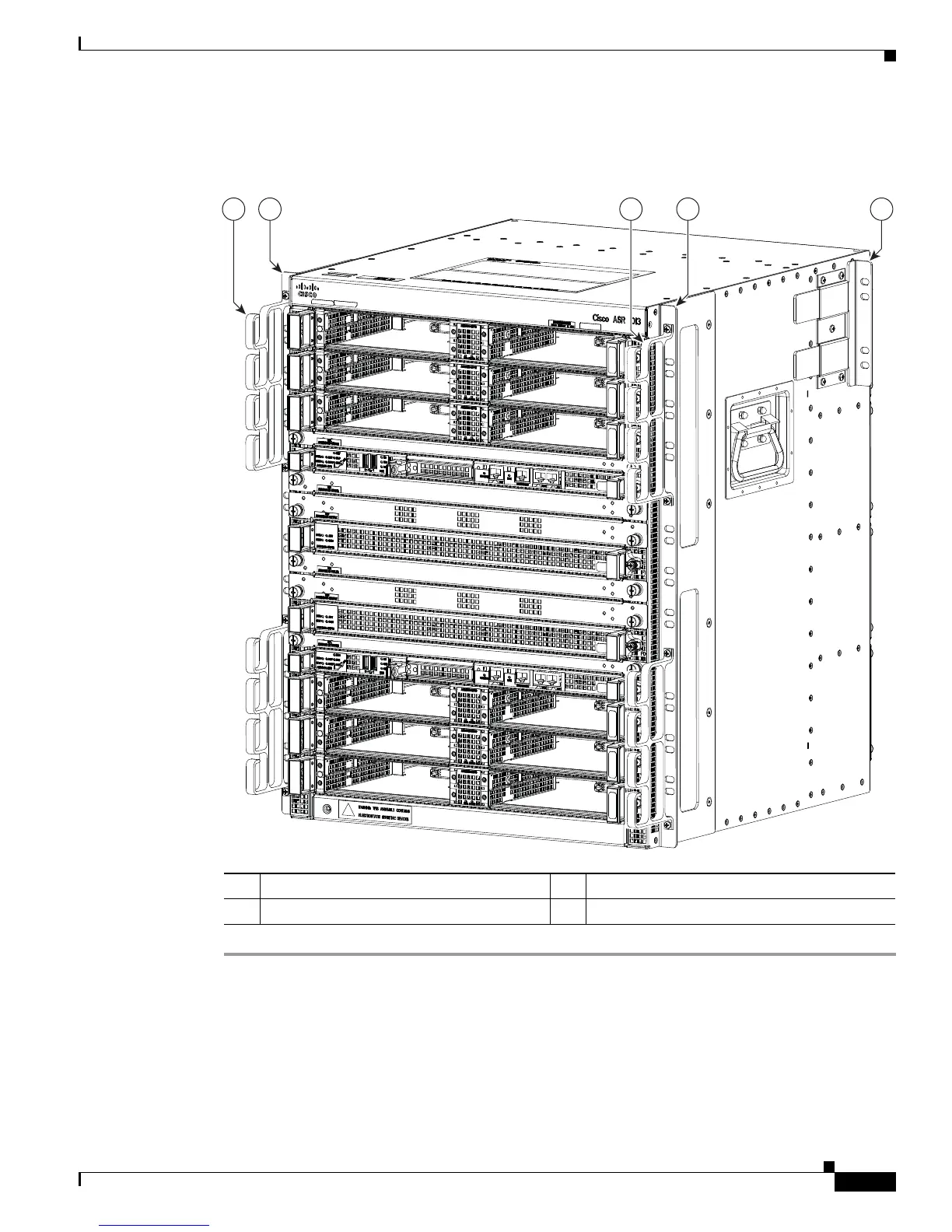

Figure 11-9 Cable-Management Brackets Installed on the Cisco ASR 1013 Router
This completes the procedure for installing the cable-management brackets on the chassis.
1 Cable-management bracket screw location 3 Chassis front rack-mount bracket
2 Cable-management bracket — —
