Chapter 2 Cisco ASR 1000 Series Routers Component Overview
Power Supplies for the Cisco ASR 1006 Router

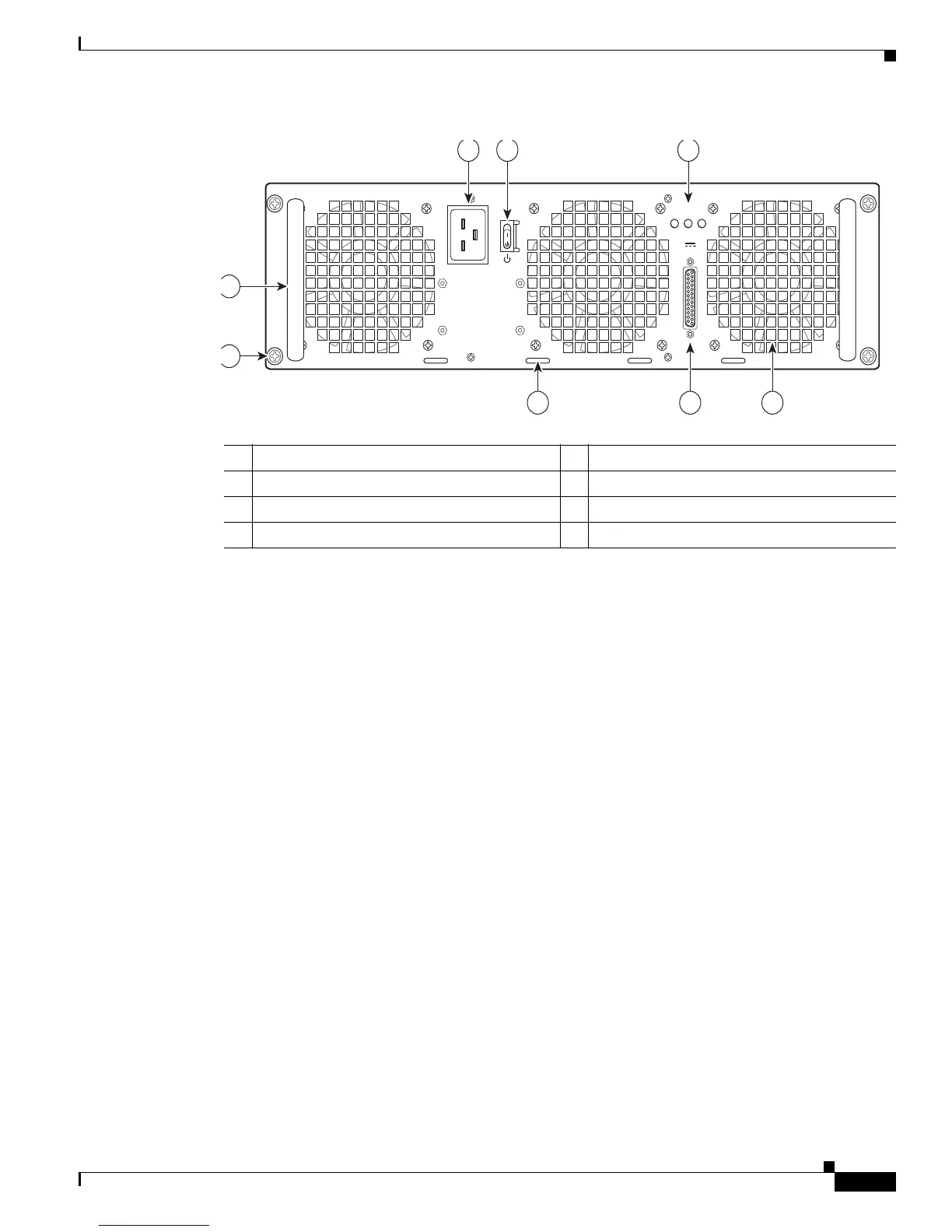

Figure 2-5 Cisco ASR 1006 Router AC Power Supply
280029
OUTPUT INPUT INPUT
FAIL OK OK
ALARMS
60V
1A MAX
100-240V~ 16-7A
50-60HZ
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
2 13
4
5
6 7
8
1 AC power supply fan 5 AC power supply handle
2 DB-25 alarm connector 6 AC power inlet
3 Tie-wrap tab 7 AC power supply standby switch
4 AC power supply captive screw 8 AC power supply LEDs
