Cisco ASR 1000 Series Hardware Installation Guide

2-26
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 2 Cisco ASR 1000 Series Routers Component Overview
Power Supplies for the Cisco ASR 1006 Router
Figure 2-6 shows the AC power supply LEDs and DB-25 alarm connector.

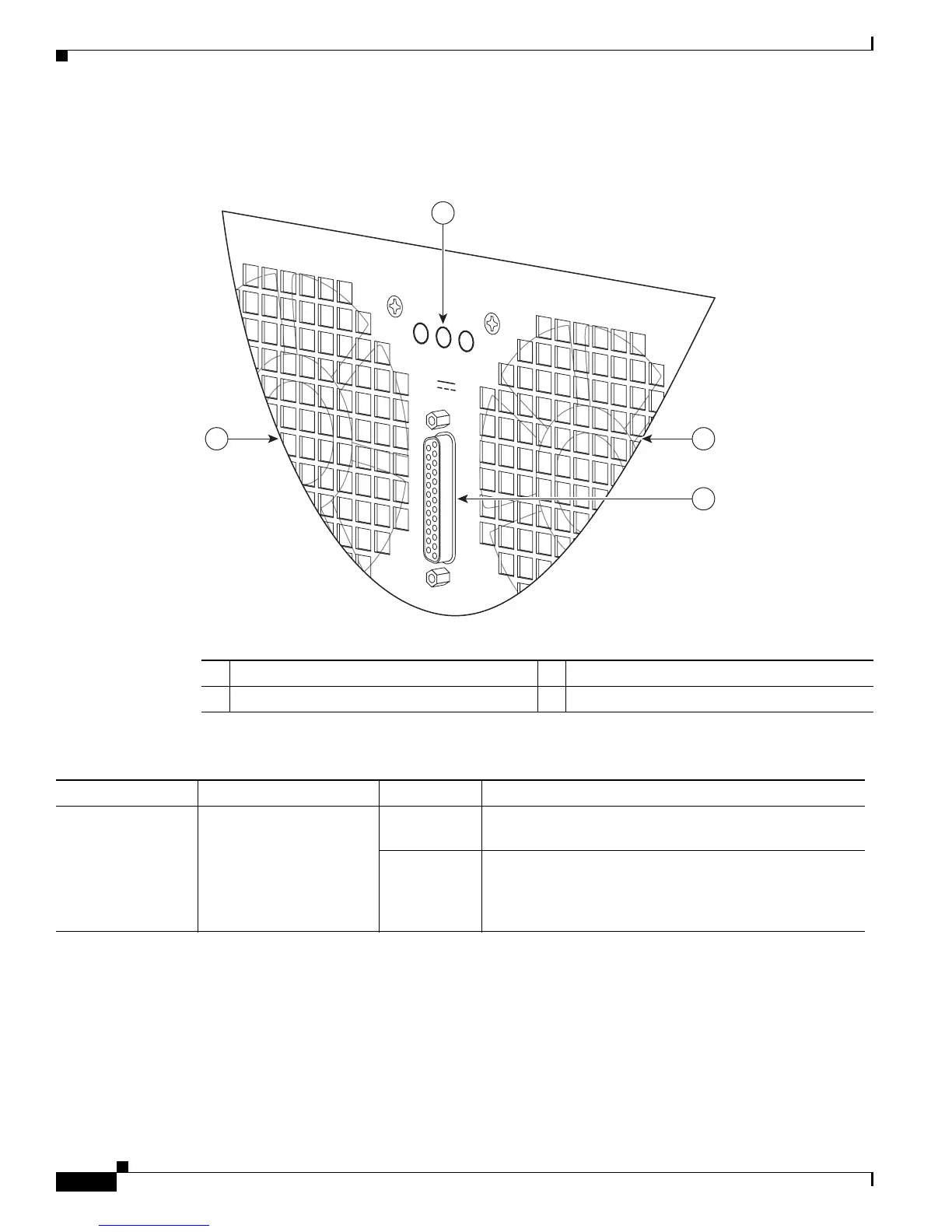

Figure 2-6 Cisco ASR 1006 Router AC Power Supply LEDs and DB-25 Alarm Connector
Table 2-12 describes the AC power supply LEDs on the Cisco ASR 1006 Router.
1 AC power supply LEDs 3 DB-25 alarm connector
2 AC power supply fan 4 AC power supply fan
1A MAX.
OUTPUT INPUT FAN
FAIL OK OK
ALARMS
60V
280028
1
24
3
Table 2-13 Cisco ASR 1006 Router AC Power Supply LEDs
LED Label LED Color Description
INPUT OK Power supply activity Green LED illuminates green to signal that the AC power supply
input voltage is greater than 85 V.
None If LED is not illuminated, then the AC input voltage is
less than 70 V or the power supply is turned off. For an
AC input voltage between 70 V and 85V, the INPUT OK
LED can be either on, off, or flashing
