Chapter 2 Cisco ASR 1000 Series Routers Component Overview
Power Supplies for the Cisco ASR 1004 Router
Cisco ASR 1004 AC Power Supply LEDs and Connector
Figure 2-8 shows the AC power supplies at the rear of the Cisco ASR 1004 Router.The Cisco ASR 1004
Router supports up to two power supplies.

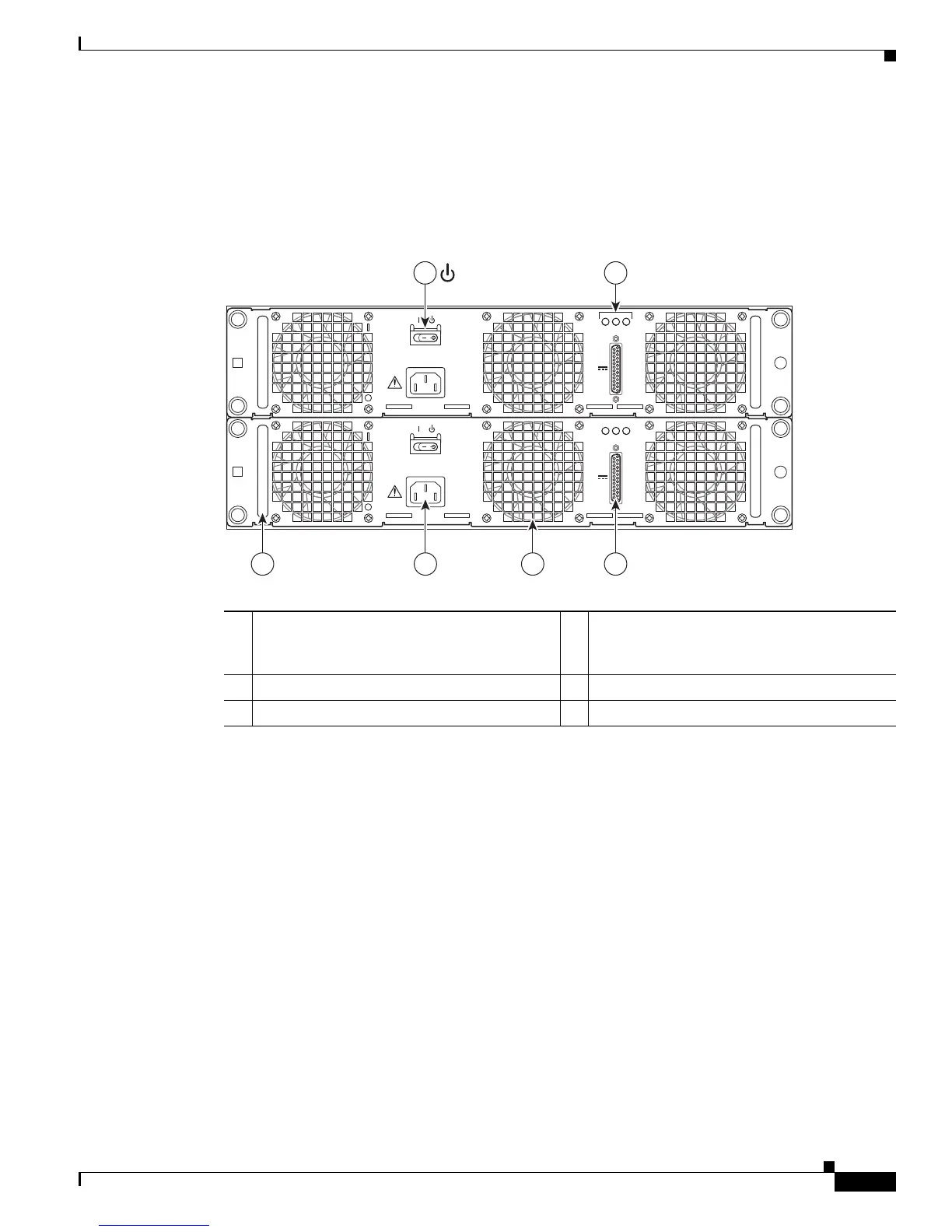

Figure 2-8 Cisco ASR 1004 Router AC Power Supply
1 AC power supply standby switch (standby
symbol is a broken circle with a vertical line
through the top of it)
4 AC power supply fan
2 AC power supply LEDs 5 AC power inlet
3 DB-25 alarm connector 6 AC power supply handle
280184
OUTPUT INPUT
FAIL
OK OK
FAN
100V-240V~ 12A-5A
50-60Hz
ALARMS
60V
1A MAX
OUTPUT INPUT
FAIL
OK OK
FAN
100V-240V~ 12A-5A
50-60Hz
ALARMS
60V
1A MAX
1 2
34
6
5

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
