Cisco ASR 1000 Series Hardware Installation Guide

2-32
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 2 Cisco ASR 1000 Series Routers Component Overview
Power Supplies for the Cisco ASR 1004 Router

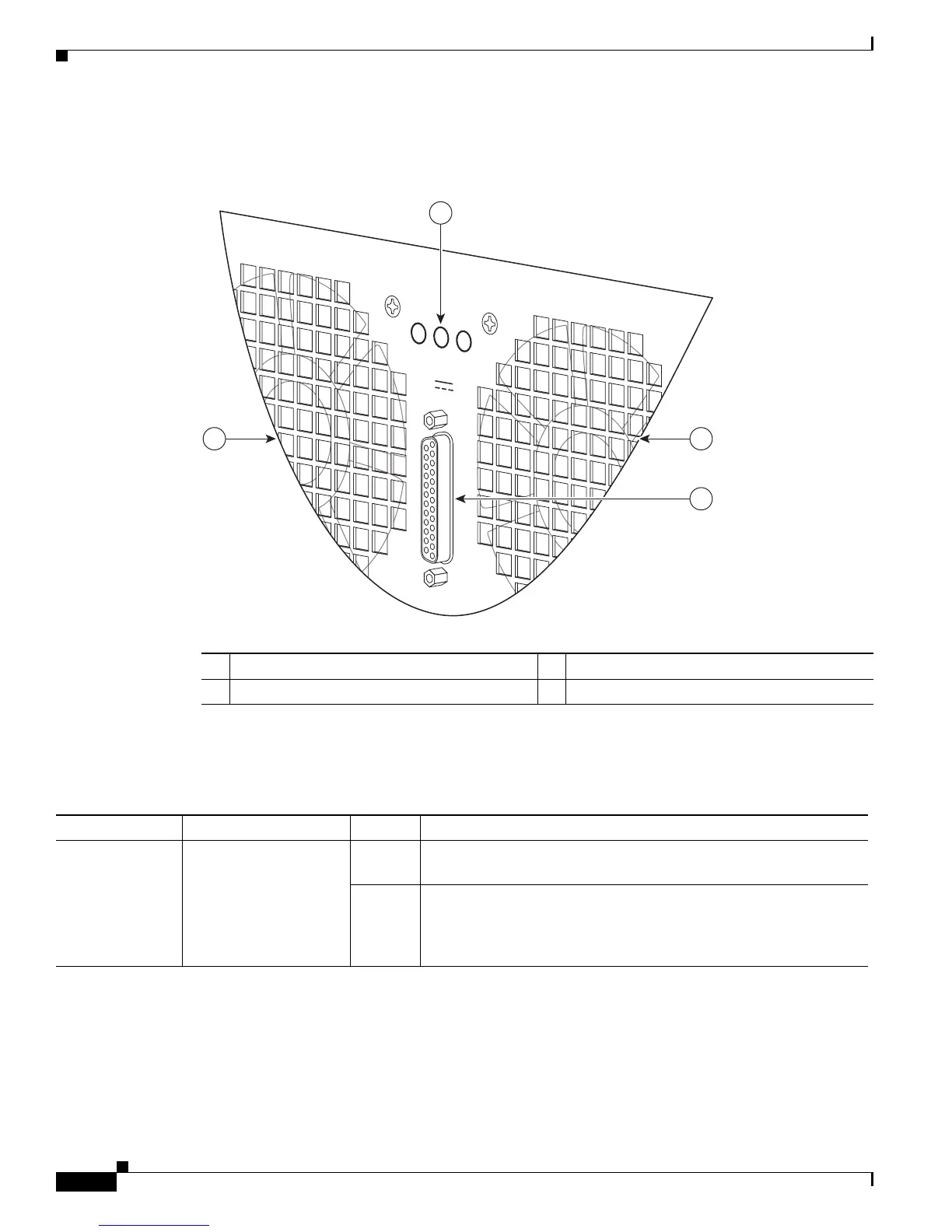

Figure 2-9 shows the AC power supply LEDs and DB -25 alarm connector.
Figure 2-9 Cisco ASR 1004 Router AC Power Supply LEDs and DB -25 Alarm Connector
Table 2-16 describes the power supply LEDs and connectors on the rear of the chassis.
1 AC power supply LEDs 3 DB-25 alarm connector
2 Power supply fan 4 AC power supply fan
1A MAX.
OUTPUT INPUT FAN
FAIL OK OK
ALARMS
60V
280028
1
24
3
Table 2-16 Cisco ASR 1004 Router AC Power Supply LEDs and Connector
LED Label LED Color Description
INPUT OK Power supply activity Green LED illuminates green to signal that the AC power supply input
voltage is greater than 85 V.
None If LED is not illuminated, then the AC input voltage is less than 70
V or the power supply is turned off. For an AC input voltage
between 70 V and 85V, the INPUT OK LED can be either on, off,
or flashing

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
