Chapter 2 Cisco ASR 1000 Series Routers Component Overview
Power Supplies for the Cisco ASR 1004 Router
Cisco ASR 1004 Router –48 VDC Power Supply LEDs and Connector

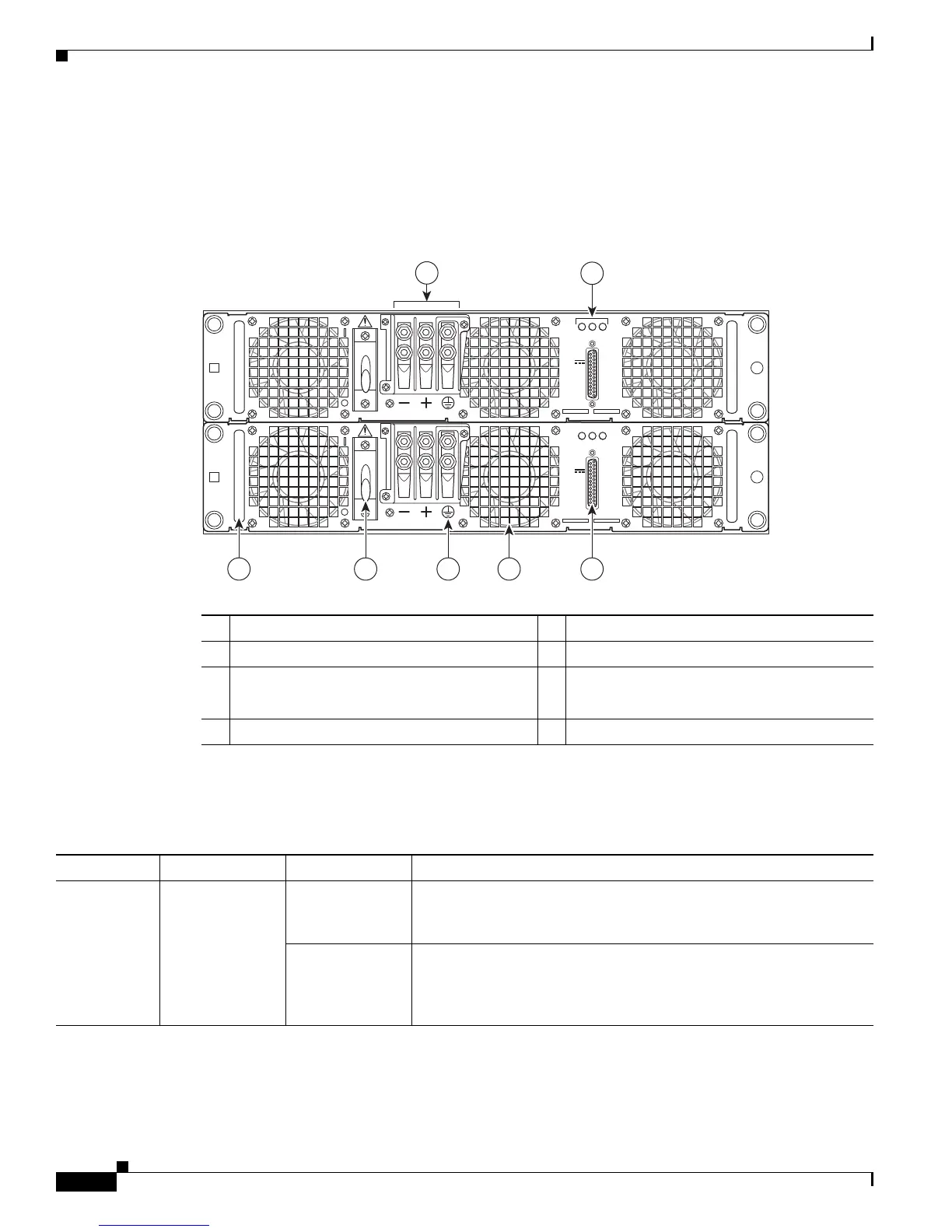

Figure 2-10 shows the –48 VDC power supplies at the rear of the Cisco ASR 1004 Router. The Cisco
ASR 1004 Router supports up to two power supplies.
Figure 2-10 Cisco ASR 1004 Router –48 VDC Power Supply
Table 2-17 describes the power supply LEDs and connectors on the rear of the chassis.
1 Terminal and plastic cover 5 Grounding symbol
2 Power supply LEDs 6 Power supply On (|) /Off (O) switch
3 DB-25 alarm connector
Power supply ground lugs (+ and –)
7 Power supply handle
4 Power supply fan — —
280185
OUTPUT INPUT
FAIL
OK OK
FAN
60V
1A MAX
OUTPUT INPUT
FAIL
OK OK
FAN
60V
1A MAX
1
2
345
67
Table 2-17 Cisco ASR 1004 Router –48 VDC Power Supply LEDs
LED Label LED Color Description
INPUT OK A bi-color LED
indicates
presence of input
voltage
Green LED illuminates green to signal that the –48 VDC power supply input
voltage is greater than–43.5VDC at turn-on and remains green down
to –39VDC.
Amber The LED illuminates amber when the input voltage (falls below
–39VDC) and indicates that there is still a voltage present (voltage on
the terminal block). The LED remains amber and is active to around
20 V +/-5 V. The LED is not illuminated if the input is below –15 V.
