The followng image shows the ASR1013/06-PWR-DC power supply for the Cisco ASR 1006 Router.

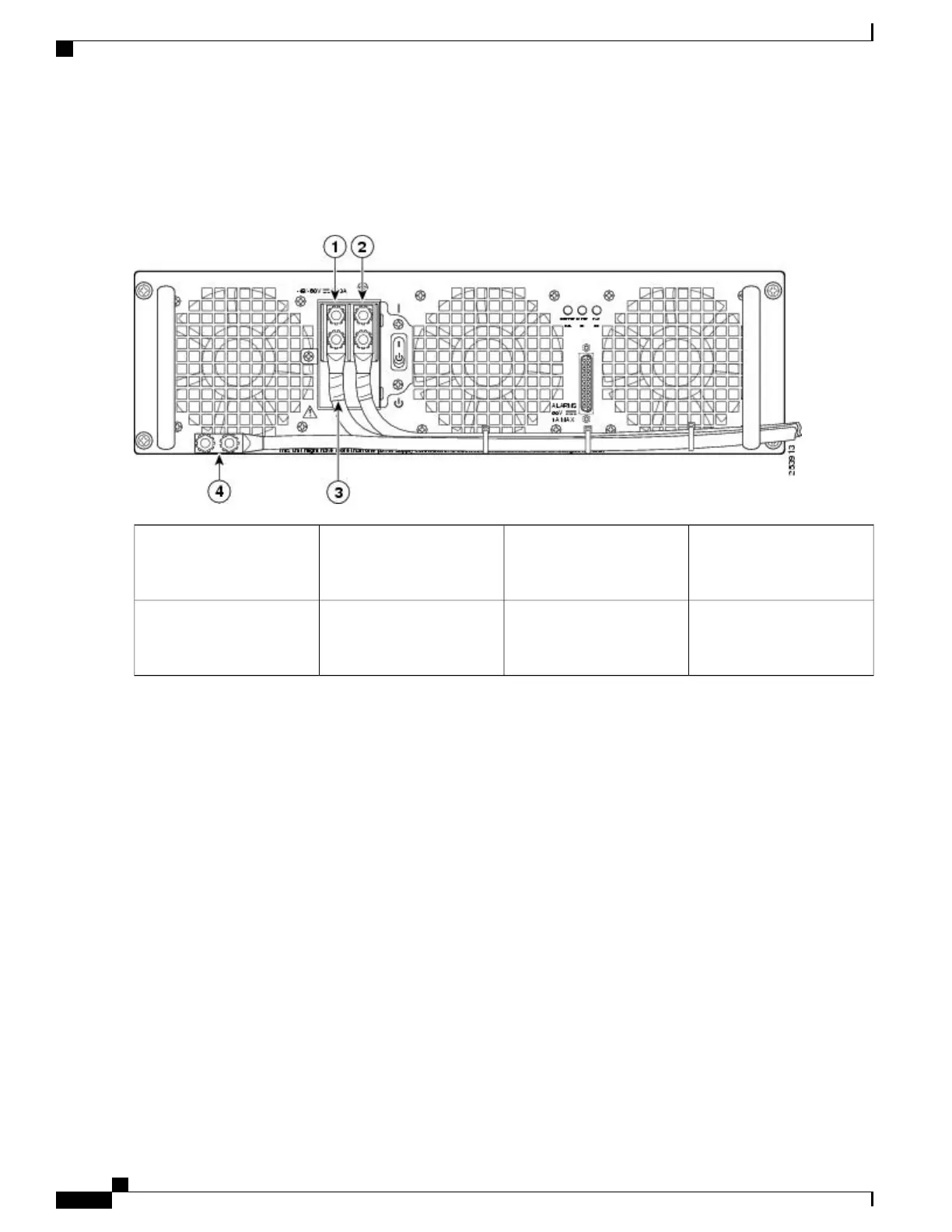

Figure 52: Cisco ASR 1006 Router DC Power Supply (ASR1013/06-PWR-DC) Terminal Block Ground Cable Lugs
Location of sleeving
wrapped around the wire and
end of the grounding stud
3Negative lug and wire with
sleeving wrapped around the
wire and end of lug
1
Ground lug and wire4Positive lug and wire with
sleeving wrapped around the
wire and end of lug
2
Step 6
For easier cable management, insert the negative lead cable first. Replace the ground lug with cable in the following
order:
a) Flat Washer
b) Ground lug with negative wire
c) Kepnut screw
Step 7
Tighten the Kepnut screw to recommended torque of 18 in-lbs minimum to 22 in-lbs maximum for the positive stud and
wire.
Secure the wires coming in from the terminal block so that they cannot be disturbed by casual contact.Note
Step 8
Use tie wraps to secure the wires, so that the wires are not pulled from the terminal block by casual contact. Ti-wrap
studs are located below the power supply terminal block (see Figure 53: Cisco ASR 1006 Router DC Power Supply
(ASR1006-PWR-DC) Terminal Block Plastic Cover, on page 175).
Step 9
Replace the terminal block plastic cover and tighten the screw. The plastic cover is slotted and keyed to fit correctly over
the terminal block.
