and this SPA is physically located on the Cisco embedded ASR1000-RP1 board. The Cisco ASR 1000 Series
ESP card is located in slot 1 and labeled as FP0.
c_Cisco_ASR_1002_Router_Slot_Numbering_1243123.xml shows the Cisco ASR 1002 Router slot numbering.

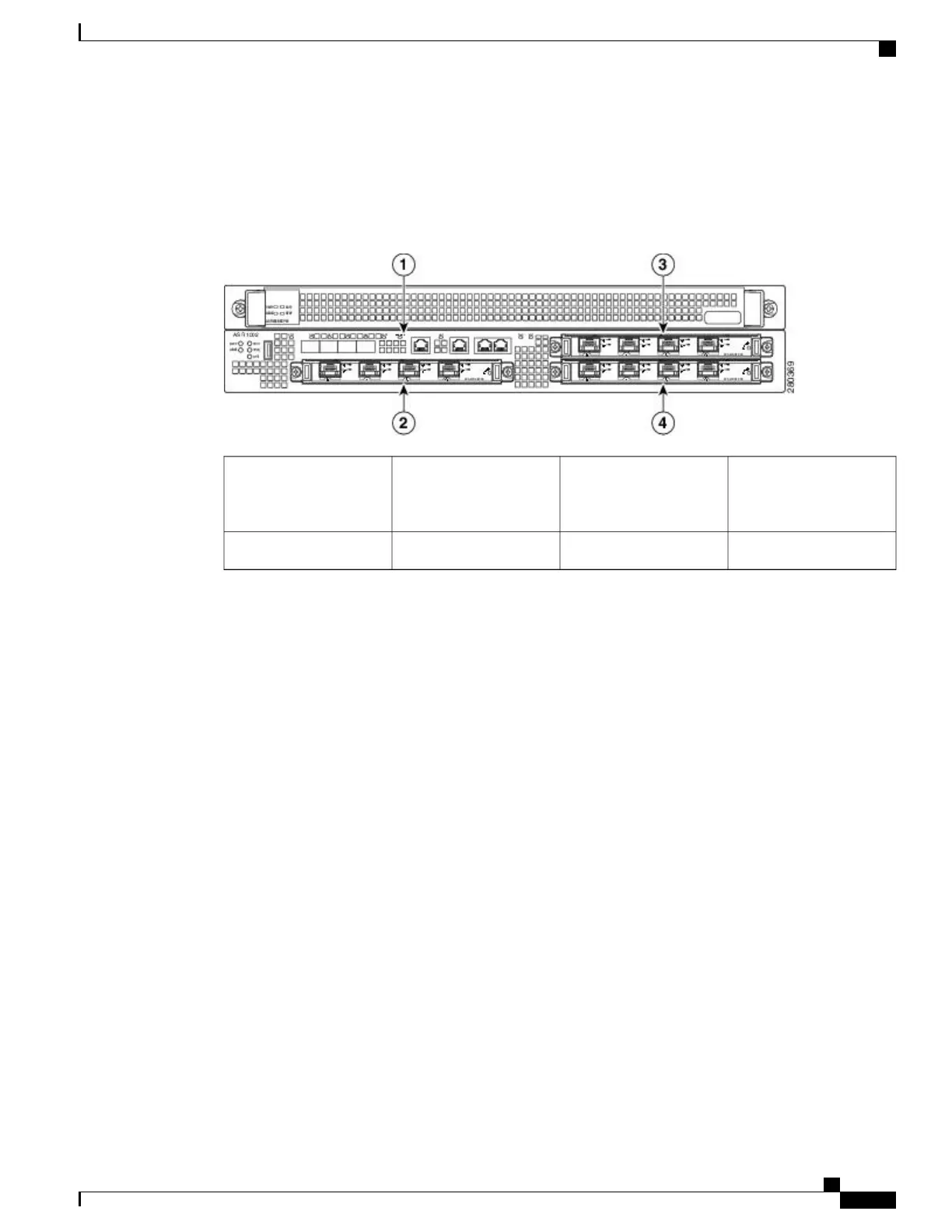

Figure 82: Cisco ASR 1002 Router Slot Numbering
Cisco SPA subslot 13Embedded route
processor RP0 in subslot
0
1
Cisco SPA subslot 34Cisco SPA subslot 22
Cisco ASR 1002 Router Components
The Cisco ASR 1002 Router system is derived from the architecture of the other Cisco ASR 1000 Series
routers. The three main subassemblies of any Cisco ASR 1000 Series Routers are all supported in the Cisco
ASR 1002 Router, which is the:
•
C
isco embedded ASR1000-RP1 and Cisco embedded ASR1000-SIP10 (not field upgradable)
•
Cisco ASR1000-ESP5 and Cisco ASR1000-ESP10 embedded services processors are field-replaceable
units (FRU)
•
AC or DC power supplies which are field-replaceable units
Cisco Embedded ASR1000-RP1 for Cisco ASR 1002 Router Description
The Cisco ASR 1000 Series route processor (embedded for the Cisco ASR 1002 Router) is the central control
processor and runs the network operating system.
The Cisco embedded ASR1000-RP1 supports management interfaces such as the Ethernet network management
port and console and auxiliary serial ports. It has LED status indicators, an RJ-45 plug for a BITS timing
reference and one USB port which can be used with smart cards for secure key distribution or for image or
configuration file updates.
The Cisco embedded ASR1000-RP1 deviates from the other ASR Series Route Processor 1 for the Cisco
ASR 1006 router and the Cisco ASR 1004 Router in the following ways:
