Cisco ASR 1004 AC Power Supply LEDs and Connector

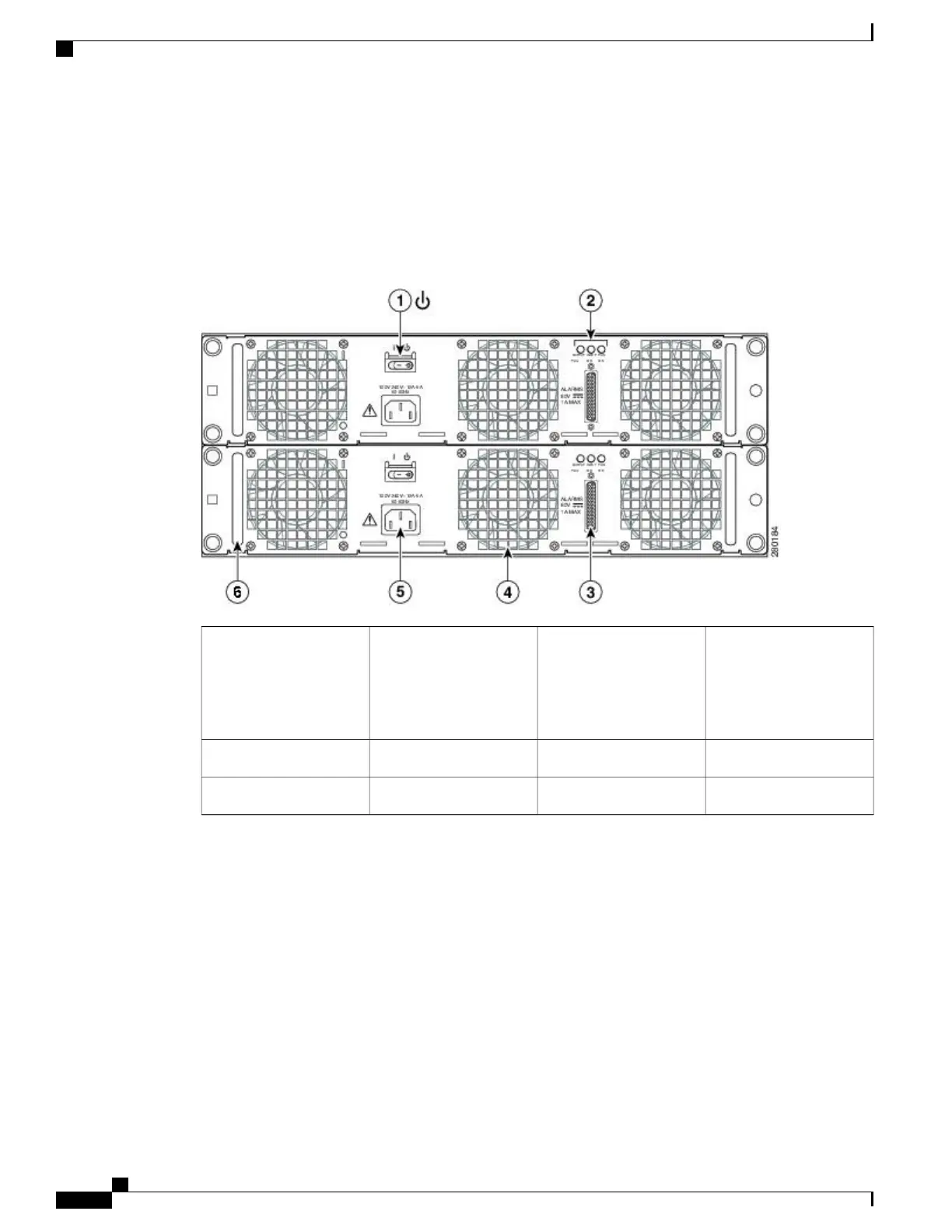

The following figure shows the AC power supplies at the rear of the Cisco ASR 1004 Router.The Cisco ASR
1004 Router supports up to two power supplies.
Figure 13: Cisco ASR 1004 Router AC Power Supply
AC power supply fan4AC power supply standby
switch (standby symbol
is a broken circle with a
vertical line through the
top of it)
1
AC power inlet5AC power supply LEDs2
AC power supply handle6DB-25 alarm connector3
Cisco ASR 1000 Series Router Hardware Installation Guide
60
Cisco ASR 1000 Series Routers Component Overview
Cisco ASR 1004 AC Power Supply LEDs and Connector
