Cisco ASR 1013 Hardware Installation Guide

DETAILED STEPS
Step 1
Before connecting a terminal to the console port, configure the terminal to match the chassis console port as follows:
9600 baud, 8 data bits, no parity, 1 stop bits (9600 8N1).
Step 2
After you establish normal router operation, you can disconnect the terminal.
Connecting the Ethernet Management Port Cable
When using the Fast Ethernet Management port in the default mode (speed-auto and duplex-auto) the port
operates in auto-MDI/MDI-X mode. The port automatically provides the correct signal connectivity through
the Auto-MDI/MDI-X feature. The port automatically senses a crossover or straight-through cable and adapts
to it.
However, when the Fast Ethernet Management port is configured to a fixed speed (10/100/1000 Mbps) through
command-line interface (CLI) commands, the port is forced to MDI mode.
When in a fixed-speed configuration and MDI mode:
•
Use a crossover cable to connect to an MDI port
•
Use a straight-through cable to connect to an MDI-X port
The following figure shows the MGMT Ethernet port connector.

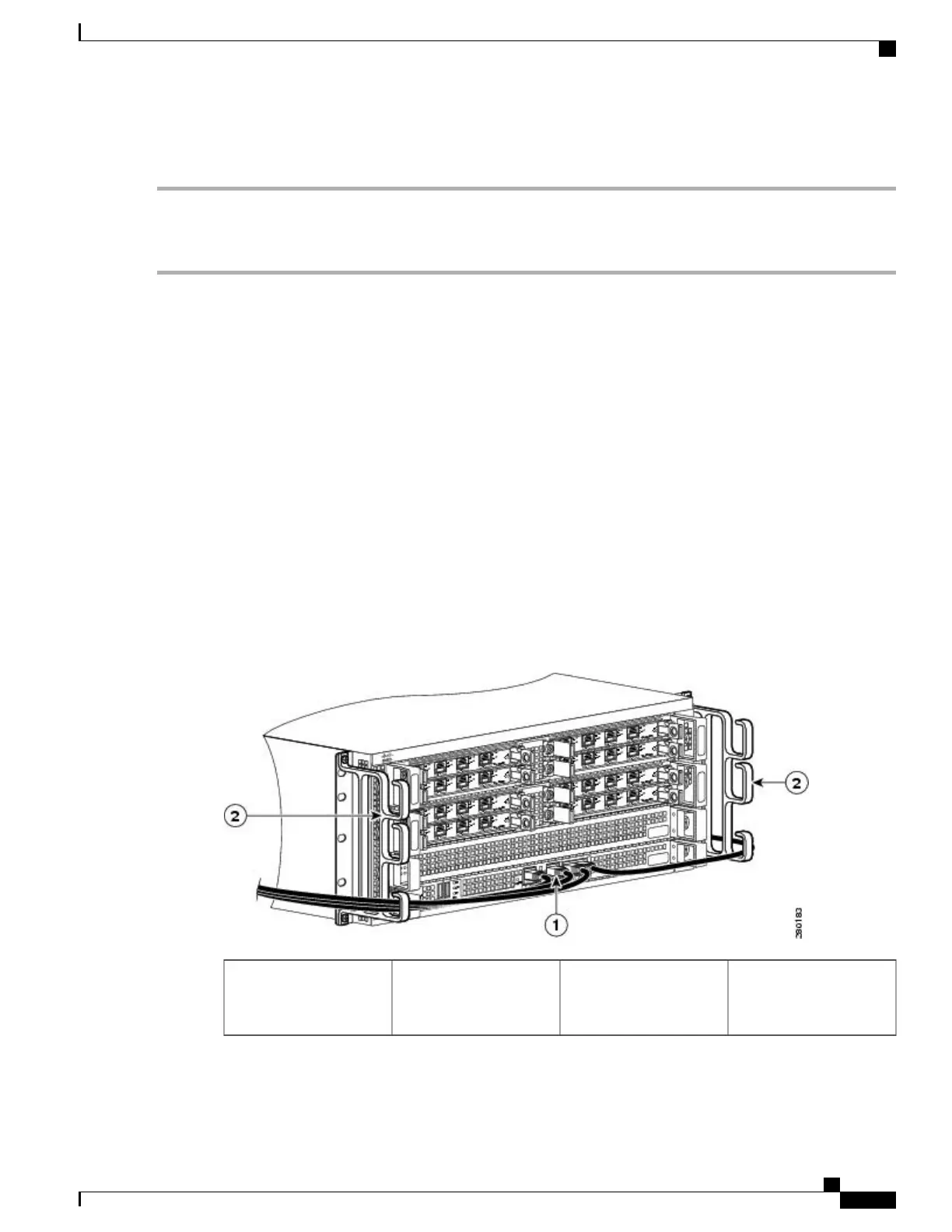

Figure 72: Cisco ASR 1000 Series Route Processor MGMT Ethernet Port Connector
Cable-management
bracket and U feature
device
2MGMT Ethernet port1
Cisco ASR 1000 Series Router Hardware Installation Guide
207
Cisco ASR 1004 Router Overview and Installation
Connecting the Ethernet Management Port Cable
