The Cisco ASR 1002 Router supports three half-height SPAs and an optional built-in 4xGE SPA. The Cisco
ASR 1002 Router supports all the general-purpose routing and security features of the Cisco ASR 1000 Series
Routers. It uses the same internal control and data-plane architecture as the other Cisco ASR 1000 Series
Routers.
The Cisco ASR 1002 Router supports:
•
Cisco ASR1000-ESP5 or Cisco ASR1000-ESP10 as a field-replaceable unit (FRU)
•
The Cisco Embedded Route Processor which supports 2MB upgradeable BootROM and 8 GB eUSB
bulk storage.
•
1 + 1 redundant AC or DC power supplies.
•
Stratum-3 network clocking per GR-1244-CORE, with T1/E1 BITS interface or SPAs as timing sources.
•
A built-in 4x1GE SPA providing four small form-factor pluggable (SFP-based) GE connections,
designated as SPA bay 0.
For information about the SFP transceiver modules that are compatible with Cisco ASR 1002 Built-in Gigabit
Ethernet Ports (4x1GE), refer to the “Modular Optics Compatibility” section in Cisco ASR 1000 Series
Aggregation Services Routers SIP and SPA Hardware Installation Guide .
The Cisco ASR 1002 Router supports upgradeable Cisco ASR1000-ESP5 or ASR1000-ESP10 assembly and
the power supply modules as field-replaceable units. The Cisco integrated ASR1000-SIP10 and Cisco built-in
ASR1000-RP1 assemblies are fixed into the chassis and are not upgradeable; but the shared port adapters in
the SIP are field upgradable.
This section contains the following topics:
•
Front View, on page 220
•
Rear View, on page 221
•
Cisco ASR 1002 Router Slot Numbering, on page 222
Front View
Cisco ASR 1002 router front view shows the Cisco ASR 1002 Router with modules installed.

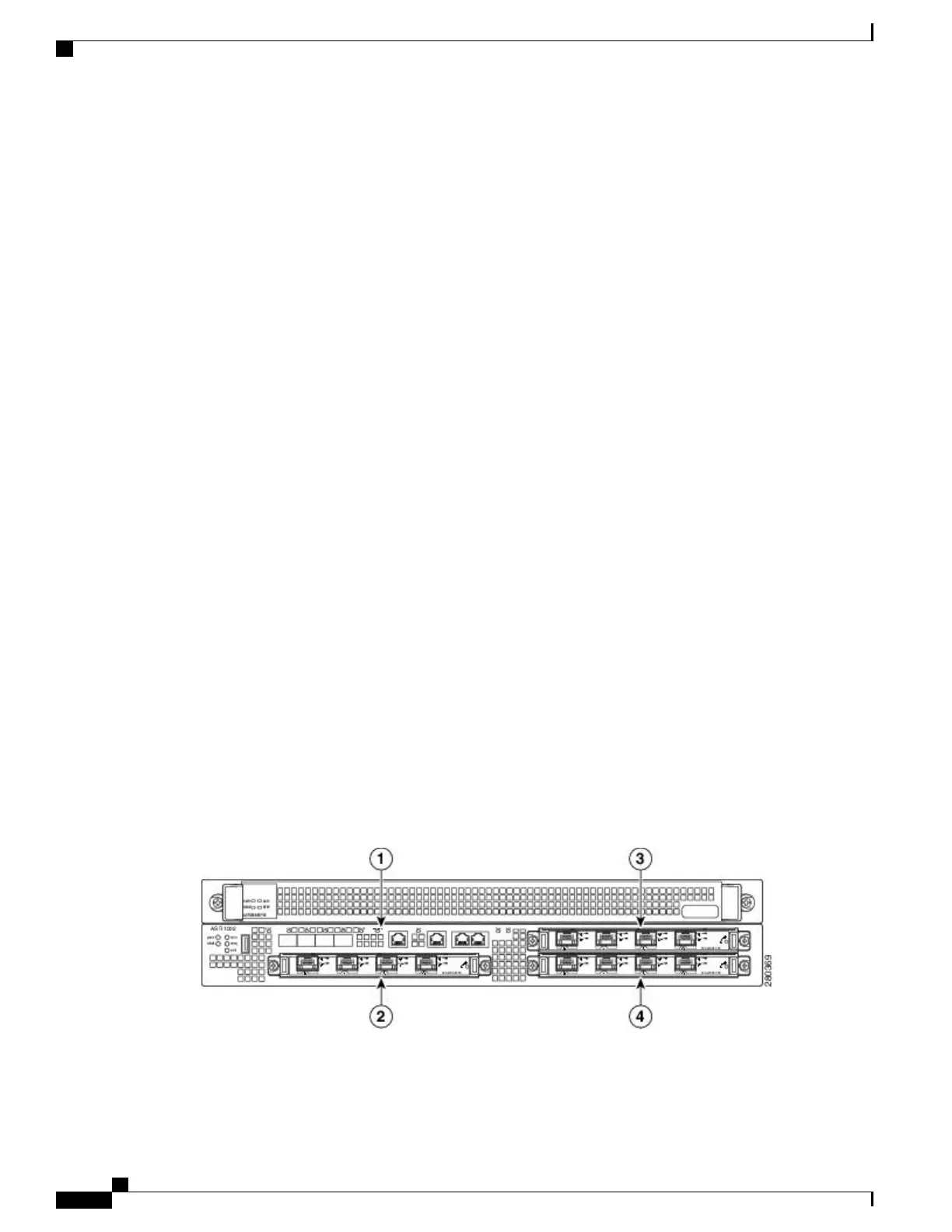

Figure 79: Cisco ASR 1002 Router — Front View
Cisco ASR 1000 Series Router Hardware Installation Guide
220
Cisco ASR 1002 Router Overview and Installation
Front View
