Cisco ASR 1013 Hardware Installation Guide

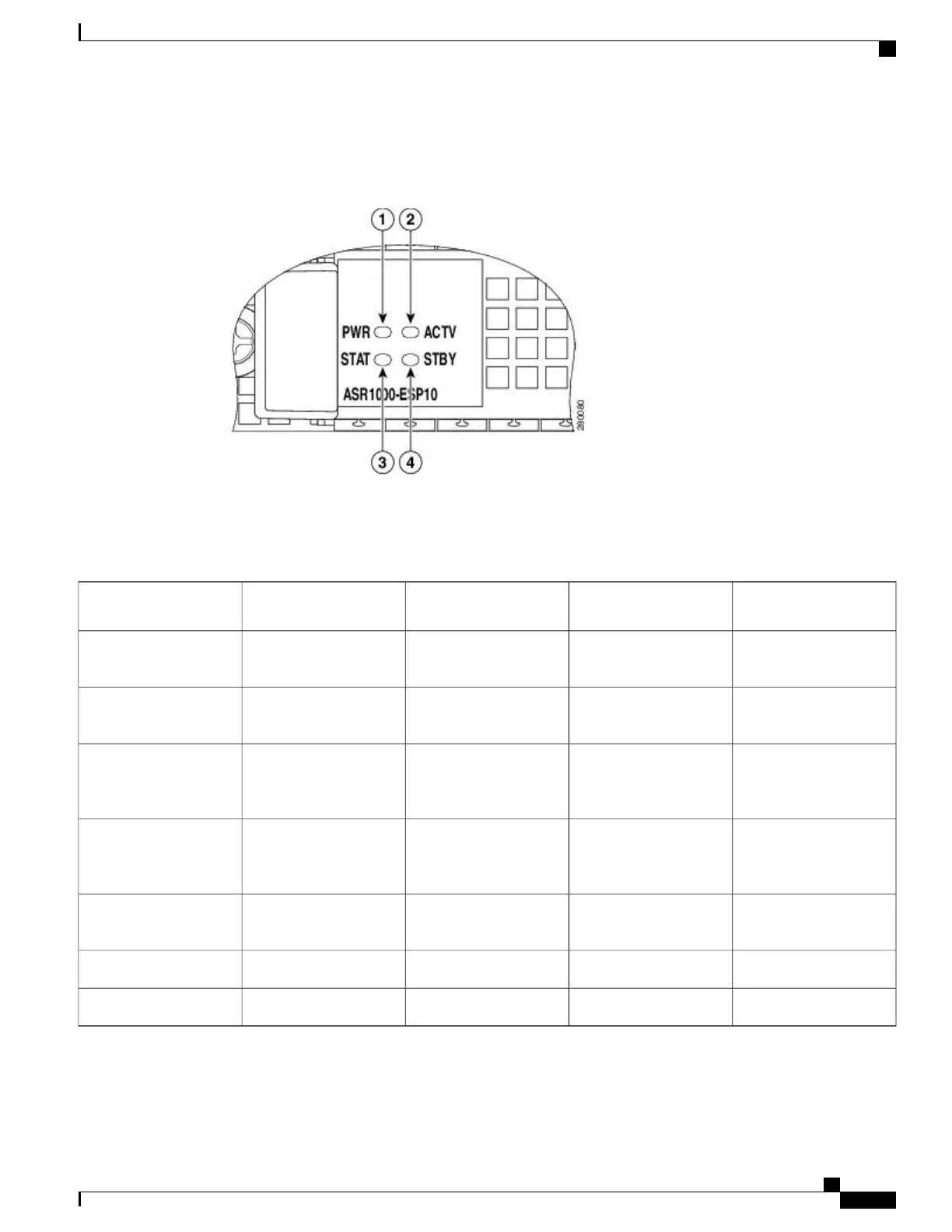

Cisco ASR1000-ESP10 image shows the LEDs on the Cisco ASR1000-ESP10.
Figure 83: Cisco ASR1000-ESP10 LEDs
c_Cisco_ASR1000-ESP5_and_ASR1000-ESP10_Description_1222814.xml describes the Cisco ASR1000-ESP5
and Cisco ASR1000-ESP10 LEDs.
Table 52: Cisco ASR1000-ESP5 and Cisco ASR1000-ESP10 LEDs
Behavior in the
Power-Up State
ColorLEDLED LabelNo.
All power supplies are
within operational limits.
Solid greenPowerPWR1
Off, the router is in
standby mode.
Off
The embedded services
processor is green when
active.
GreenActiveACTV2
Code has successfully
downloaded and is
operational.
GreenSTATUSSTAT3
BOOT ROM has
successfully loaded.
Yellow
Not booted.Red
Will always be off.NoneStandbySTBY4
