Cisco ASR 1013 Hardware Installation Guide

Inner clearance (the width between the inner sides of the two posts or rails) must be at least 19 inches
(48.26 cm). The height of the chassis is 3.47 inches (8.8 cm). Airflow through the chassis is from front to
back.
Note
Make sure the rack is stabilized.Caution
Step 1
(Optional) Install a shelf in the rack to support the Cisco ASR 1002-F Router. If you are using a shelf, raise the chassis
to the level of the shelf. Let the bottom of the chassis rest on the brackets, but continue to support the chassis. Lift the
chassis into the rack, grasping underneath the power supply bays.
Step 2
Position the chassis until the rack-mounting flanges are flush against the mounting rails on the rack.
Use the second hole up from the bottom of the rack-mount bracket and the second hole down from the top of
the rack-mount bracket. This will make it easier to attach the cable-management brackets to the chassis in the
equipment rack.
Note
Step 3
Hold the chassis in position against the mounting rails while the second person finger-tightens a screw to the rack rails
on each side of the chassis.
Step 4
Tighten the screws to the rack rails on each side of the chassis.
Step 5
Tighten all the screws on each side to secure the chassis to the equipment rack.

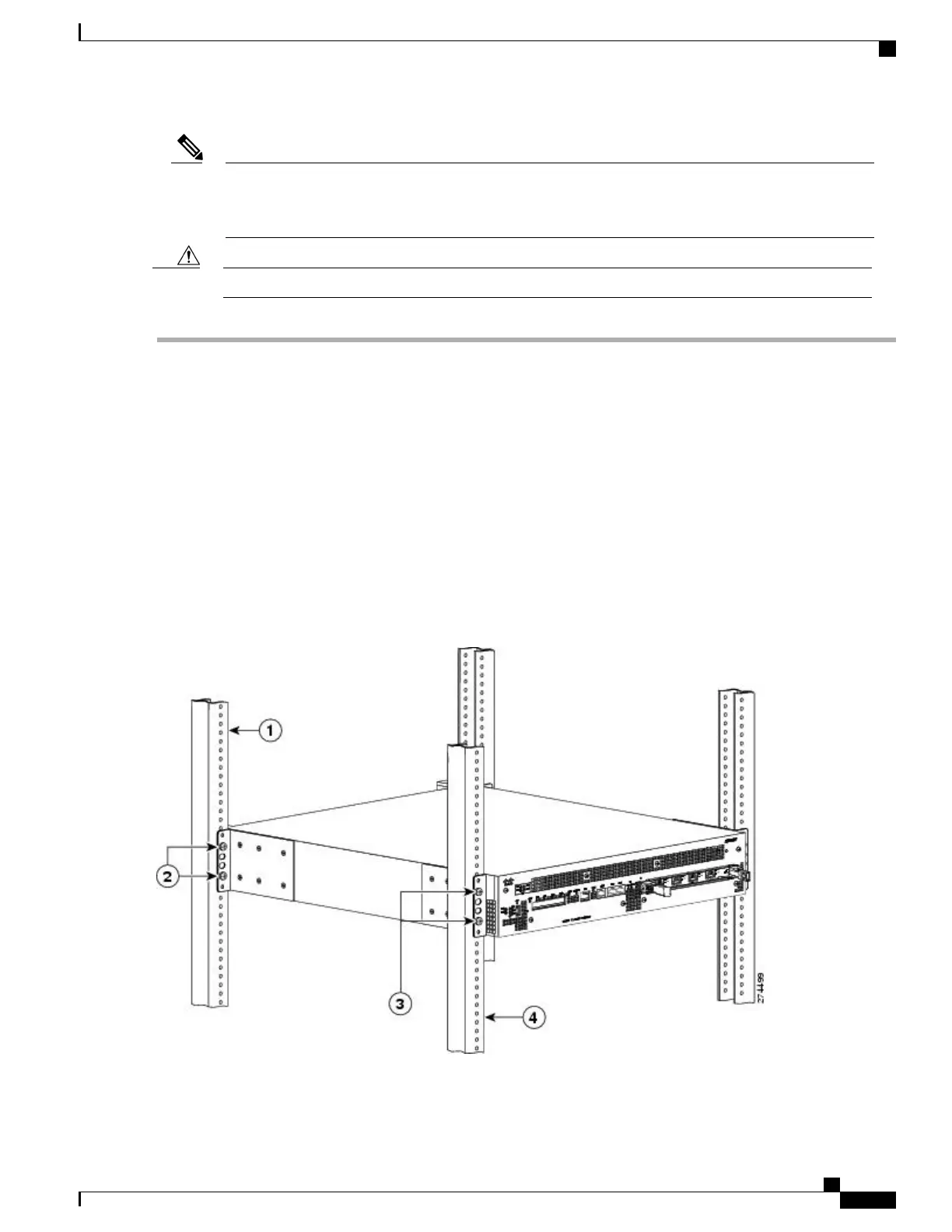

The following figure shows the Cisco ASR 1002-F Router on a four-post rack.
Figure 130: Installing the Cisco ASR 1002-F Router on a Four-Post Equipment Rack
Cisco ASR 1000 Series Router Hardware Installation Guide
299
Cisco ASR 1002-F Router Overview and Installation
Four-Post Rack Installation
