Cisco ASR 1013 Hardware Installation Guide

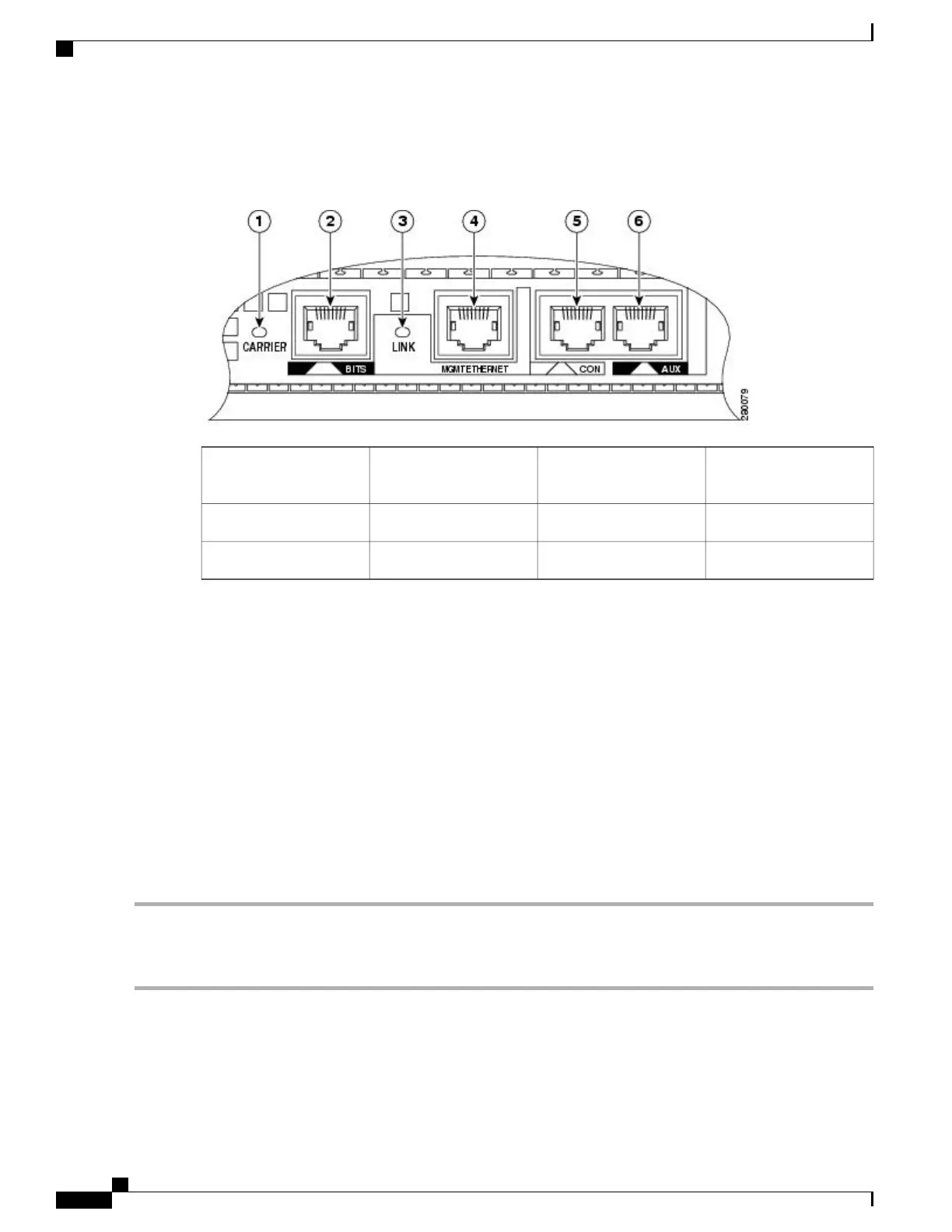

Figure 188: Cisco ASR 1000 Series Route Processor Faceplate Connectors
MGMT Ethernet
connector
4CARRIER LED1
CON connector5BITS connector2
AUX connector6LINK LED3
The Cisco ASR 1013 Router uses RJ-45 ports for both the auxiliary port and the console port. Both the console
and the auxiliary ports are asynchronous serial ports; any devices connected to these ports must be capable
of asynchronous transmission.
For console and auxiliary port pinouts for the RJ-45 connector, see the “Cisco ASR 1000-RP1 Pinout
Specifications” section on page B-1 . Both ports are configured as asynchronous serial ports.
SUMMARY STEPS
1.
Before connecting a terminal to the console port, configure the terminal to match the chassis console port
as follows: 9600 baud, 8 data bits, no parity, 1 stop bits (9600 8N1).
2.
After you establish normal router operation, you can disconnect the terminal.
DETAILED STEPS
Step 1
Before connecting a terminal to the console port, configure the terminal to match the chassis console port as follows:
9600 baud, 8 data bits, no parity, 1 stop bits (9600 8N1).
Step 2
After you establish normal router operation, you can disconnect the terminal.
