Cisco ASR 1013 Hardware Installation Guide

SUMMARY STEPS
1.
Locate the threaded holes on the side of the chassis. Make certain that you hold the front rack-mount
bracket with the ear and holes facing outward and towards the front of the chassis.
2.
Position the front rack-mount bracket top hole with the chassis first top hole behind the side vent holes.
3.
Insert and tighten the black screws on one side.
4.
Repeat Step 1 through Step 3 on the other side of the chassis. Use black screws to secure the rack-mount
brackets to the chassis.
DETAILED STEPS
Step 1
Locate the threaded holes on the side of the chassis. Make certain that you hold the front rack-mount bracket with the
ear and holes facing outward and towards the front of the chassis.

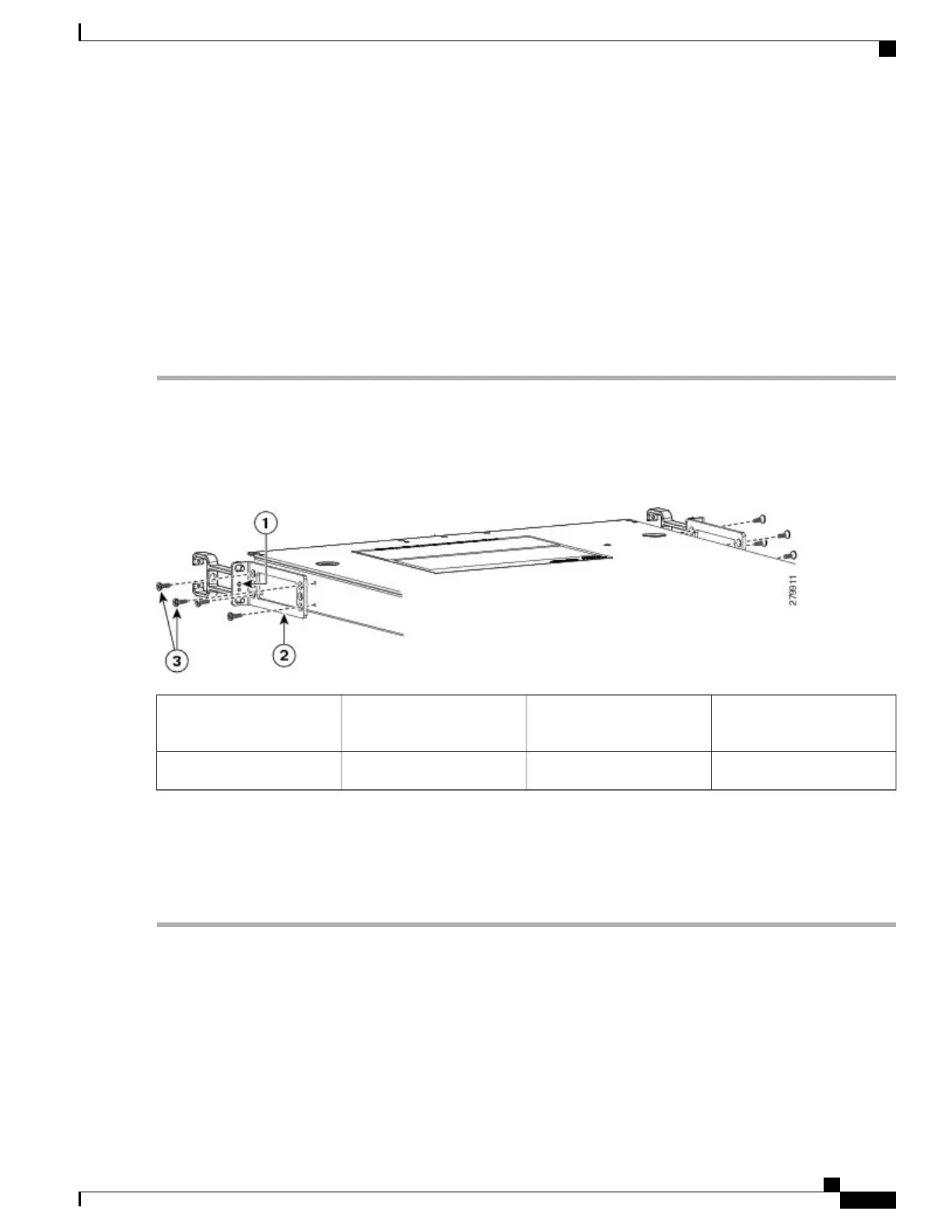

The following image shows where to attach the front rack-mount brackets to the Cisco ASR 1001 Router.
Figure 209: Attaching the Front Rack-Mount Brackets to the Cisco ASR 1001 Router
Front rack-mount bracket
screws
3Front rack-mount bracket ear
and holes
1
——
Front rack-mount bracket2
Step 2
Position the front rack-mount bracket top hole with the chassis first top hole behind the side vent holes.
Step 3
Insert and tighten the black screws on one side.
Step 4
Repeat Step 1 through Step 3 on the other side of the chassis. Use black screws to secure the rack-mount brackets to the
chassis.
What to Do Next
This completes the steps for attaching the front rack-mount brackets to the Cisco ASR 1001 Router.
Cisco ASR 1000 Series Router Hardware Installation Guide
431
Cisco ASR 1001 Router Overview and Installation
Chassis Front Rack-Mount Brackets
