The following figure shows the Cisco ASR1000-RP1 module internal hard drive and module base.

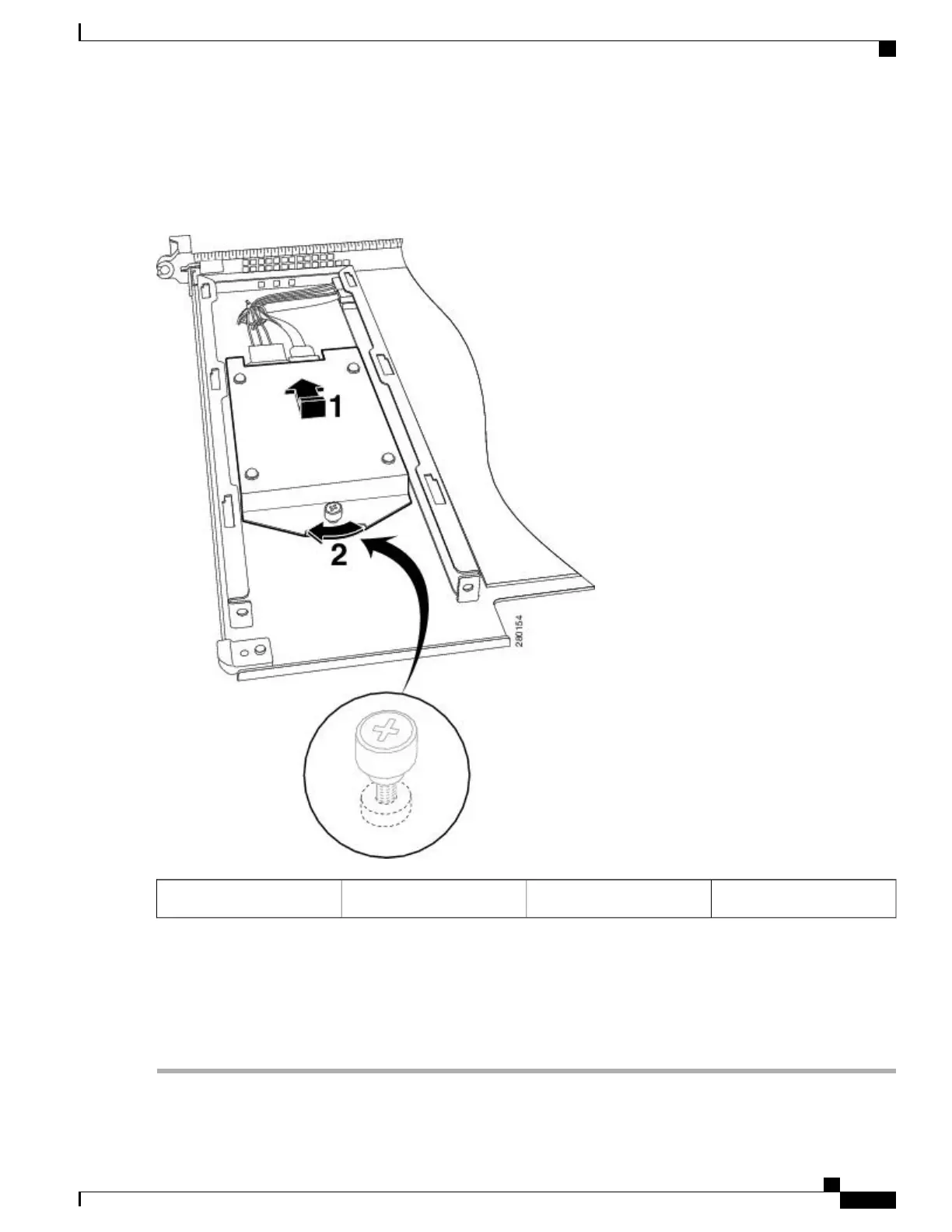

Figure 231: Cisco ASR1000-RP1 Module Internal Hard Drive and Module Base
Carrier mating fastener2Hard drive module fastener1
Step 3
Align hard drive module to carrier base tabs, align the module fastener to base screw mate by hand, and then tighten
with screw driver.
Step 4
Replace the cover by aligning the tabs in the slot and tightening the screw fasteners.
Step 5
With two hands, grab the handles on the Cisco ASR1000-RP1 module and slide it back into its slot in the Cisco ASR
1000 Series Router and tighten the captive screw.
Cisco ASR 1000 Series Router Hardware Installation Guide
483
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR1000-RP1 Module Internal Hard Drive
