Cisco ASR 1013 Hardware Installation Guide

The following figure shows the DC power supply terminal block and plastic cover.

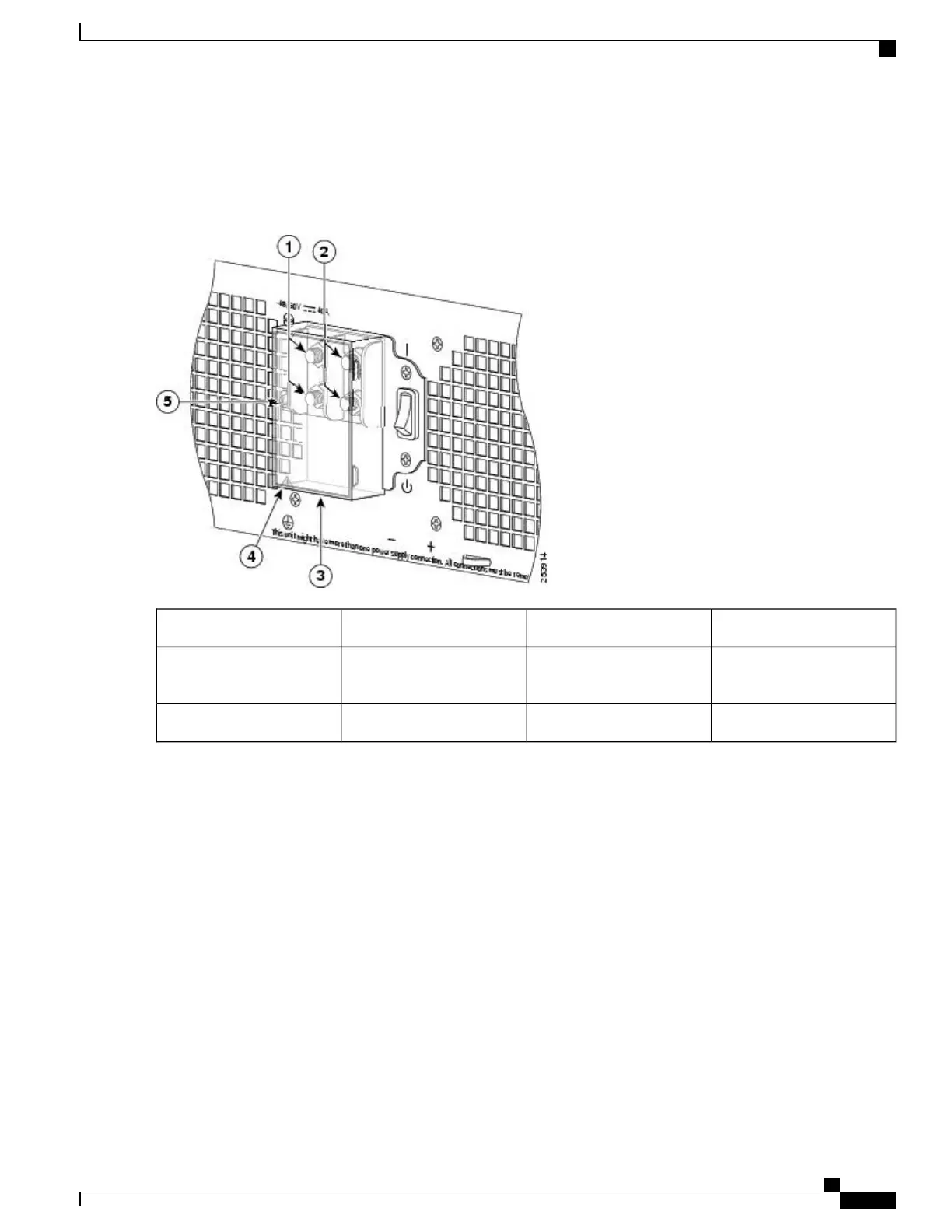

Figure 295: Cisco ASR 1013 Router DC Power Supply Terminal Block and Plastic Cover
Plastic cover slotted area4Negative terminal1
Terminal block plastic cover
single screw
5Positive terminal2
——
Terminal block plastic cover3
Step 5
Remove the slotted plastic cover from the terminal block (see xref fig).
a) Loosen and remove the single screw on the plastic cover. The plastic cover has slots that help to slide it out diagonally
from the terminal block.
b) Using a nut driver (7/16 size), unsrew the positive kepnut, positive cable, and the flat washer, in that order. The
terminal block houses two double-hole barrel lugs.
Cisco ASR 1000 Series Router Hardware Installation Guide
593
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing a DC Power Supply in Cisco ASR 1013 Router
