Chapter 3 Switch Installation
Installing and Removing XENPAK Modules
3-50
Catalyst 3750 Switch Hardware Installation Guide
78-15136-03
Step 5 Grasp the edges of the XENPAK module, and carefully slide it out of the slot, as
shown in Figure 3-43.

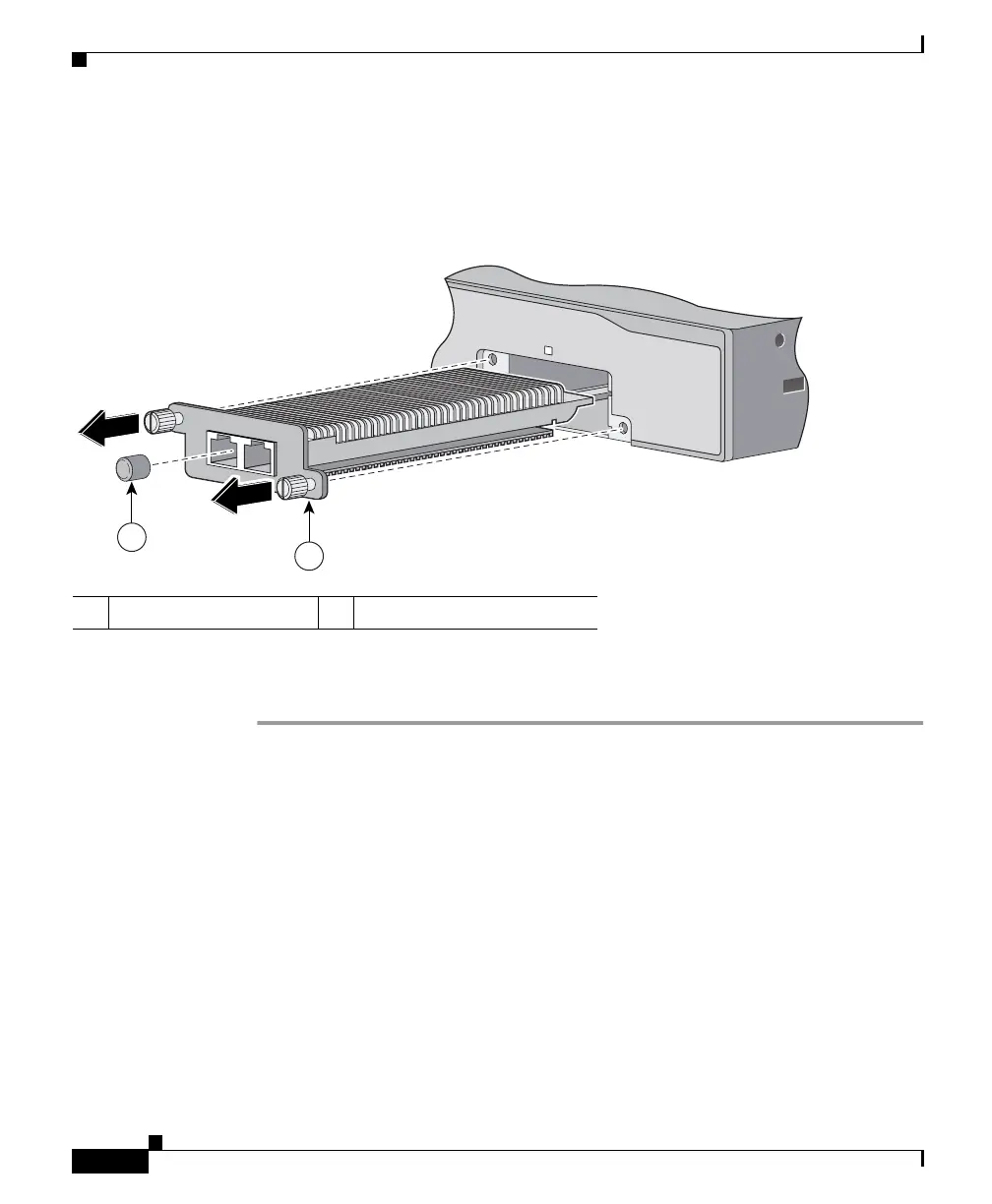

Figure 3-43 Removing a XENPAK Module
Step 6 Use two Phillips-head screws to attach the XENPAK module slot cover to the
switch front panel, as shown in Figure 3-44.
1 Optical bore dust plug 2 Captive installation screw
Catalyst 3750
series
104574
2
1
TX
RX
1
