Cisco Catalyst 3750 Hardware Installation Guide

1-9
Catalyst 3750 Switch Hardware Installation Guide
78-15136-03
Chapter 1 Using Express Setup
Starting Express Setup

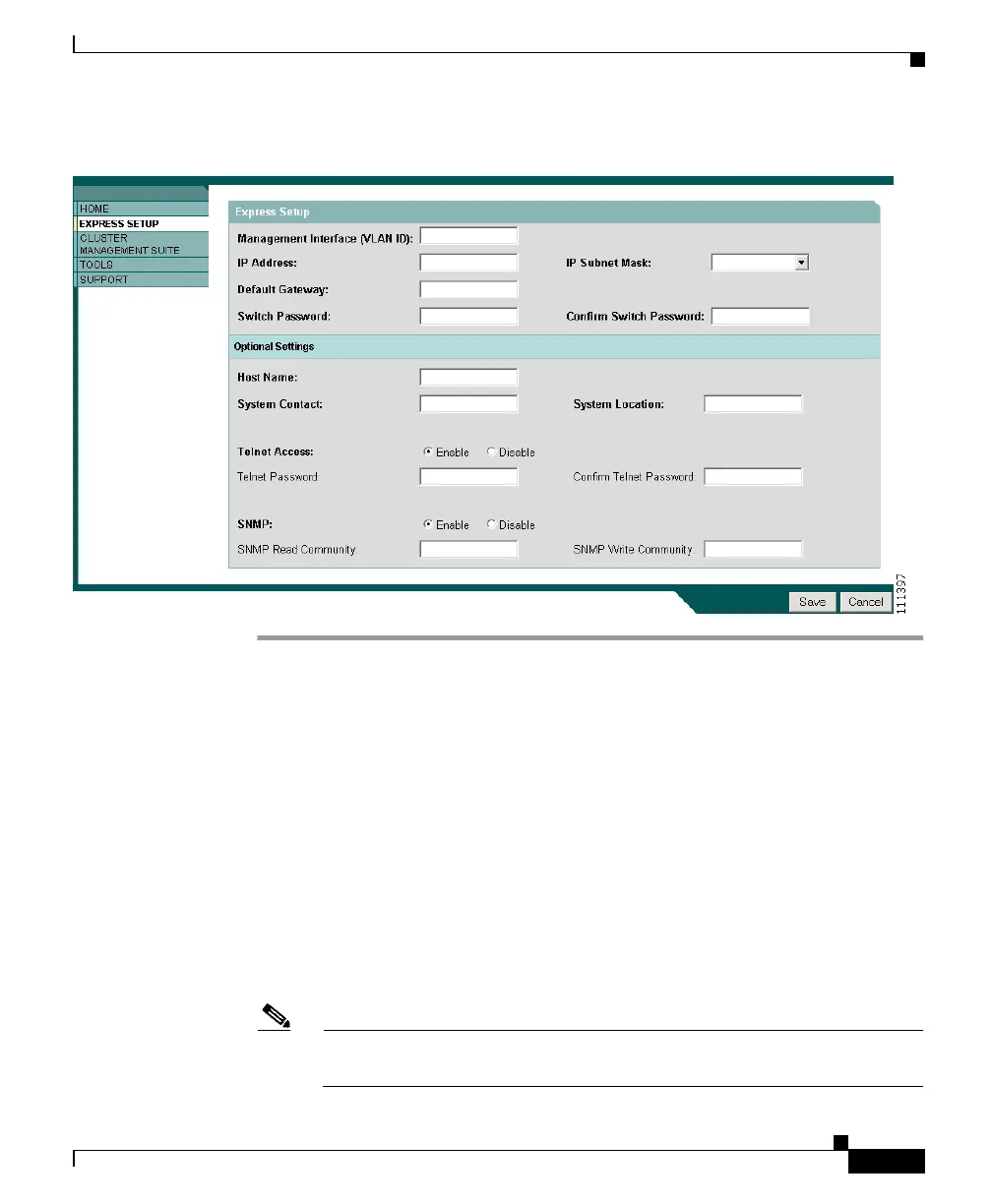

Figure 1-8 Express Setup Home Page
If the Express Setup does not run, or the Express Setup home page does not appear
in your browser:
• Did you wait 30 seconds after connecting the switch and PC or workstation
before entering the IP address in your browser?
If not, wait 30 seconds, and re-enter 10.0.0.1 in the browser, and press Enter.
• Did you enter the wrong address in the browser, or is there an error message
displayed in the browser window?
Re-enter 10.0.0.1 in the browser, and press Enter.
• Did you connect a crossover instead of a straight-through Ethernet cable
between an Ethernet port of the switch and the Ethernet port of the PC or
workstation?
Note See the “Identifying a Crossover Cable” section on page B-8 for
instructions on identifying a crossover cable.

Cisco Catalyst 3750 Specifications

General

Device Type	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
RAM	128 MB
Jumbo Frame Support	Yes
Switch Type	Managed
Model	Catalyst 3750 Series
Uplink Interfaces	SFP
Form Factor	Rack-mountable
MAC Address Table Size	12, 000 entries
Routing Protocol	RIP, OSPF, EIGRP
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Layer 3 switching, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology
Power over Ethernet (PoE)	PoE
Operating Temperature	-5 - 45 °C
Operating Humidity	10% to 85% non-condensing
