Chapter 2 Product Overview
Front Panel Description
2-14
Catalyst 3750 Switch Hardware Installation Guide
78-15136-03

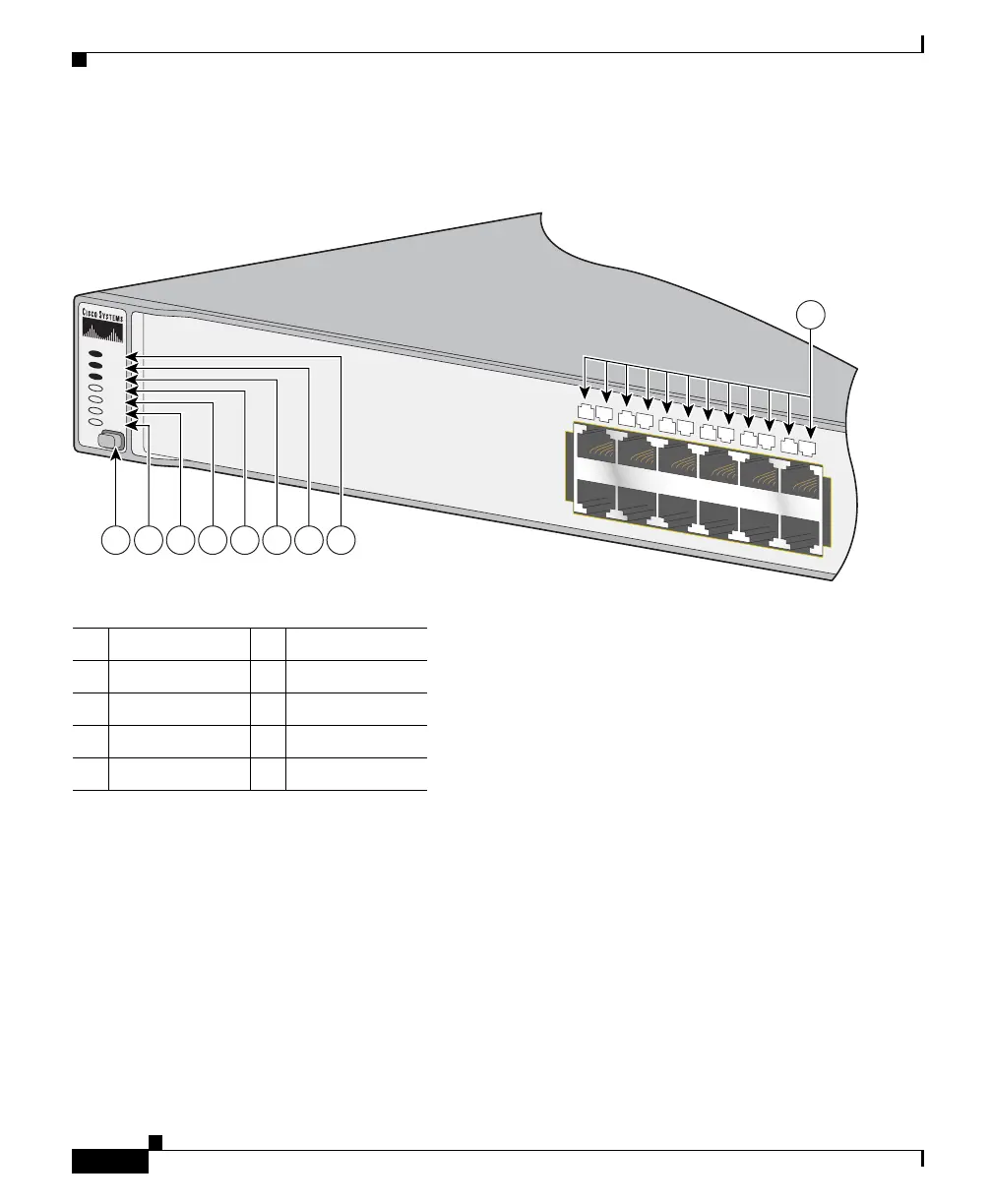

Figure 2-9 Catalyst 3750-24TS, 3750G-24T, 3750G-12S, 3750G-16TD, 3750-48TS, and 3750G-24TS
LEDs
1 Mode button 6 Master LED
2 Stack LED 7 RPS LED
3 Speed LED 8 System LED
4 Duplex LED 9 Port LED
5 Status LED
SYST
RPS
MASTR
STAT
DUPLX
SPEED
STACK
MODE
1X
2X
11X
12X
1
2
3
4
5
6
7
8
9
10
11
12
86545
2 3 4 5 6 7 81
9
