Planning the Stack
3-16
Catalyst 3750 Switch Hardware Installation Guide
78-15136-03

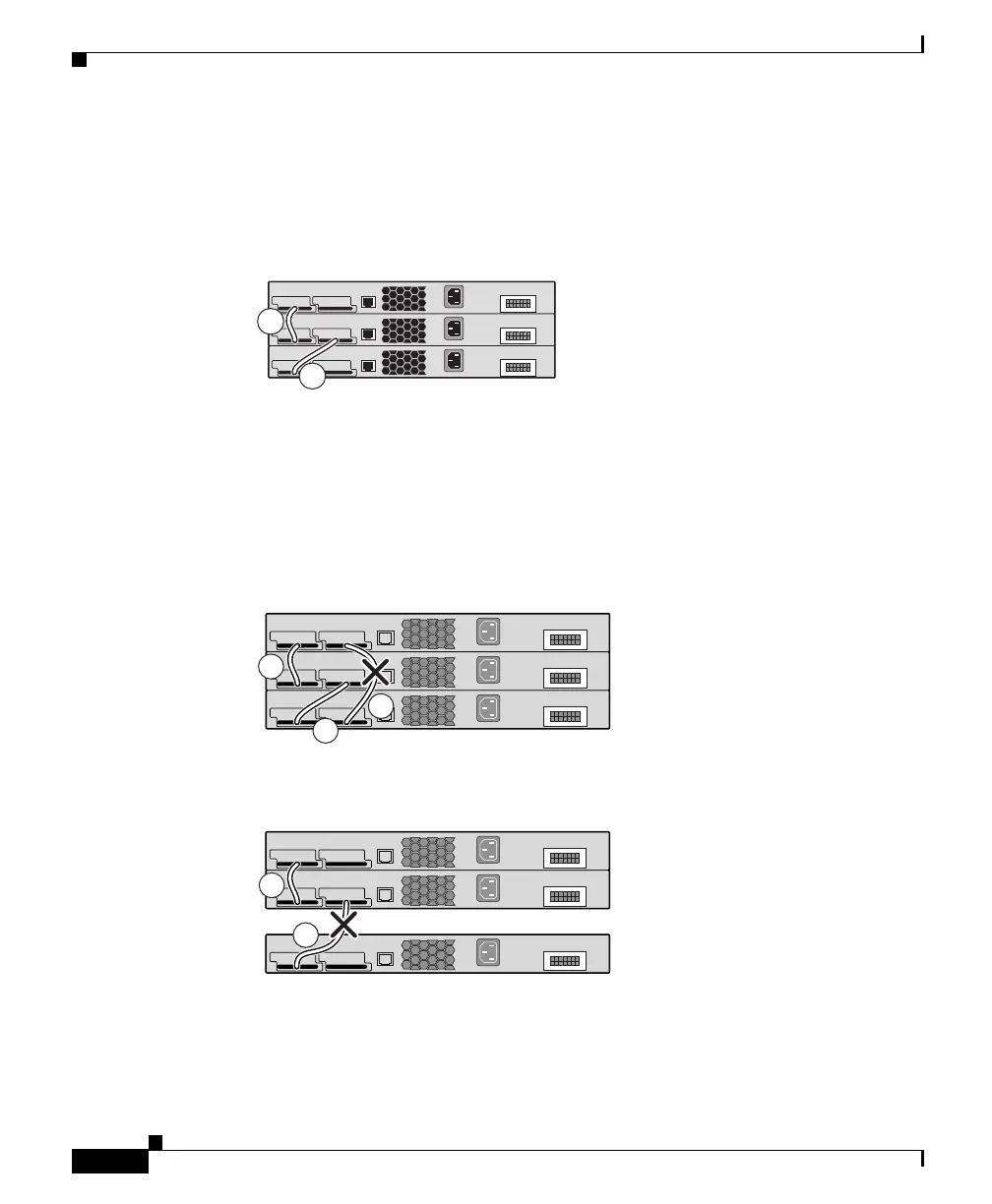

Figure 3-3 shows an example of a stack of Catalyst 3750 switches with
incomplete StackWise cabling connections. This stack provides only half
bandwidth and does not have redundant connections.
Figure 3-3 Example of a Stack with Half Bandwidth Connections
Figure 3-4 and Figure 3-5 show examples of stacks of Catalyst 3750 switches
with failover conditions. In Figure 3-4, the StackWise cable is bad in link B;
therefore, this stack provides only half bandwidth and does not have redundant
connections. In Figure 3-5, link B is bad; therefore, this stack partitions into two
stacks, and switch 1 and switch 3 are stack masters.
Figure 3-4 Example of a Stack with a Failover Condition
Figure 3-5 Example of a Partitioned Stack with a Failover Condition
86823
A
B
86822
A
B
C
86824
A
B

Cisco Catalyst 3750 Specifications

General

Device Type	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
RAM	128 MB
Jumbo Frame Support	Yes
Switch Type	Managed
Model	Catalyst 3750 Series
Uplink Interfaces	SFP
Form Factor	Rack-mountable
MAC Address Table Size	12, 000 entries
Routing Protocol	RIP, OSPF, EIGRP
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Layer 3 switching, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology
Power over Ethernet (PoE)	PoE
Operating Temperature	-5 - 45 °C
Operating Humidity	10% to 85% non-condensing
