Chapter 3 Switch Installation
Planning the Stack
3-18
Catalyst 3750 Switch Hardware Installation Guide
78-15136-03

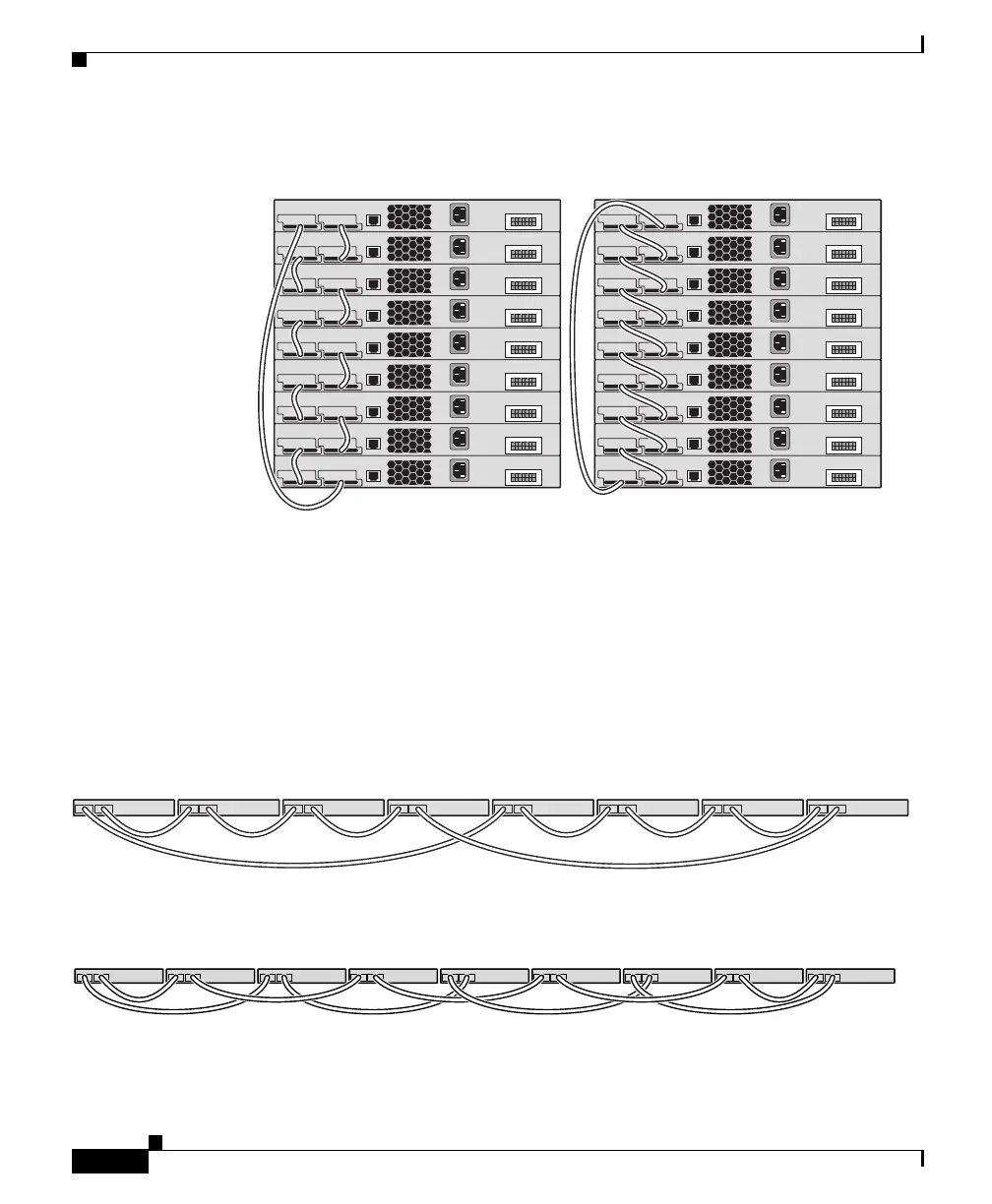

Figure 3-7 Stacking the Catalyst 3750 Switches in a Vertical Rack or on a Table
Using 0.5-meter and 3-meter StackWise Cables
Side-by-Side Mounting in a Rack or on a Wall
Figure 3-8 and Figure 3-9 are examples of recommended configurations where
the switches are rack- or wall-mounted side-by-side. Use the 1-meter and 3-meter
StackWise cables to connect the switches. These configuration provide redundant
connections.
Figure 3-8 Stacking up to Eight Switches in a Side-by-Side Mounting Configuration
Figure 3-9 Stacking Nine Switches in a Side-by-Side Mounting Configuration
86585
86825
90532

Cisco Catalyst 3750 Specifications

General

Device Type	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
RAM	128 MB
Jumbo Frame Support	Yes
Switch Type	Managed
Model	Catalyst 3750 Series
Uplink Interfaces	SFP
Form Factor	Rack-mountable
MAC Address Table Size	12, 000 entries
Routing Protocol	RIP, OSPF, EIGRP
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Layer 3 switching, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology
Power over Ethernet (PoE)	PoE
Operating Temperature	-5 - 45 °C
Operating Humidity	10% to 85% non-condensing
