Chapter 14 Configuring Layer 3 Virtualization
Licensing Requirements for VRFs
Filtering
Filtering allows you to limit the type of information that goes to a VRF-aware service based on the VRF.
For example, you can configure a syslog server to support a particular VRF. Figure 14-4 shows two
syslog servers with each server supporting one VRF. syslog server A is configured in VRF Red, so Cisco
NX-OS sends only system messages generated in VRF Red to syslog server A.

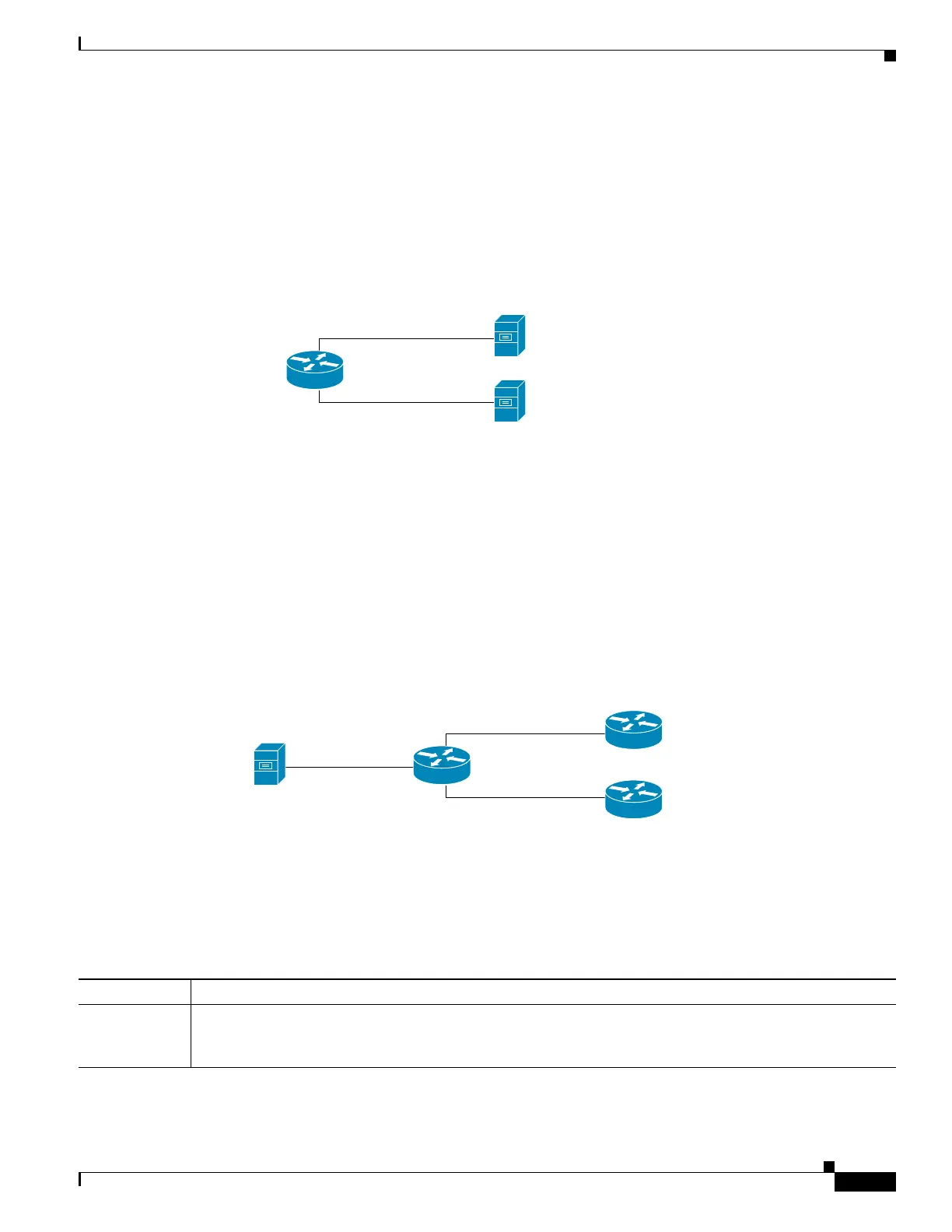

Figure 14-4 Service VRF Filtering
Combining Reachability and Filtering
You can combine reachability and filtering for VRF-aware services. You configure the VRF that Cisco
NX-OS uses to connect to that service as well as the VRF that the service supports. If you configure a
service in the default VRF, you can optionally configure the service to support all VRFs.
Figure 14-5 shows an SNMP server that is reachable on the management VRF. You can configure the
SNMP server to support only the SNMP notifications from VRF Red, for example.
Figure 14-5 Service VRF Reachability Filtering
Licensing Requirements for VRFs
The following table shows the licensing requirements for this feature:
186418
Router A
Ethernet 2/1
VRF Red
Ethernet 2/2
VRF Blue
Syslog Server A
Syslog Server B
186419
Router A
Ethernet 2/1
VRF Red
Ethernet 2/2
VRF Blue
Router B
Router C
mgmt0
VRF management
SNMP Server
192.0.2.1
Product License Requirement
NX-OS VRFs require no license. Any feature not included in a license package is bundled with the Cisco NX-OS
system images and is provided at no extra charge to you. For a complete explanation of the NX-OS licensing
scheme, see the Cisco NX-OS Licensing Guide.
