Chapter 5: Configuring Device Interfaces
Defining LAG Settings
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
5

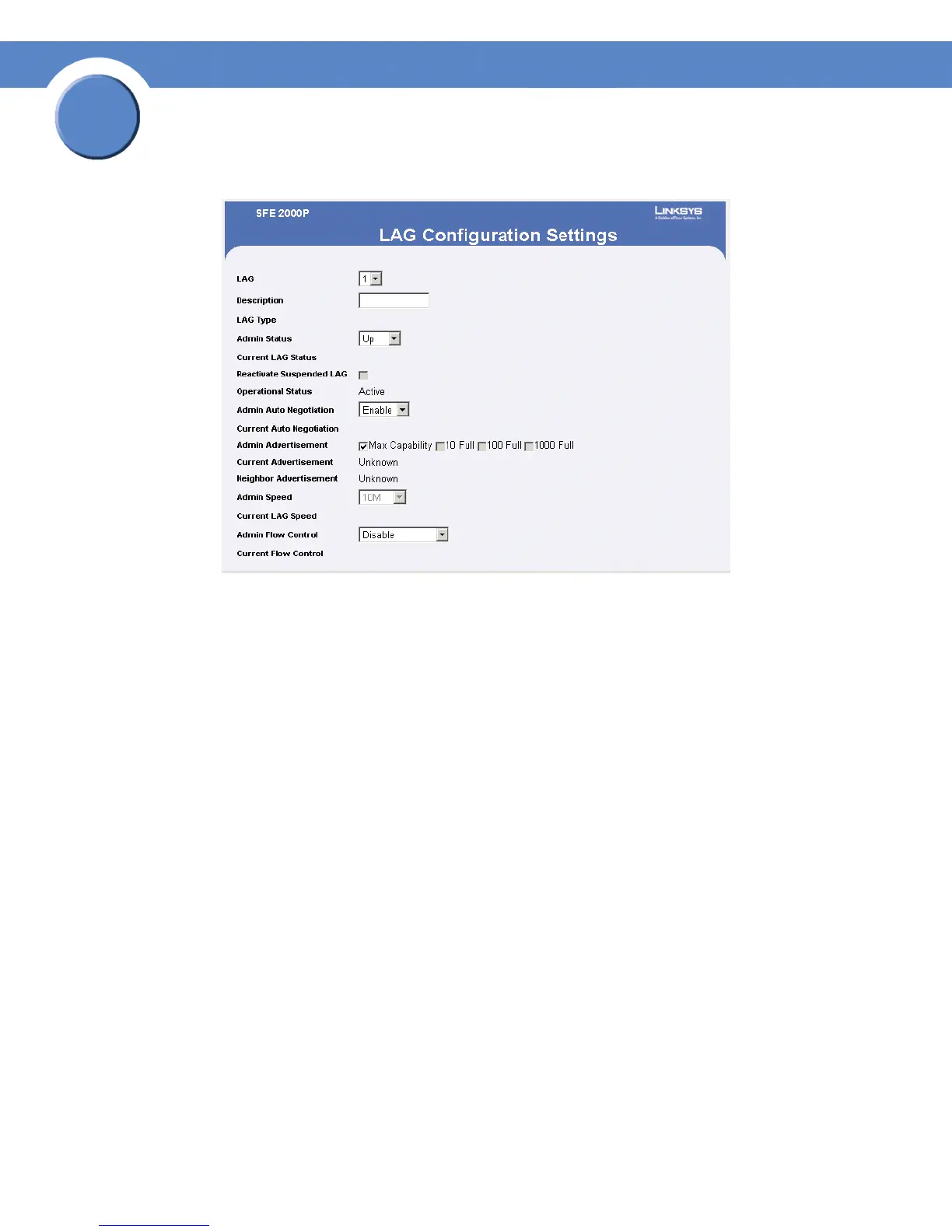

Lag Configuration Settings
The Lag Configuration Settings contains the following fields:
• LAG — Displays the LAG Id number.
• Description — Displays the user-defined port name.
• LAG Type — The port types that comprise the LAG.
• Admin Status — Enables or disables traffic forwarding through the selected LAG.
• Current LAG Status — Indicates if the LAG is currently operating.
• Reactivate Suspended LAG — Reactivates a port if the LAG has been disabled through the locked
port security option.
• Operational Status — Defines whether the LAG is currently operational or non-operational.
• Admin Auto Negotiation — Enables or disables Auto Negotiation on the LAG. Auto-negotiation is
a protocol between two link partners that enables a LAG to advertise its transmission rate, duplex
mode and flow control (the flow control default is disabled) abilities to its partner.
• Current Auto Negotiation — The current Auto Negotiation setting.
• Admin Advertisement — Specifies the capabilities to be advertised by the LAG. The possible field
values are:
– Max Capability — Indicates that all LAG speeds and Duplex mode settings can be accepted.
– 10 Half — Indicates that the LAG is advertising a 10 mbps speed and half Duplex mode
setting.
