Clarke-tech C-Tech One - Rear Panel Description

5
Remote Control & Panel Description

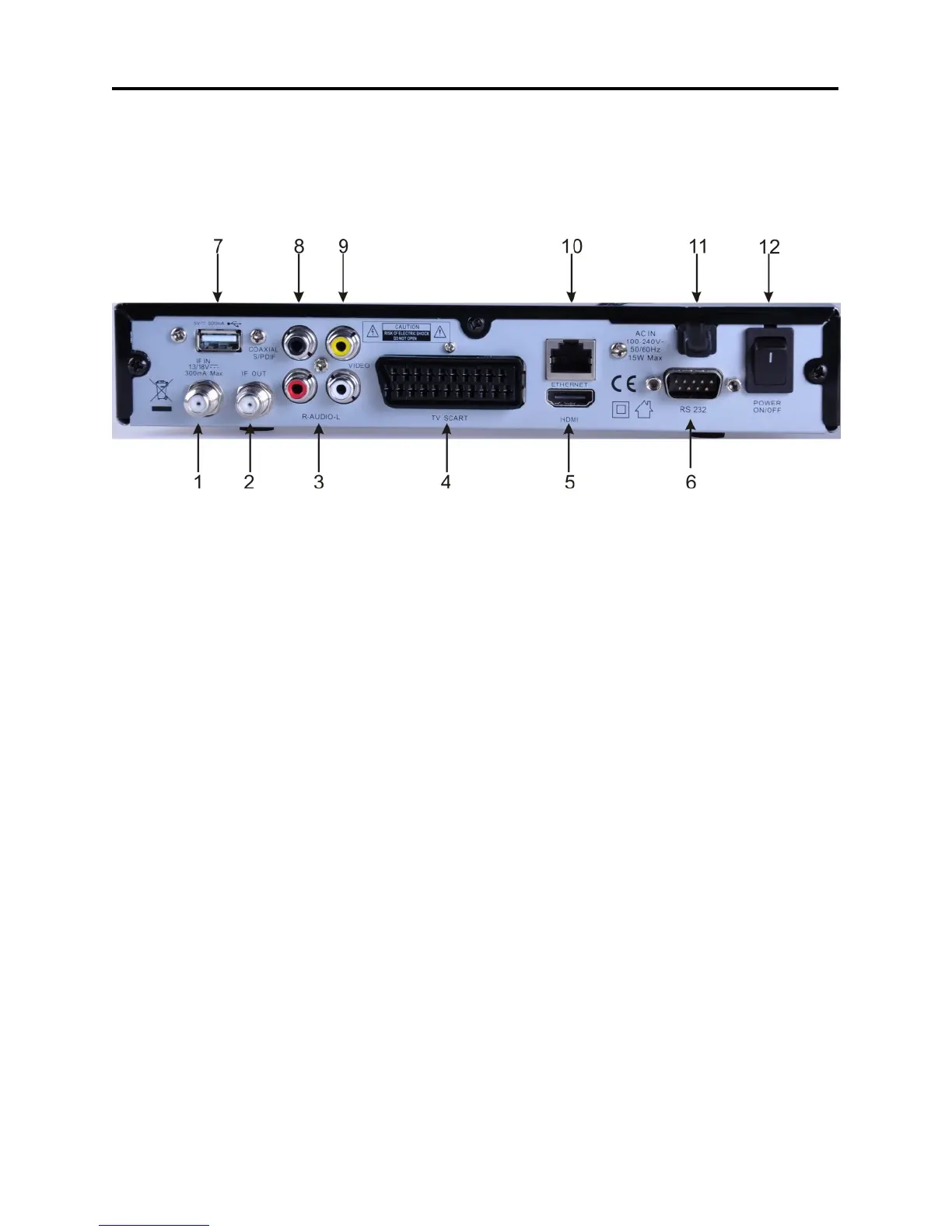

1.2 Rear Panel Description
1. IF IN: Satellite input.
2. IF OUT: Satellite output for cascading to other devices
Note: The operation of another receiver at the same time is only possible with limited
channel selection.
3. AUDIO R/L: HiFi outputs for stereo set.
4. TV-SCART: Output SCART for the connection to a TV set.
5. HDMI: HDMI output for the connection to a TV set.
6. RS-232: Serial Port allowing software upgrades.
7. USB: USB2.0 Host Port.
8. COAXIAL S/PDIF: Coaxial output for digital audio (AC3).
9. VIDEO: CVBS video output for TV AV in.
10. ETHERNET: Connect to the internet using an network cable.
11. AC IN: Mains input cable.
12. POWER ON/OFF: Allows to completely switch off the receiver.
