Note: Changing the E-DANTE64 rear card requires a power down of the matrix. The
front card can be replaced without power-down (hot plugged).
11.7 Upgrading your E-DANTE64-HX card
Upgrades for your E-DANTE64-HX card are available for both EHX and Dante
firmware and are available from your Clear-Com representative.
The upgrade process for each of the two modules on the card (EHX and Dante)
is different. The two processes are outlined below.
Note: When upgrading your E-Dante64 card, only use the Clear-Com supplied
upgrade files for both
(A: EHX) ClearCom - App, Boot, DSP, FPGA: xxxxxx.FWC files
(B: Dante) ClearCom [Brooklyn]: xxxxxx.dnt file.

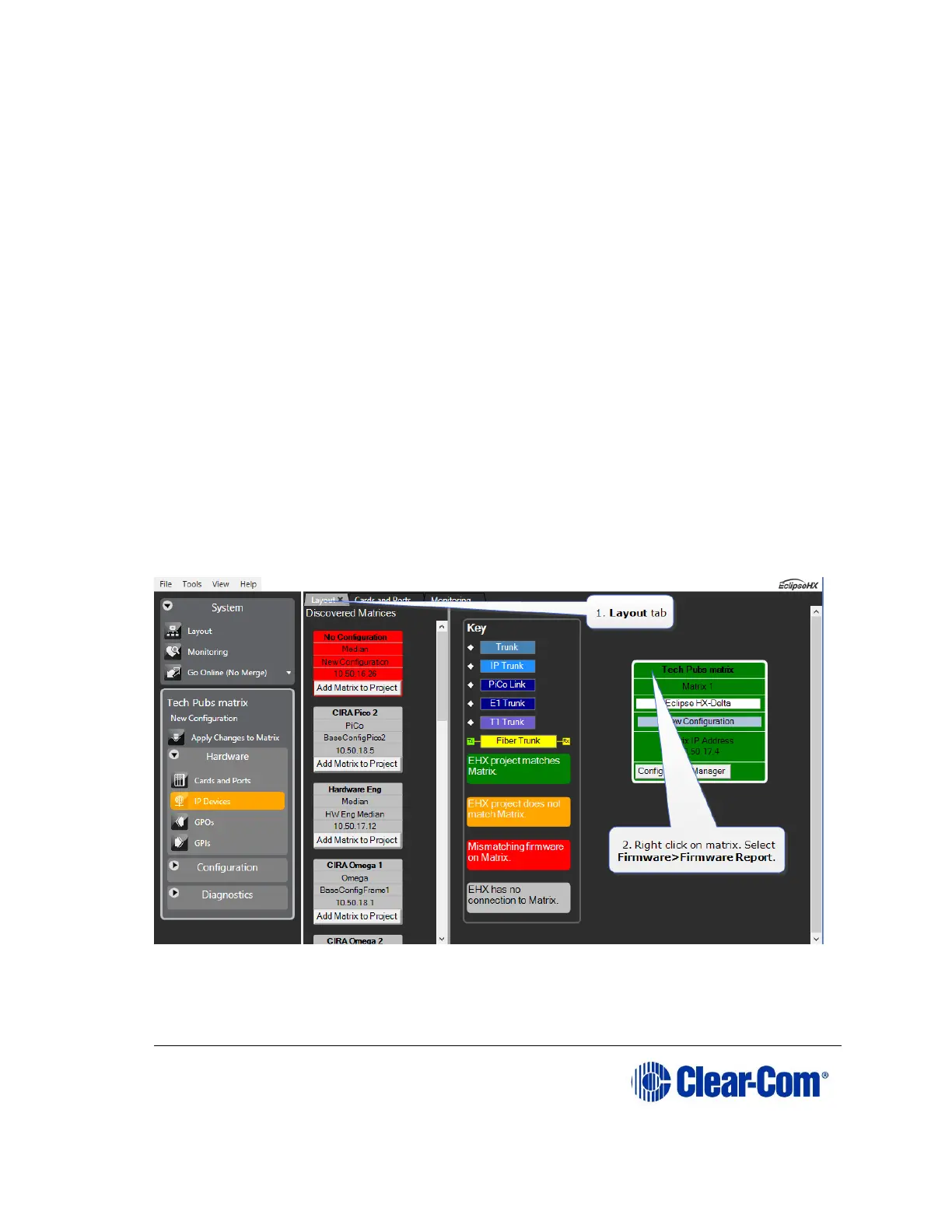

To check if your firmware is up to date, open the Firmware Report in EHX:
1) In the EHX software, navigate to the Layout tab.
2) Right click on the required matrix and select Firmware/Firmware
Report.
11.7.1 Upgrade EHX E-DANTE64 firmware
1) In the EHX software, navigate to the Layout tab.
