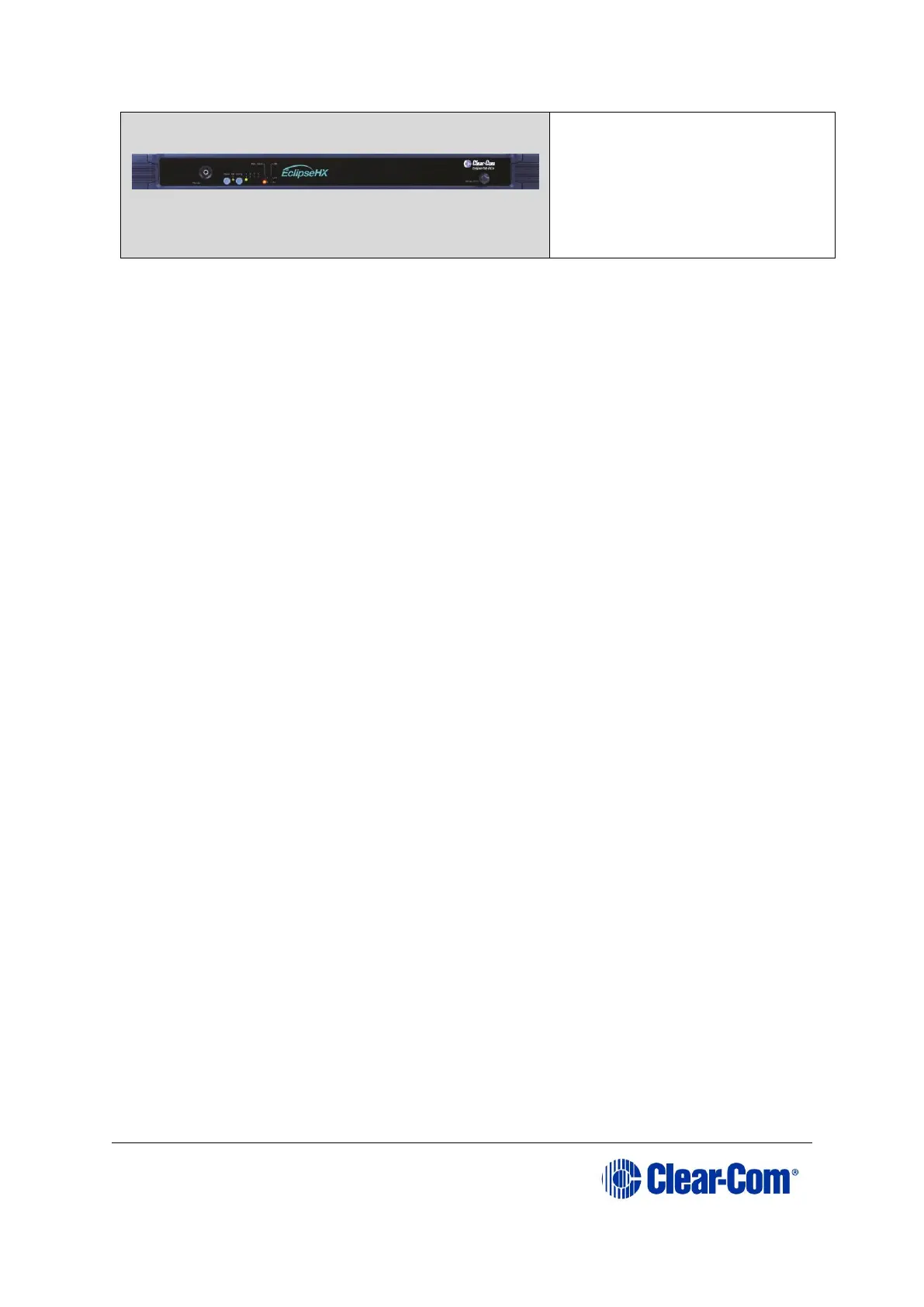

The Eclipse HX-PiCo provides
up to 32 panel and 4 additional
four-wire ports in a one rack
unit (1RU).
For more information, see the
Eclipse HX-PiCo User Guide.
Table 1: Eclipse HX Matrix frames
3.2 Eclipse HX-Median
A complete Eclipse HX-Median system consists of a central matrix and the
remote audio devices (which may include user panels, interface cards, interface
modules, four-wire devices and systems) connected to it.
Note: The term central matrix is used to differentiate the core hardware and software
from the connected user panels and interfaces. The central matrix itself consists
of the matrix hardware (the Eclipse HX-Median matrix frame) and the EHX
configuration software.
3.2.1 Chassis and assembly
The matrix chassis is a metal rectangular box which measures six rack units
(6RU) high and 19-inches wide (26.9 cm x 48.3 cm). The Eclipse HX-Median has
twin power supplies, and slots for 2 CPU cards, 7 interface cards, and 8 interface
modules.
RJ-45 and fiber-optic connectors are located on removable plates on the rear of
the chassis. These connect the circuit cards to intercom devices and media such
as panels, interfaces, four-wire audio equipment, wireless equipment and fiber-
optic cables.
The matrix assembly consists of the following components:
The metal chassis for the circuit cards and power supplies.
The removable and replaceable circuit cards.
The removable and replaceable power supplies.
The rear panel connectors which link the circuit cards to devices and
media such as user panels, interfaces, wireless equipment and optical
fiber.
