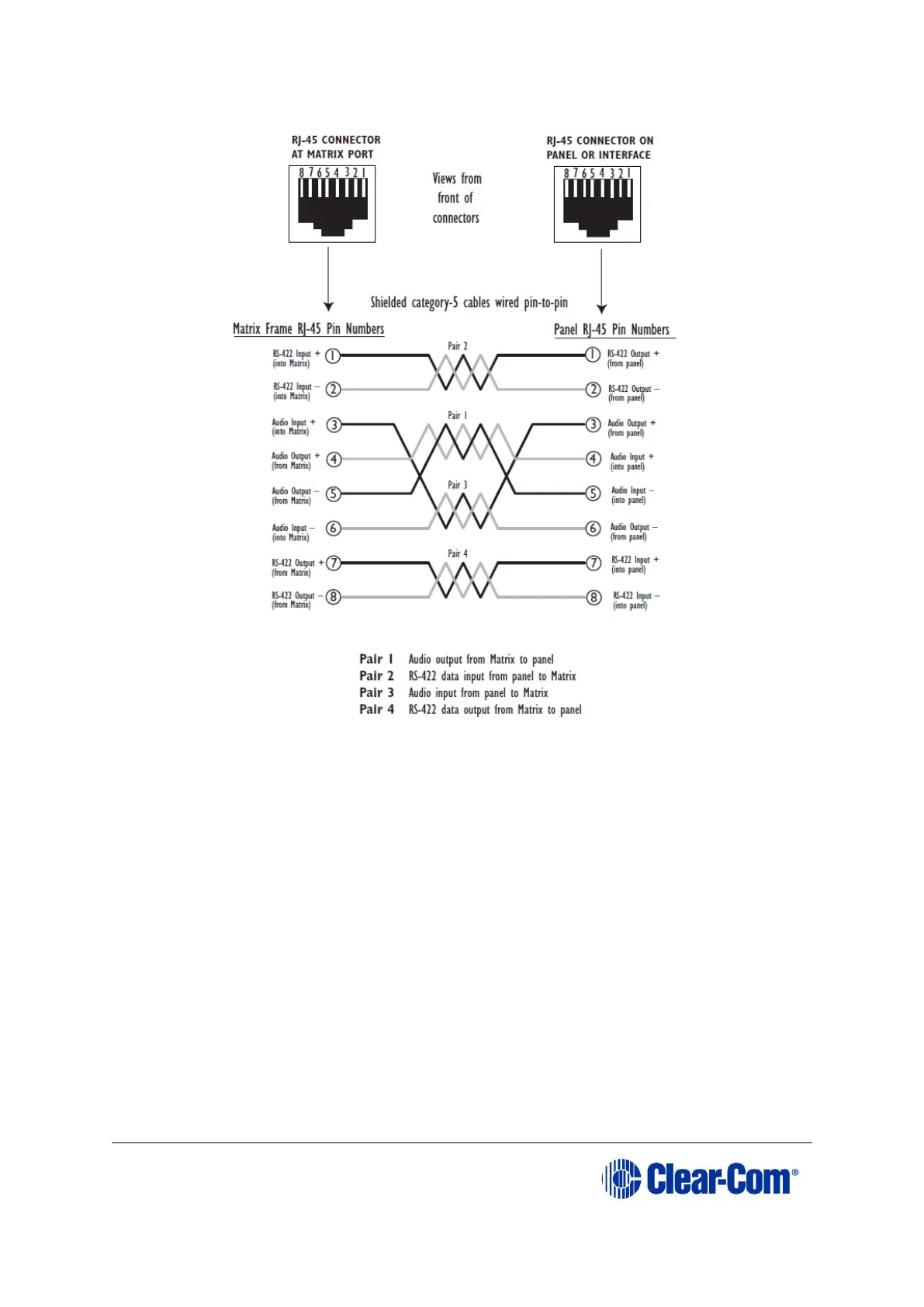

Figure 4-7: Wiring the matrix to an analog panel using RJ-45
4.6.2 Single-pair digital
Single-pair digital wiring is accomplished with double-shielded 24 AWG
conductor CAT-6E enhanced STP cable.
Pair 1 transmits and receives multiplexed digital and analog between the matrix
and the panel.
Ensure that the Select switch on the rear of the panel is in the correct position
for the intended use.
