Page 8 KM3000 KM4000 Operating Manual
• Precision ground quill housing assures smooth operation
• The KM3000 only needs 1.5" (38 mm) of shaft for clamping.
• The KM3000 clamps shafts up to 10.5" (266 mm) diameter with
optional chain clamp
• Slotted V-base allows you to cut right to the end of the shaft
• Zeroing-type adjusting dial for controlling cutter depth

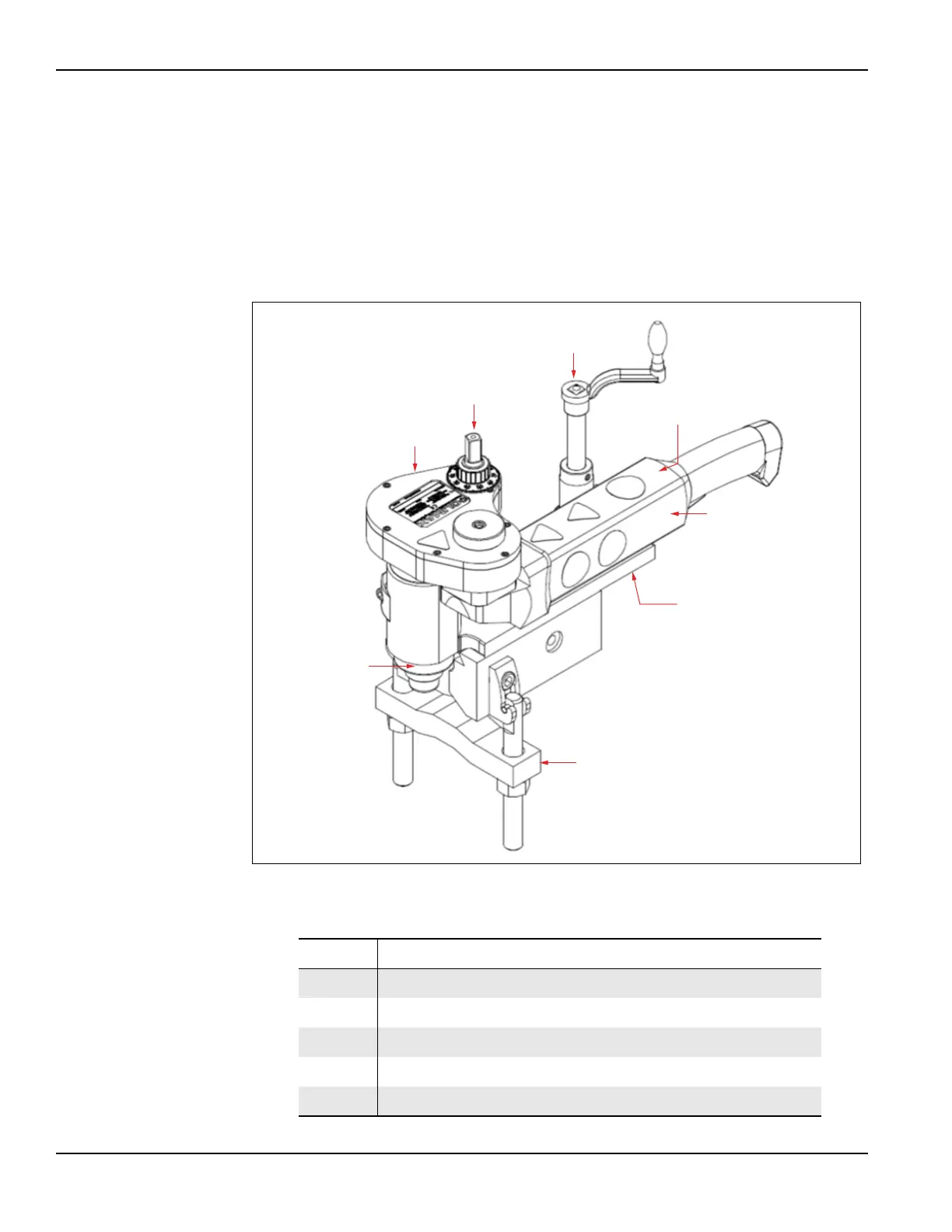

Figure 2-1 shows the KM3000’s main components.
FIGURE 2-1. KM3000 COMPONENTS
TABLE 2-1. KM3000 COMPONENT IDENTIFICATION
Number Component
1 Gearbox
2 Vertical adjustment screw
3 Leadscrew for traverse feed
4 Speed controller
5 Motor
3
4
5
6
7
8
SPINDLE AND
QUILL
MOTOR
SLIDE ASSEMBLY
GEARBOX
VERTICAL
ADJUSTMENT
SCREW
LEADSCREW FOR
TRAVERSE FEED
SPEED CONTROLLER
CLAMPING
MECHANISM
