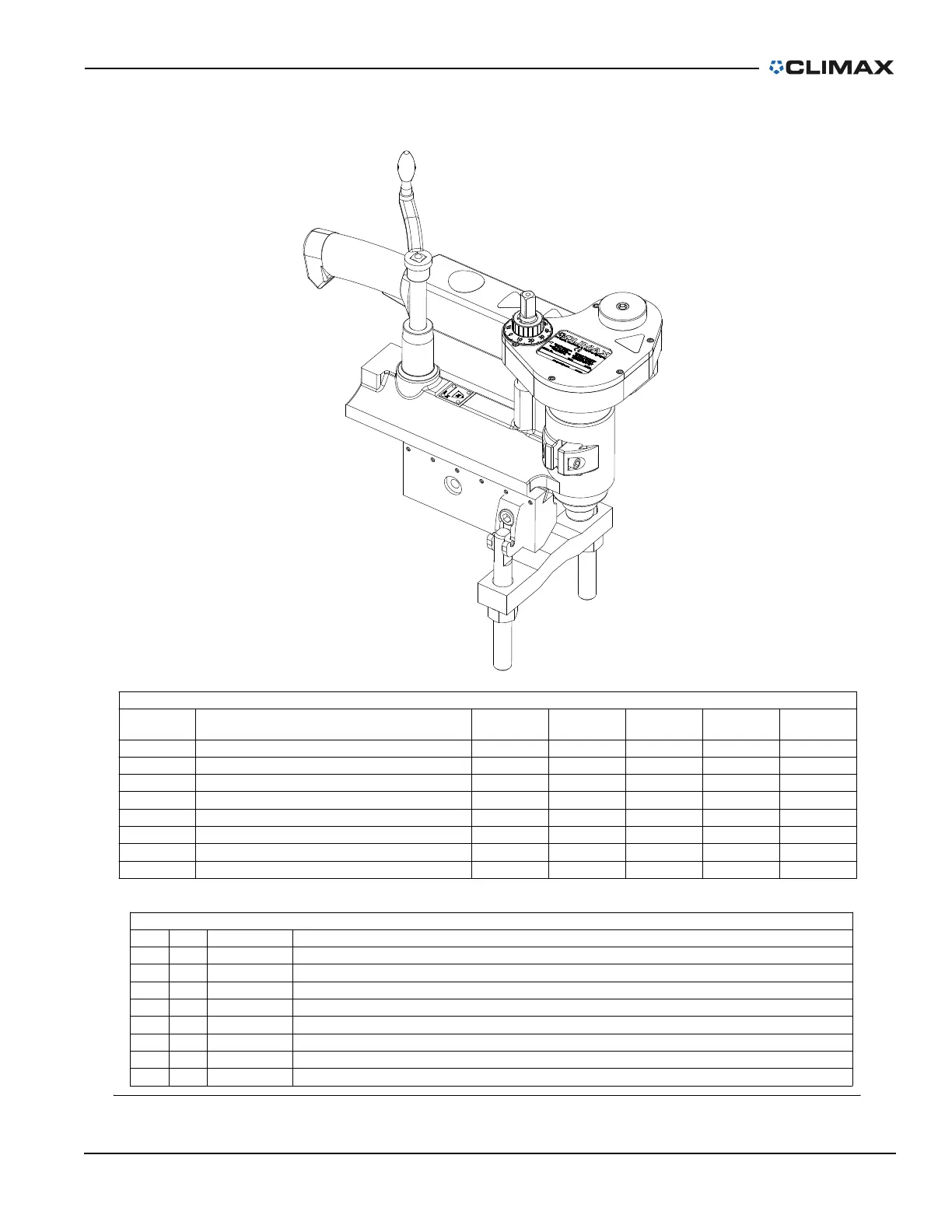

IGURE A-2. KM3000/KM4000 ASSEMBLY CONFIGURATIONS AND PARTS LIST (P/N 103548)
PARTS LIST
DESCRIPTIONP/N:QTY
ITEM
(NOT SHOWN) CRATE 9 X 24 X 11-7/8 KM3000 5/8 PLY HINGED
1601111
(NOT SHOWN) WRENCH HEX SET FOLDING 5/64 - 1/4 9 PCS CLIMAX LOGO
3418112
PLATE SERIAL YEAR MODEL CE 2.0 X 2.63
4675913
ASSY GEAR BOXSEE CHART
14
MOTOR ASSY ELECTRICSEE CHART1
5
ASSY LEADSCREW VERT ADJ 3RD KM3000SEE CHART16
CHART SPINDLE & QUILL ASSYSEE CHART1
7
CHART BASE AND TOP SLIDE ASSY W/ BAR CLAMPSEE CHART18
AVAILABLE CONFIGURATIONS
PART NO.
Description
ITEM 4
GEARBOX
ITEM 5
MOTOR
ITEM 6 LEAD
SCREW
ITEM 7
SPINDLE
ITEM 8 BASE
103468
KM3000 HIGH SPEED GEARBOX 120V INCH
103470 103467 15655 15651 28839
103552
KM3000 HIGH SPEED GEARBOX 230V INCH
103470 103550 15655 15651 28839
103553
KM3000 HIGH SPEED GEARBOX 120V METRIC
103470 103467 16021 16022 30459
103554
KM3000 HIGH SPEED GEARBOX 230V METRIC
103470 103550 16021 16022 30459
103698
KM3000 HIGH TORQUE GEARBOX 120V INCH
103341 103342 15655 15651 28839
103700
KM3000 HIGH TORQUE GEARBOX 230V INCH
103341 103703 15655 15651 28839
103699
KM3000 HIGH TORQUE GEARBOX 120V METRIC
103341 103342 16021 16022 30459
103701
KM3000 HIGH TORQUE GEARBOX 230V METRIC
103341 103703 16021 16022 30459
