P/N 104075, Rev. 0 Page 15
To avoid damaging the power unit pump, connect the hydraulic motor to
the power unit before turning it on.
The end mill turning direction on a hydraulically powered KM3000 depends on
hydraulic line connections (see Figure 2-5).

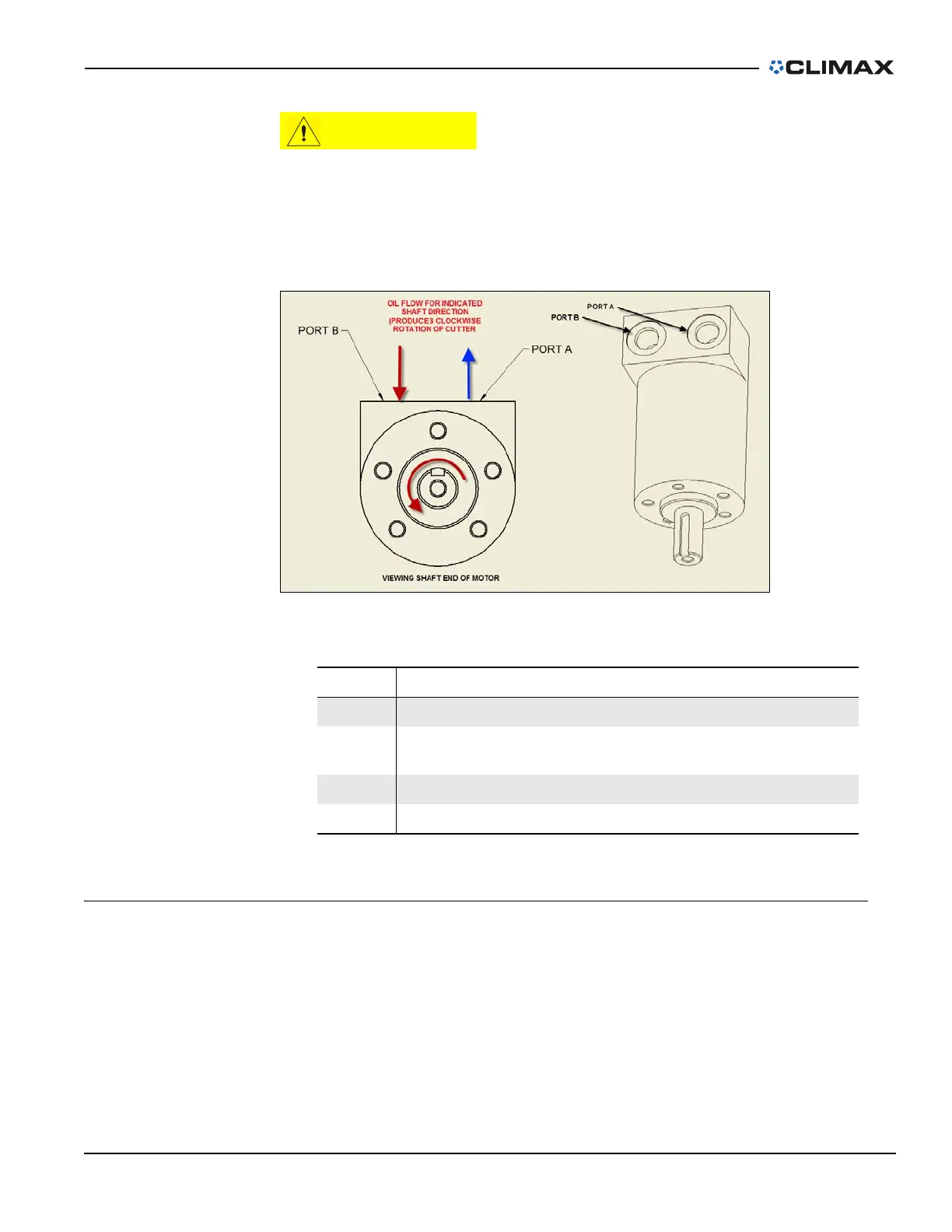

FIGURE 2-5. HPU CONNECTIONS
2.3 KM3000 DIMENSIONS
Figure 2-6 on page 16 show the KM3000 machine and operating dimensions.
TABLE 2-8. HPU CONNECTIONS IDENTIFICATION
Number Component
1 Port B
2
Oil flow for indicated shaft direction (produces clockwise rotation
of cutter)
3 Port A
4 Viewing shaft end of motor
