Climax KM3000 - Igure A-30. Box Gear Assembly (P;N 21022)

P/N 104075, Rev. 0 Page 85
F

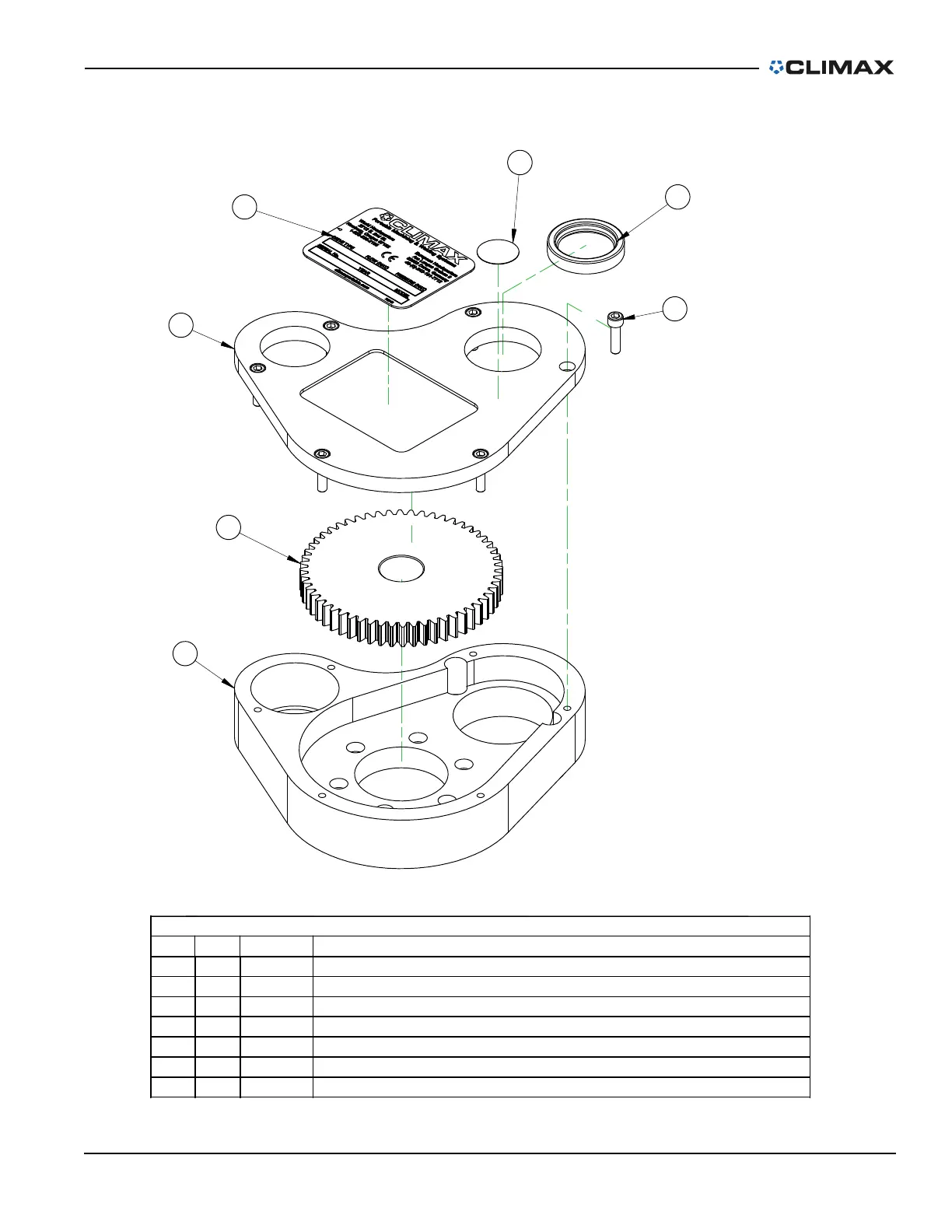

IGURE A-30. BOX GEAR ASSEMBLY (P/N 21022)
PARTS LIST
DESCRIPTIONP/N:QTY
ITEM
SCREW 8-32 X 5/8 SHCS
1015661
SEAL 1.000 ID X 1.375 OD X .250
1016712
GEAR SPUR 16DP 56T 20PA .43 X .97LG STEEL
1551713
GEARBOX 4TH GENERATION KM3000
3428414
GEARBOX COVER KM3000342851
5
PLATE SERIAL YEAR MODEL CE 2.0 X 2.637504816
LABEL WARNING - CONSULT OPERATOR'S MANUAL GRAPHIC .75 DIA 793281
7
1
4
3
5
6
7
2
