Climax KM3000 - Rd Generation Hydraulic Keymill Assembly (P;N 35088)

P/N 104075, Rev. 0 Page 65
F

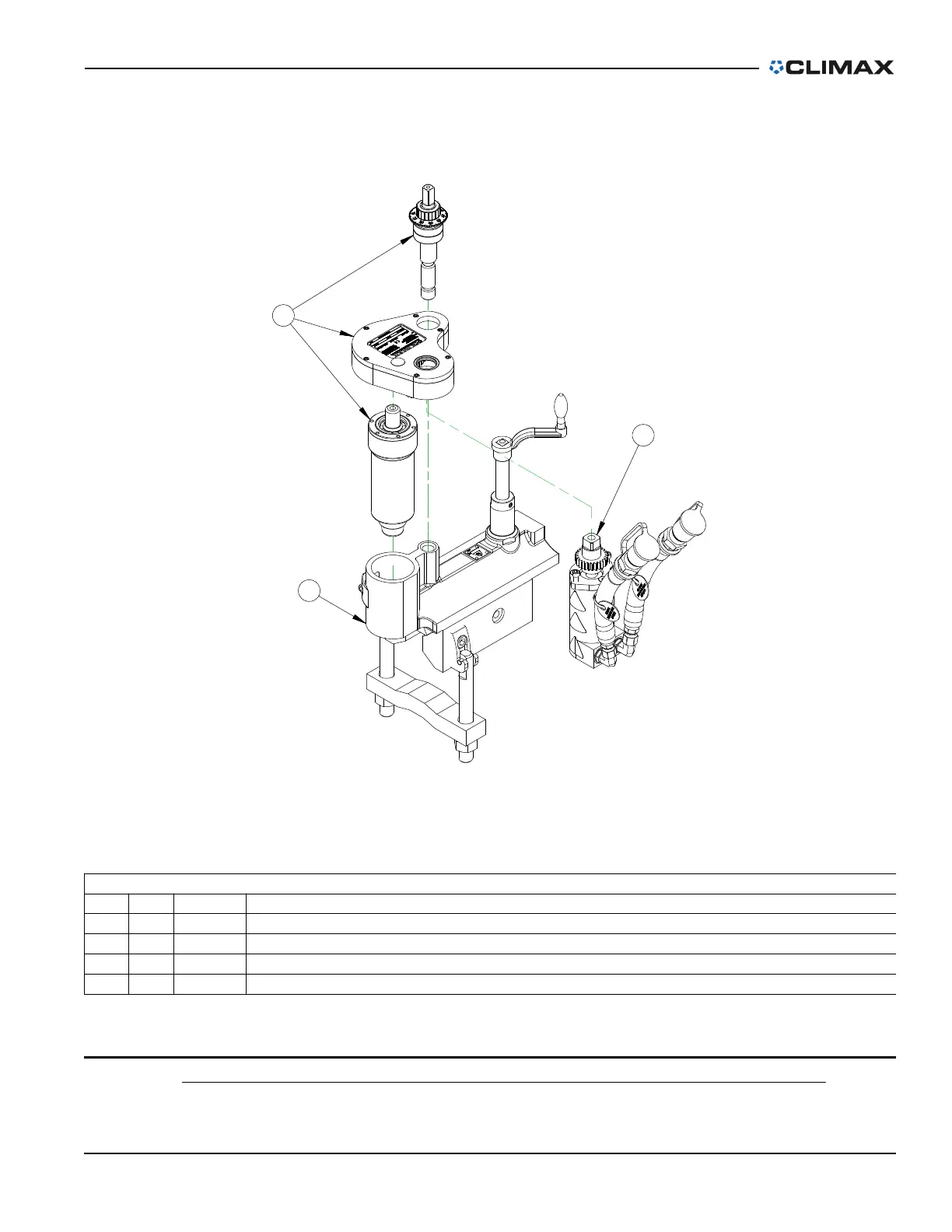

IGURE A-10. 3RD GENERATION HYDRAULIC KEYMILL ASSEMBLY (P/N 35088)
PARTS LIST
DESCRIPTIONP/N:QTYITEM
(NOT SHOWN) CRATE 9 X 24 X 11-7/8 KM3000 5/8 PLY HINGED1601111
ASSY POWER UNIT INCH HYD 274 RPM @ 5 GPM KM3000
2103112
BASE AND TOP SLIDE ASSY W/ BAR CLAMP
2883913
(NOT SHOWN) WRENCH HEX SET FOLDING 5/64 - 1/4 9 PCS CLIMAX LOGO
3418114
35088 - ASSY KEYMILL INCH HYD 274 RPM 3RD GEN GEARBOX - REV B
FOR REFERENCE ONLY
2
2
3
