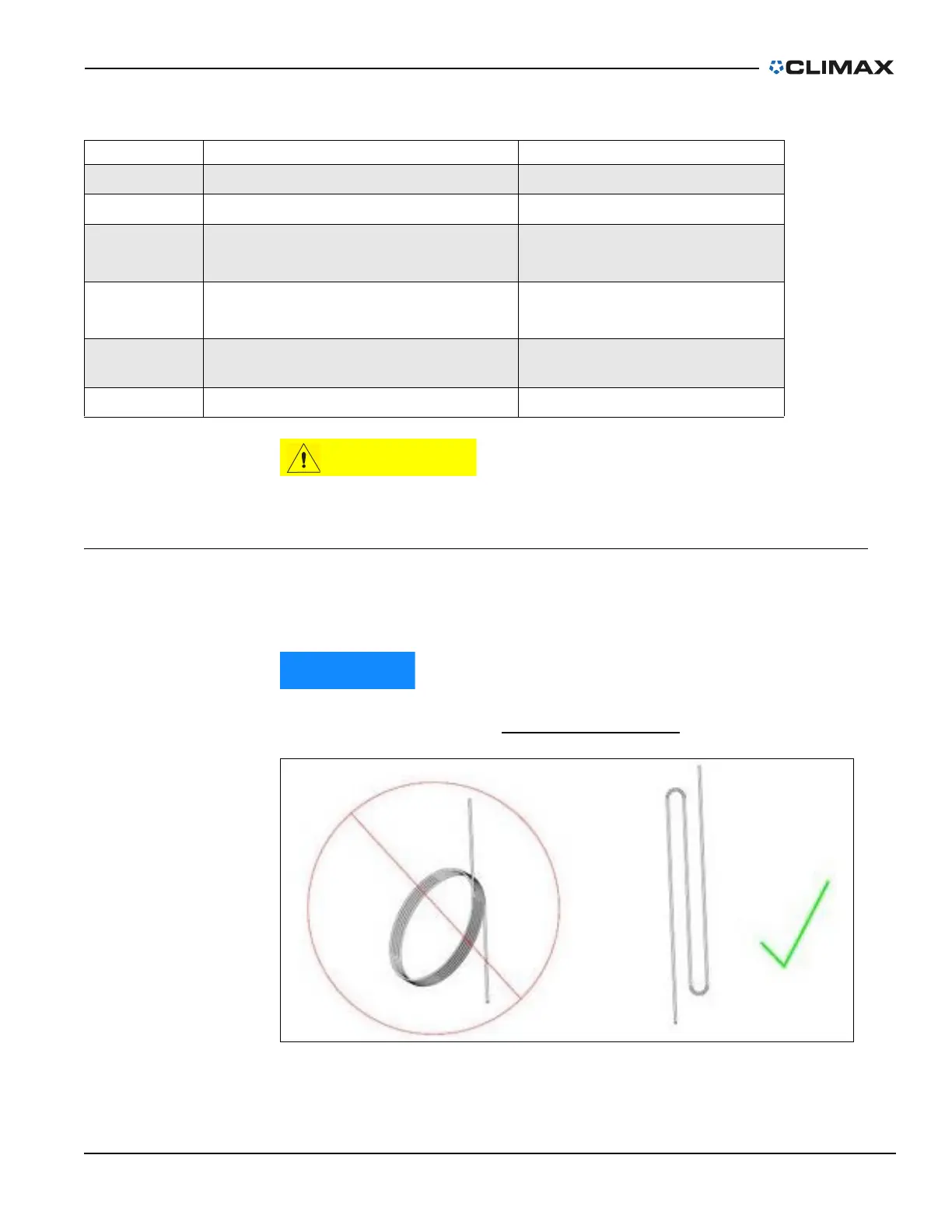

P/N 104075, Rev. 0 Page 47
Avoid damage to the machine and protect your warranty by using only
approved lubricants.
5.3 MAINTENANCE TASKS
Maintenance tasks are described in the following sections.
During operation, arrange cables in a serpentine pattern as shown in
Figure 5-1 on page 47. Do not coil the cables, as it could cause the
machine to malfunction.
FIGURE 5-1. CABLES IN SERPENTINE ARRANGEMENT, NOT COILED
Air tool oil Mobil Almo 525 Air lubricator oil cup
Lubricant Jet Lube 550 Cutting bit set screw in quill
Way oil
Mobil VACTRA #2
Heavy-Medium Way Oil
Dovetail ways
Hydraulic fluid Mobil DTE-24
Hydraulic system
Quill housing
Leadscrew
grease
Mobil Mobilith SHC 460 Leadscrews
Thread locker Loctite 242 Critical fasteners
TABLE 5-2. KM3000/KM4000 APPROVED LUBRICANTS
Lubricant Brand Application Area
