Climax KM3000 - Th Generation Hydraulic Keymill Assembly (P;N 34933)

Page 64 KM3000 KM4000 Operating Manual

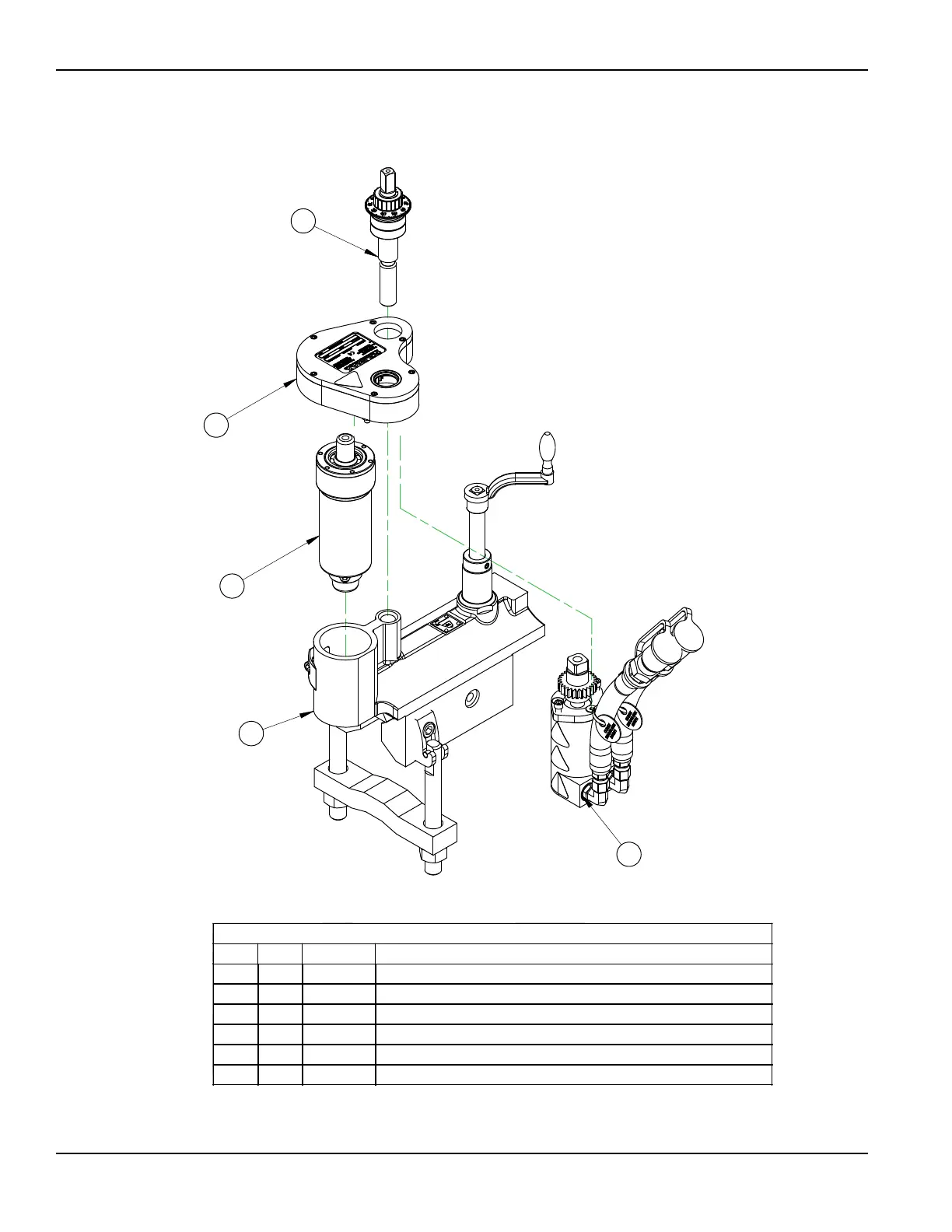

FIGURE A-9. 4TH GENERATION HYDRAULIC KEYMILL ASSEMBLY (P/N 34933)
PARTS LIST
DESCRIPTIONP/N:QTY
ITEM
KIT TOOL KM3000 KM4000 PM4000 (NOT SHOWN)
1373711
SPINDLE & QUILL ASSY INCH 3RD KM3000
1565112
ASSY LEADSCREW VERT ADJ INCH 3RD KM3000
1565513
BASE AND TOP SLIDE ASSY W/ BAR CLAMP288391
4
GEARBOX, KEYMILL 4th GENERATION HYDRAULIC349351
5
MOTOR ASSY HYD KM3000 4TH GEN GEAR BOX3500216
6
3
5
2
4
