Climax KM3000 - Page 41

P/N 104075, Rev. 0 Page 27

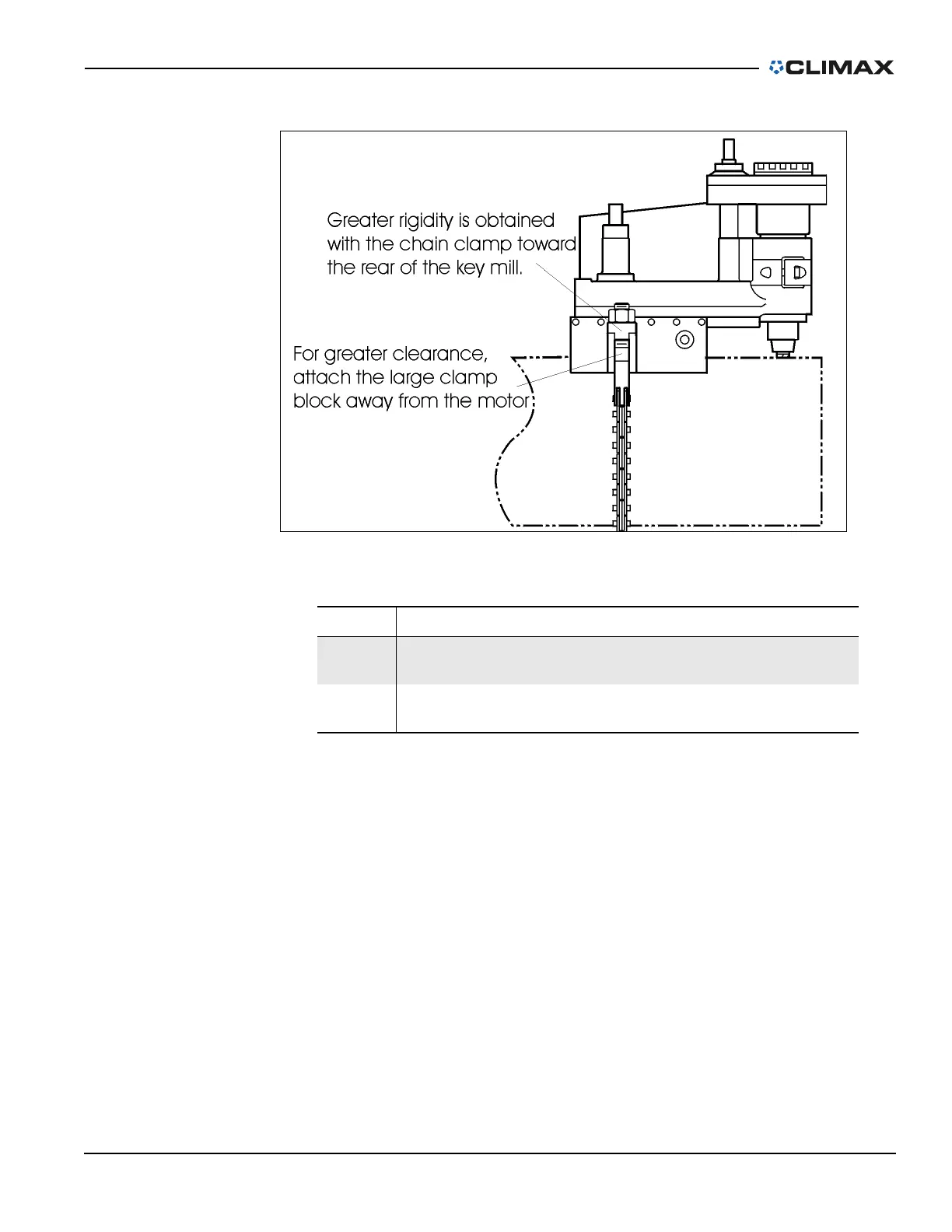

Figure 3-4 shows the large shaft mounting for the KM3000.
FIGURE 3-4. KM3000 LARGE SHAFT MOUNTING
Proceed as described in Section 3.4 on page 23.
Do the following:
1. Hook the chain onto the small clamp block.
2. Set the rocker onto the large clamp block.
3. Insert the end of the chain into the end of the chain clamp bolt. Insert the
pin to hold the chain in place.
4. Set the rocker on the large clamp block.
5. Wrap the chain and bolt around the shaft. Insert the chain clamp bolt,
threaded end up, into the clamp and rocker from the bottom.
6. Screw the nut onto the bolt. Tighten the nut until the chain securely holds
the machine onto the shaft.
TABLE 3-1. LARGE SHAFT MOUNTING IDENTIFICATION
Number Component
1
Greater rigidity is obtained with the chain clamp toward the rear
of the key mill
2
For greater clearance, attach the large clamp block away from
the motor.
1
2
