10.4. Pinouts
The cPRO / cPRO PLUS / cPRO ONE hand units are equipped with one LBUS connector
(Lemo 4 pin).

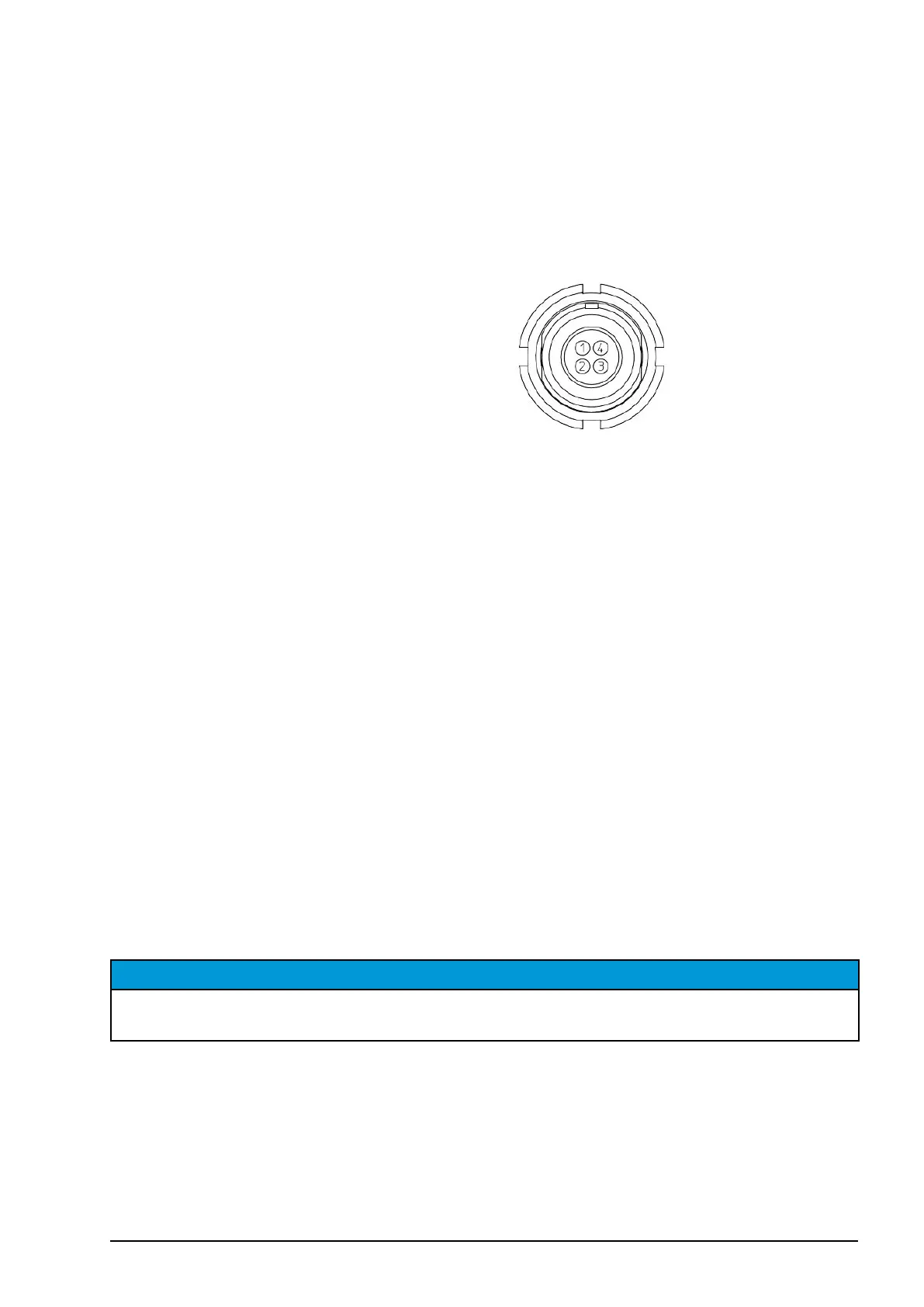

LBUS connector:
1 GND
2 CAN-L
3 V-BAT
4 CAN-H
10.5. Part numbers
K2.0016602 cPRO hand unit basic set
K2.0033607 cPRO ONE hand unit basic set
[K2.0037381] cPRO PLUS hand unit
The cPRO / cPRO PLUS / cPRO ONE hand unit basic set includes:
• cPRO / cPRO PLUS or cPRO ONE hand unit
• K2.0001996 swivel antenna for SMC-1, EMC-1, AMC-1, cPRO hand unit /
motor / camin
• K2.0019833 cPRO plain white iris strip (not available for cPRO ONE)
• K2.0020890 plain white focus ring for cPRO hand unit
• K2.0019832 cPRO truss
NOTICE
The cPRO / cPRO PLUS / cPRO ONE hand unit basic set does not include an LBUS or CAM
cable. LBUS cables are available in various lengths and need to be ordered separately.
Antenna part numbers
[K2.0002007] Outdoor antenna (straight)
[K2.0001996] cPRO swivel antenna
