Chapter 3. Installation
50

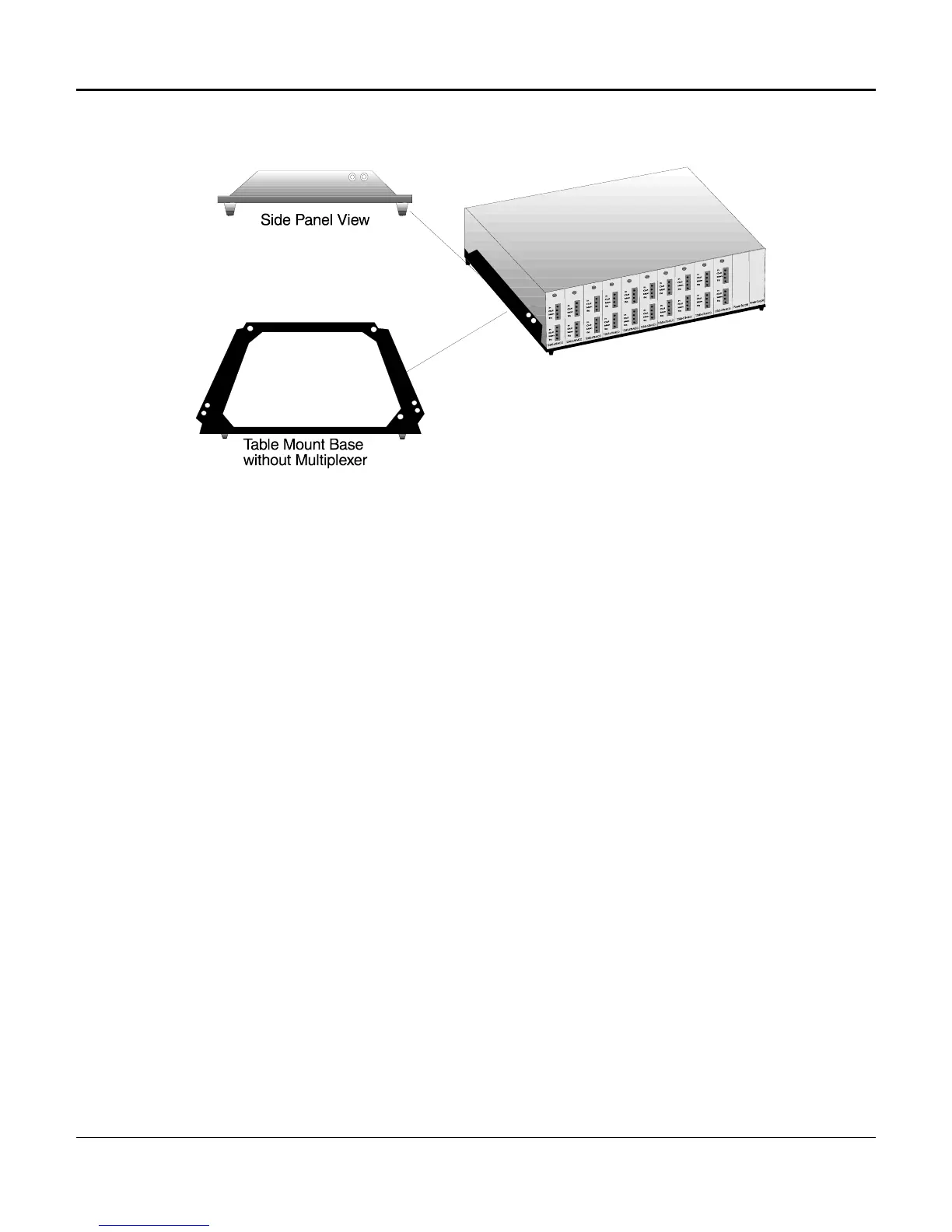

Figure 3-3. Table Mount Base
Wall Mounting
The D/I Mux III can be wall mounted when no rack mounting facilities are available. Research
applicable building codes to ensure compliance. Mount the shelf where ventilation is best.
Cooler operation of the unit will prolong the life of components and circuitry. Avoid wet or
extremely humid locations. Give careful attention to mounting the multiplexer to a wall that has
sufficient strength to bear the weight of the system. Conformal coating is available for D/I Mux III
equipment installed in areas subject to high humidity, heat, or salt corrosion.
