2-16 Setting Up the Hardware
3. Connect the Y end of the Power cable to the power ports on the
Controller and Recorder, as shown below. Connect one
connector to the Controller, and the other connector to the
Recorder.

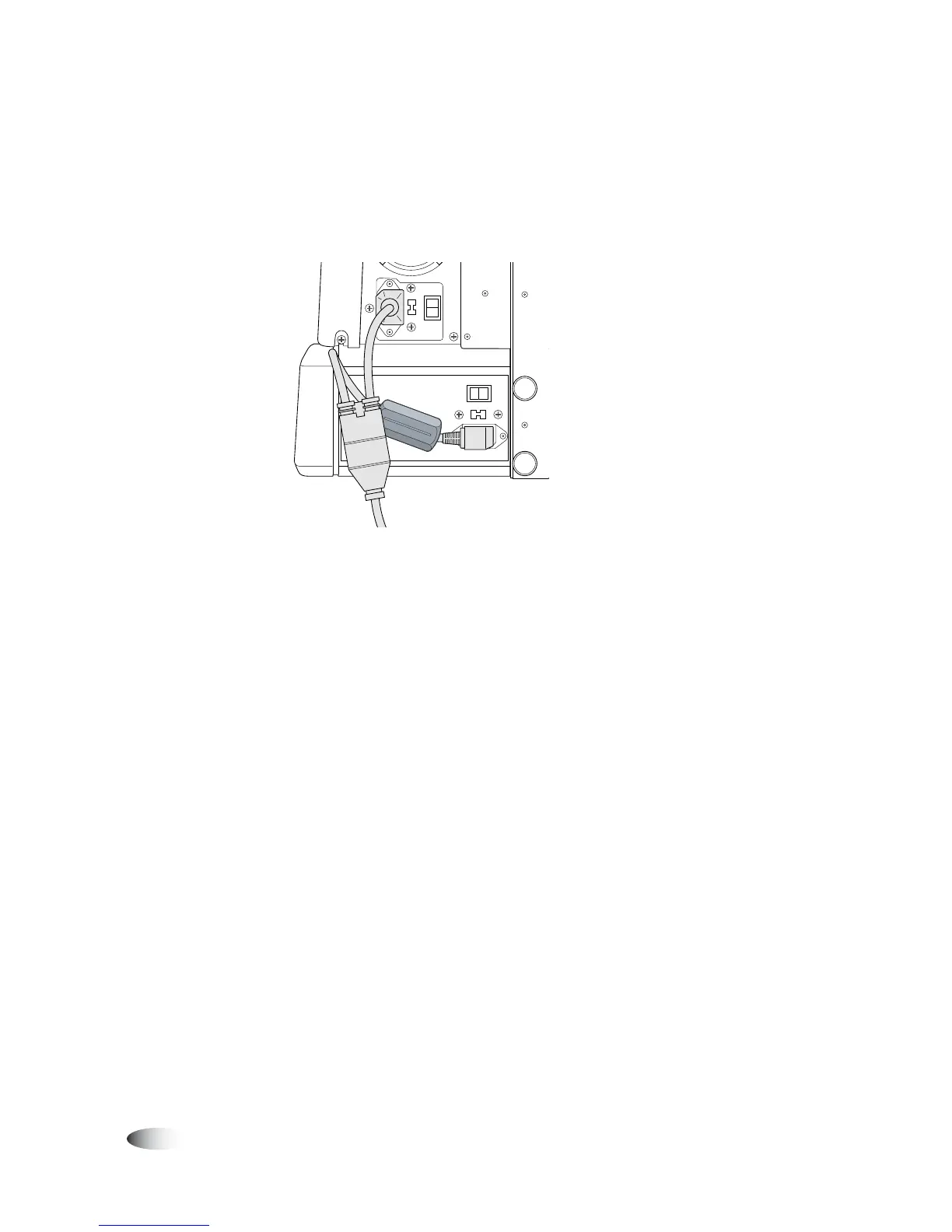

Y end of Power cable connected to the Controller and Recorder
NOTE:
For the Virtua-1-PS1 model only, the Controller power cable connector includes a
ferrite, as shown in the illustration above.
