M Series Service Manual
Page 101 of 129

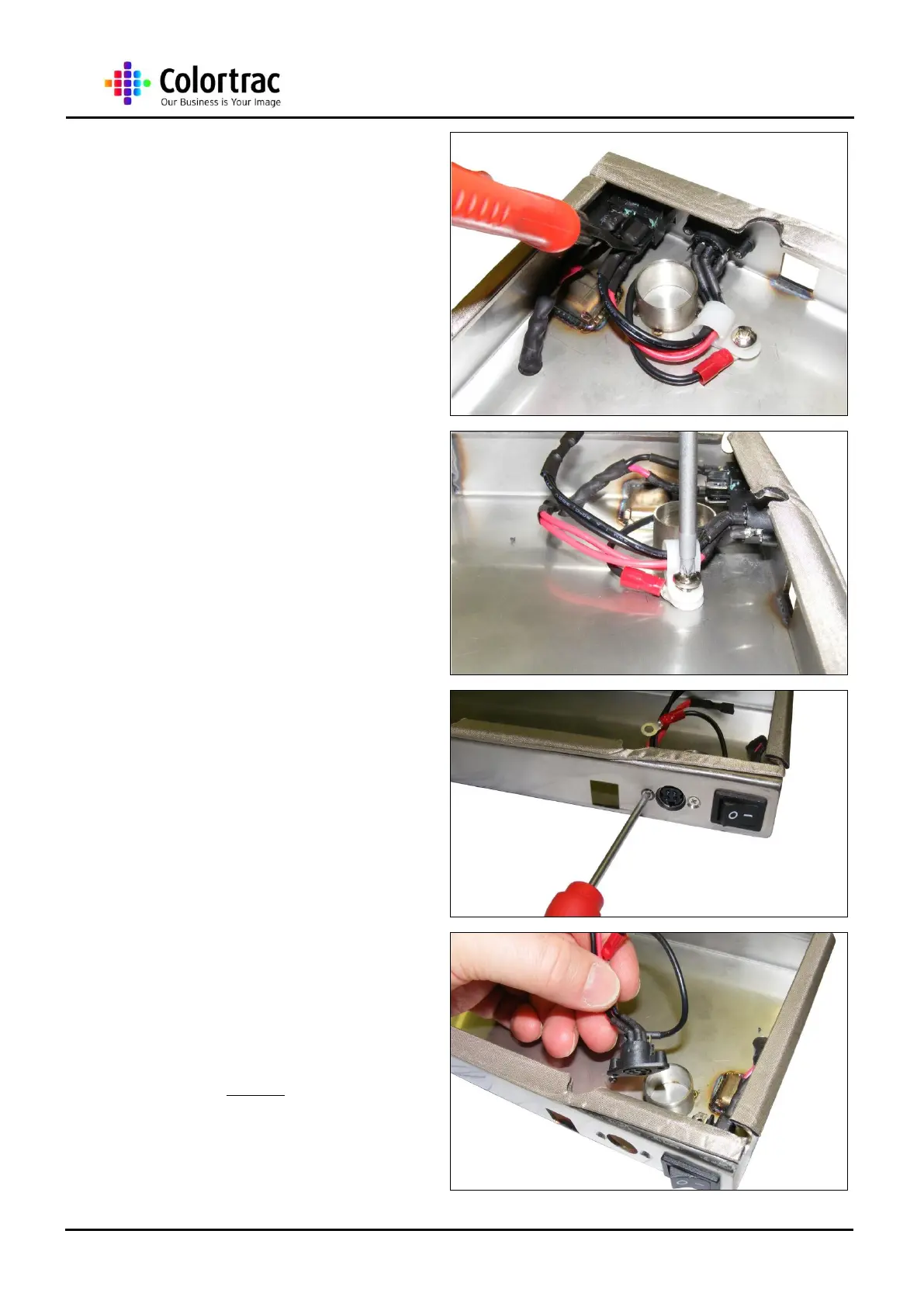

3. Using pliers, disconnect the 2
x Cables connected to the
Power Switch.
4. Remove the M4 screw
holding the ‘P’ cable clip and
earth tag.
5. Remove 2 x screws holding
the Power Socket to the Main
Board Cover.
6. After disconnecting the
cables from the Cable Clip,
remove the Power Socket
from the Rear Panel.
7. Refit the Power Socket,
making sure the Cables are
inserted into the Cable Clip.
