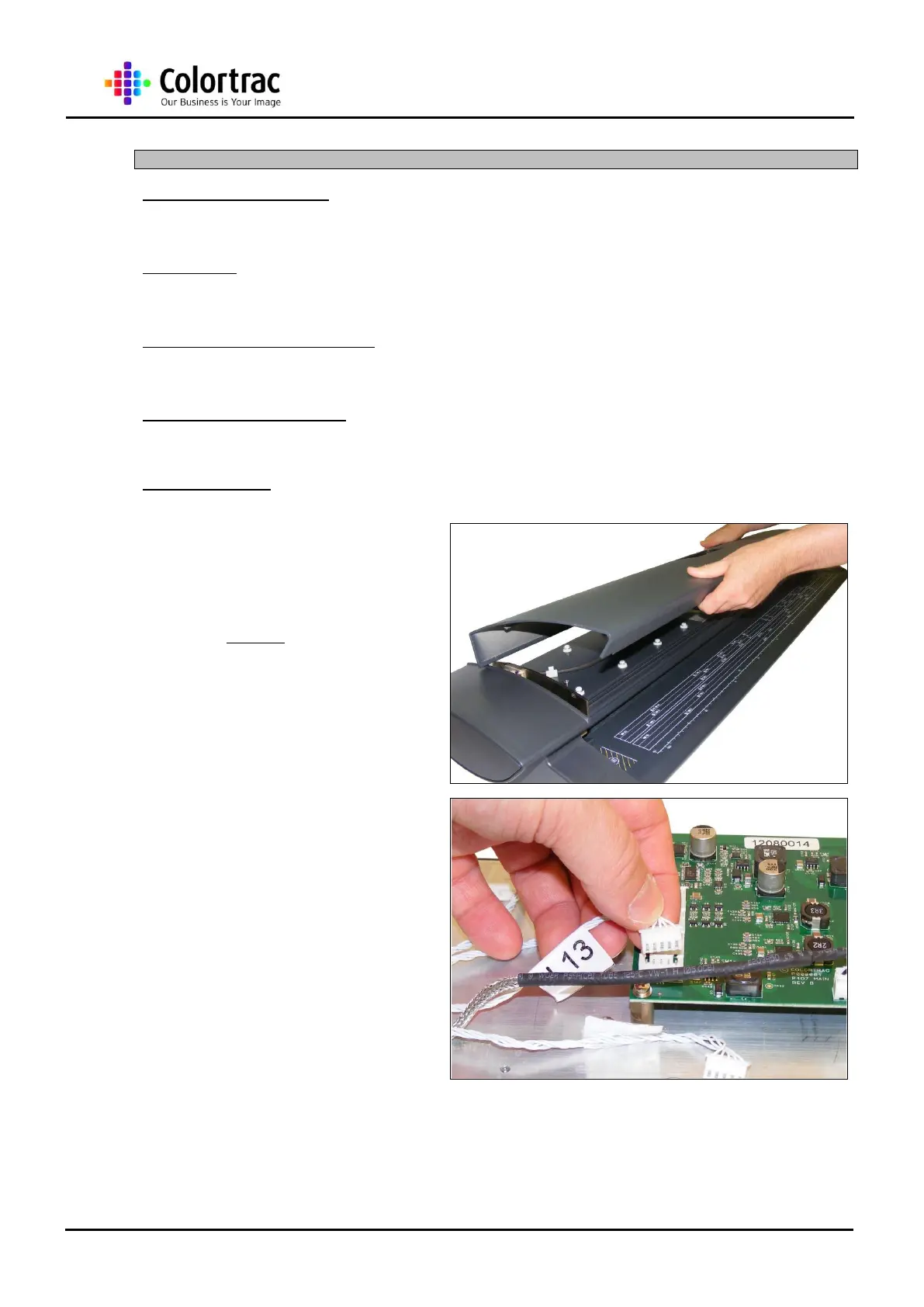

14.4 SingleSensor CIS Assy
14.4.1 Safety Precautions
Ensure that the power and USB cables are completely disconnected from the scanner unit.
Ensure the scanner is positioned on a stable maintenance platform.
14.4.2 Tools
Small Pozi-drive Screwdriver
Medium Flat Screwdriver
14.4.3 Associated Part Numbers
10H127 : M40 SingleSensor CIS Assy
10H084 : M25 SingleSensor CIS Assy
14.4.4 Important Information
For all photos, please refer to chapter “7 Photos Information” on page 9.
1. Remove the Top Lid Cover
as described in chapter “13.4
Top Lid Cover” page 24.
2. Disconnect the 4 x LED
cables as described in
chapter “14.1 Main Board”
page 45. Do not remove the
Main Board, just disconnect.
To Next Page
