Colortrac M25e - Left End Cover

M Series Service Manual
Page 20 of 129
13.2 Left End Cover
13.2.1 Safety Precautions
 Ensure that the power and USB cables are completely disconnected from the scanner unit.
 Ensure the scanner is positioned on a stable maintenance platform.
13.2.2 Tools
 Small flat bladed screwdriver.
 Medium Pozi-drive screwdriver.
13.2.3 Associated Part Numbers
 10H133 : Left End Cover Sub-Assy
13.2.4 Important Information
 For all photos, please refer to chapter “7 Photos Information” on page 9.
13.2.5 Procedure

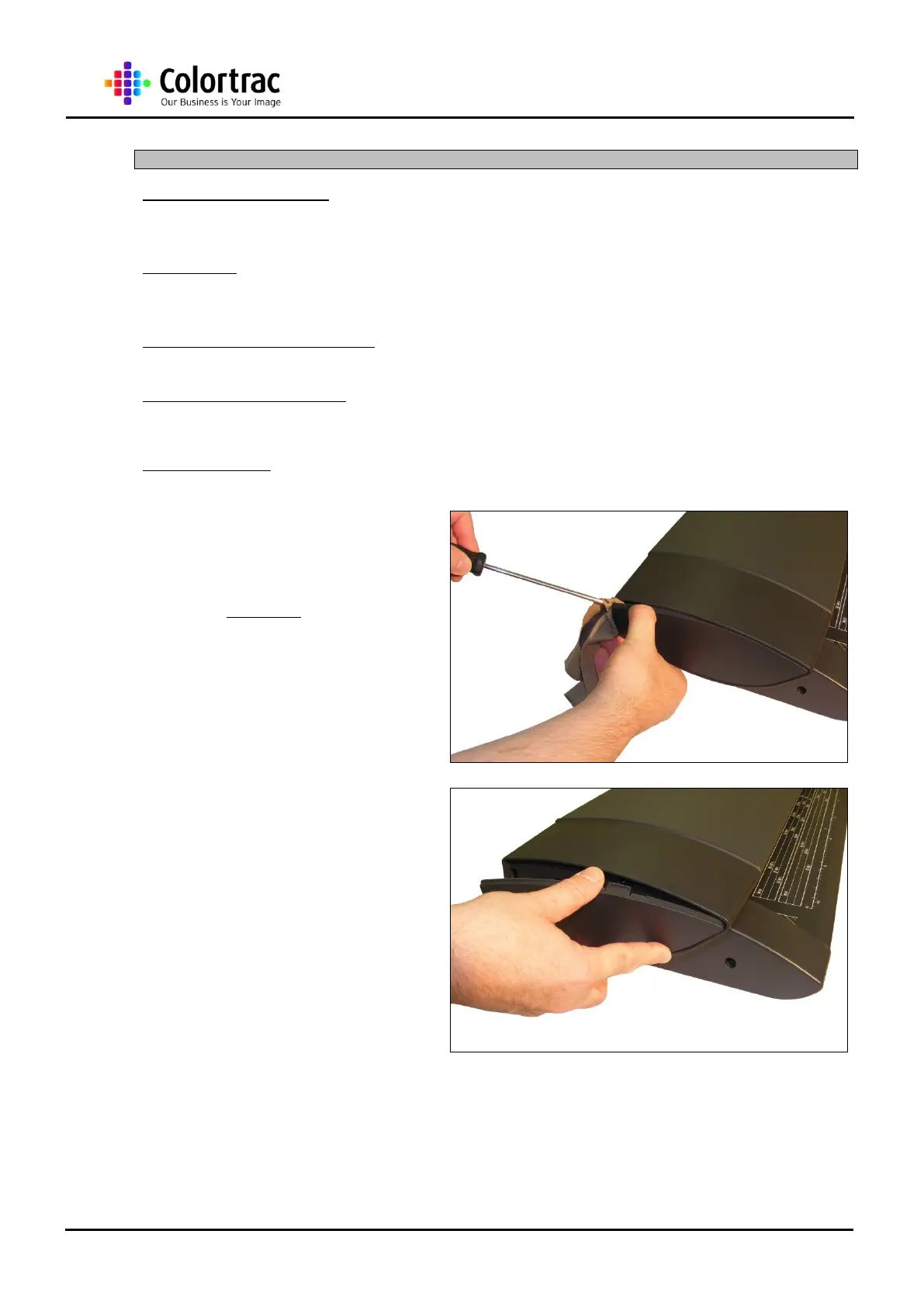

1. To remove the Left End
Cover, use a flat Screwdriver
and cloth to lever off the Left
End Cover Plate.
2. Lift the Left End Cover Plate
away from the Left End
Cover, and store in a safe
place.
