Colortrac M25e - Hold up Roller Unit Support Bar

M Series Service Manual
Page 82 of 129
14.7 Hold Up Roller Unit Support Bar
14.7.1 Safety Precautions
 Ensure that the power and USB cables are completely disconnected from the scanner unit.
 Ensure the scanner is positioned on a stable maintenance platform.
14.7.2 Tools
 Small Flat Screwdriver
 Small Pozi-drive Screwdriver
14.7.3 Associated Part Numbers
 10H135 : M40 Hold Up Roller Unit Support Bar
 10H050 : M25 Hold Up Roller Unit Support Bar
14.7.4 Important Information
 For all photos, please refer to chapter “7 Photos Information” on page 9.

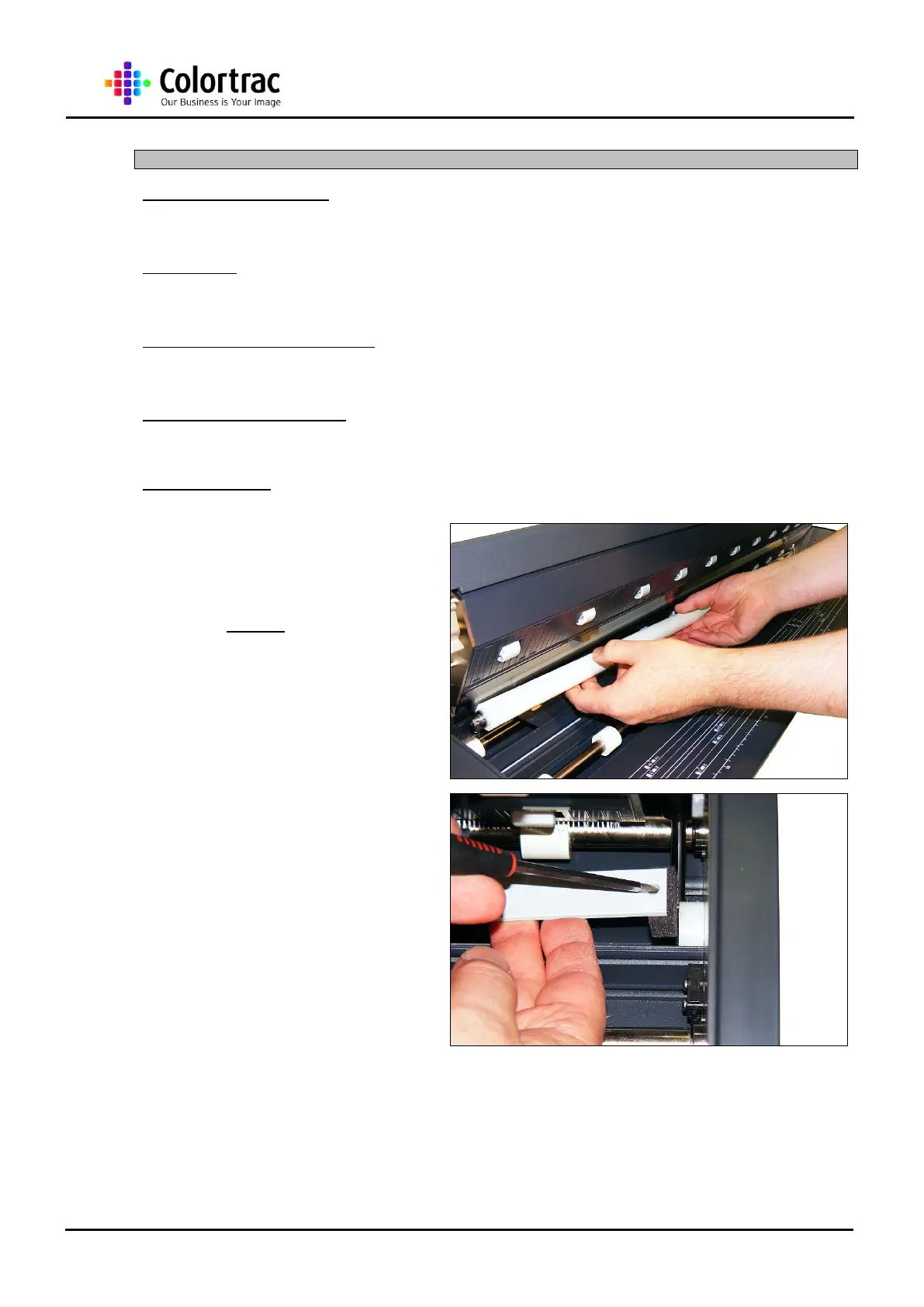

14.7.5 Procedure
1. Remove the Hold Up Roller
Unit as described in chapter
“14.6 Hold Up Roller Unit”
page 75.
2. Use the Small Flat
Screwdriver to lift the right
end of the Hold Up Roller
Unit Support Bar.
