13.4.1 Safety Precautions
Ensure that the power and USB cables are completely disconnected from the scanner unit.
Ensure the scanner is positioned on a stable maintenance platform.
13.4.2 Tools
Medium Pozi-drive screwdriver.
13.4.3 Associated Part Numbers
10H124 : M40 Top Lid Cover
10H079 : M25 Top Lid Cover
13.4.4 Important Information
For all photos, please refer to chapter “7 Photos Information” on page 9.

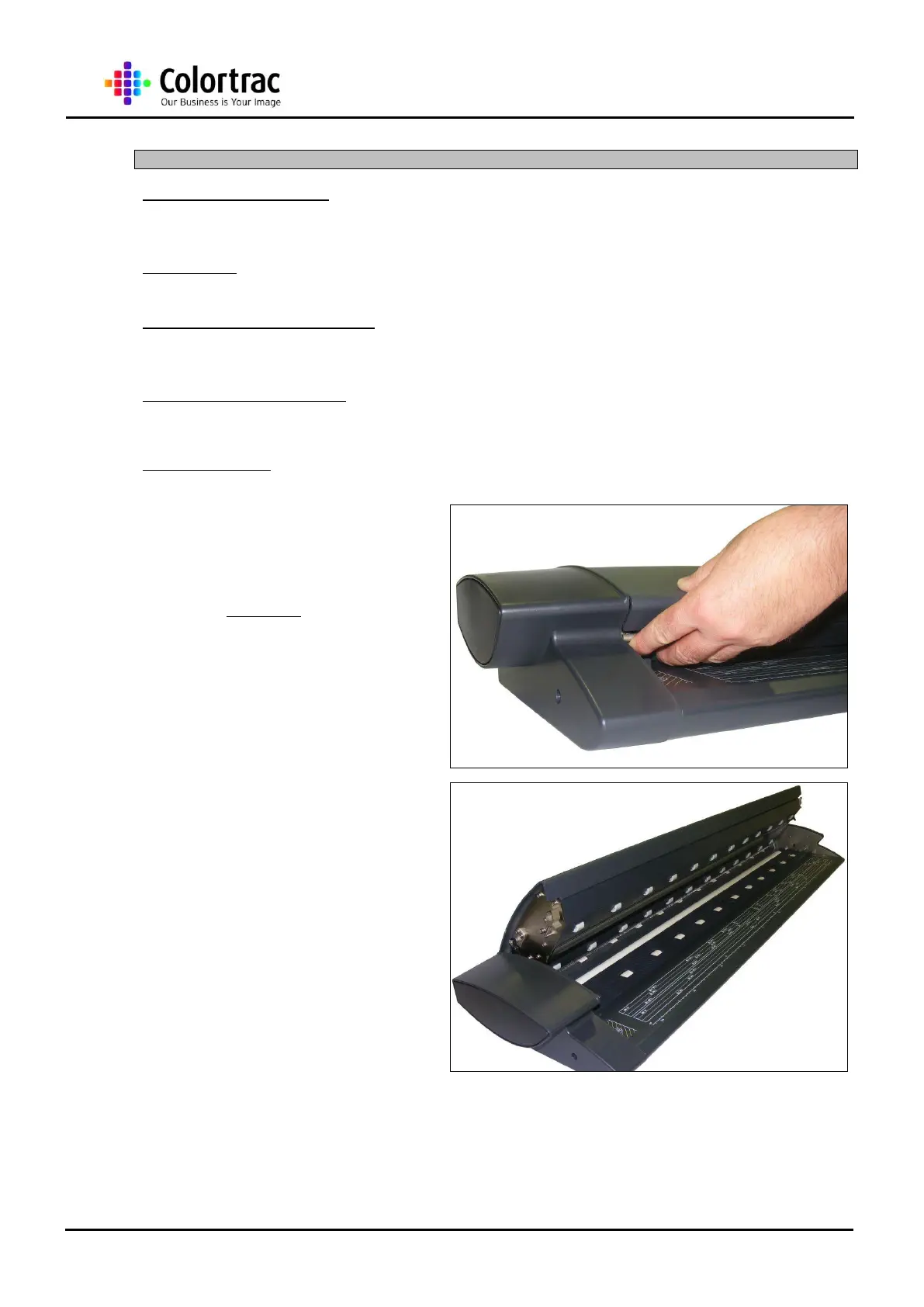

1. To remove the Top Lid
Cover, first depress the Lid
Latches at either end of the
Lid Assembly.
2. Allow the Lid Assembly to
gently open.
To Next Page
