14.10 Paper Sensor
14.10.1 Safety Precautions
 Ensure that the power and USB cables are completely disconnected from the scanner unit.
 Ensure the scanner is positioned on a stable maintenance platform.
14.10.2 Tools
 Small Flat Screwdriver
 Small Pozi-drive Screwdriver
14.10.3 Associated Part Numbers
 71H001 : Paper Sensor Assembly (part of 10H078 : M40 Paper Sensor Pack)
 71H001 : Paper Sensor Assembly (part of 10H051 : M25 Paper Sensor Pack)
14.10.4 Important Information
 For all photos, please refer to chapter “7 Photos Information” on page 9.
14.10.5 Procedure

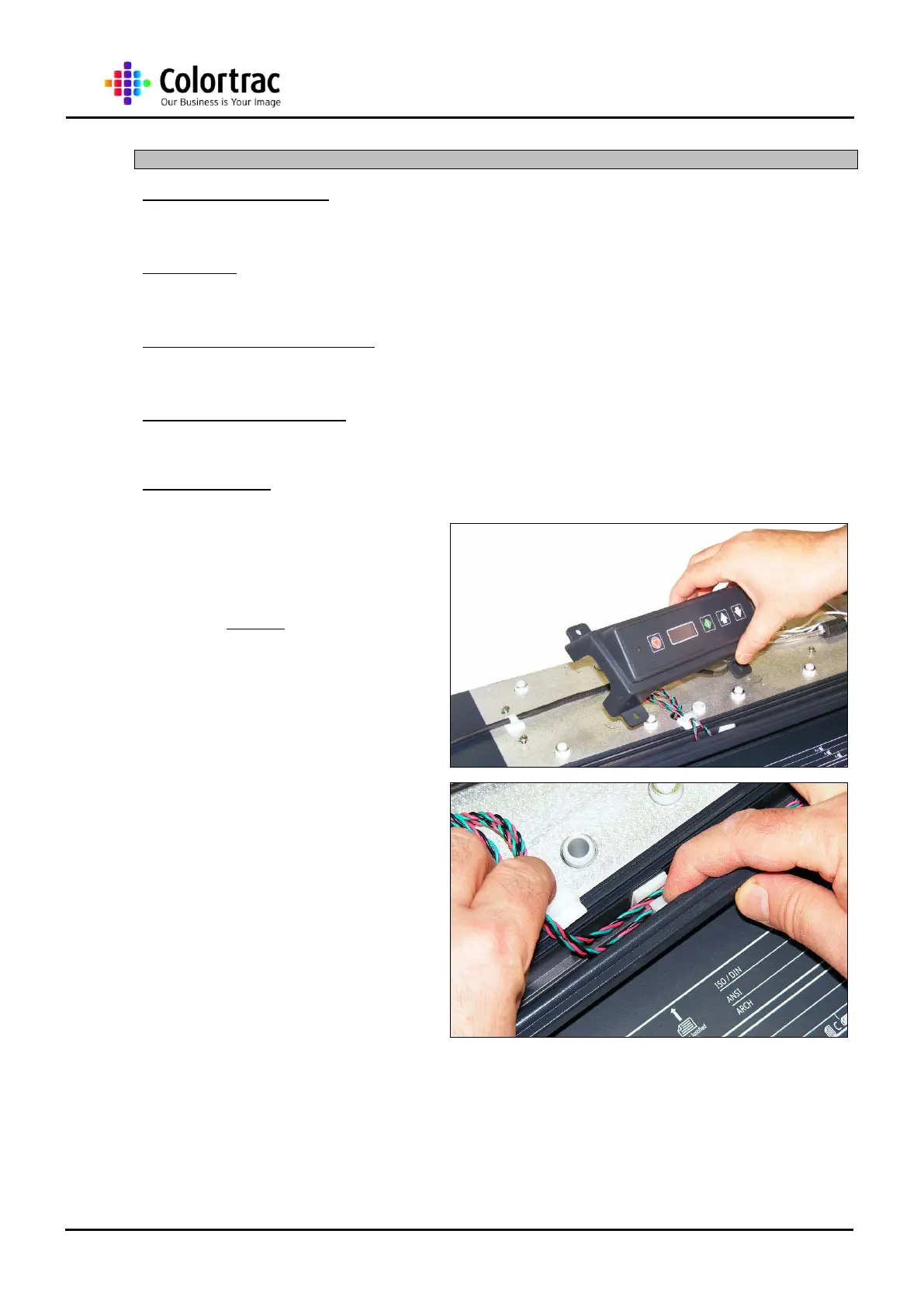

1. Remove the Control Board
Bracket as described in
chapter “14.2 Control Board”
page 53.
NOTE: It is not necessary to remove the
Control Board from the Control Board Bracket
for this procedure.
2. Release the Paper Sensor
Cables from the Lid
Assembly Cable Clips.
