Colortrac M25e - Calibration

M Series Service Manual
Page 112 of 129

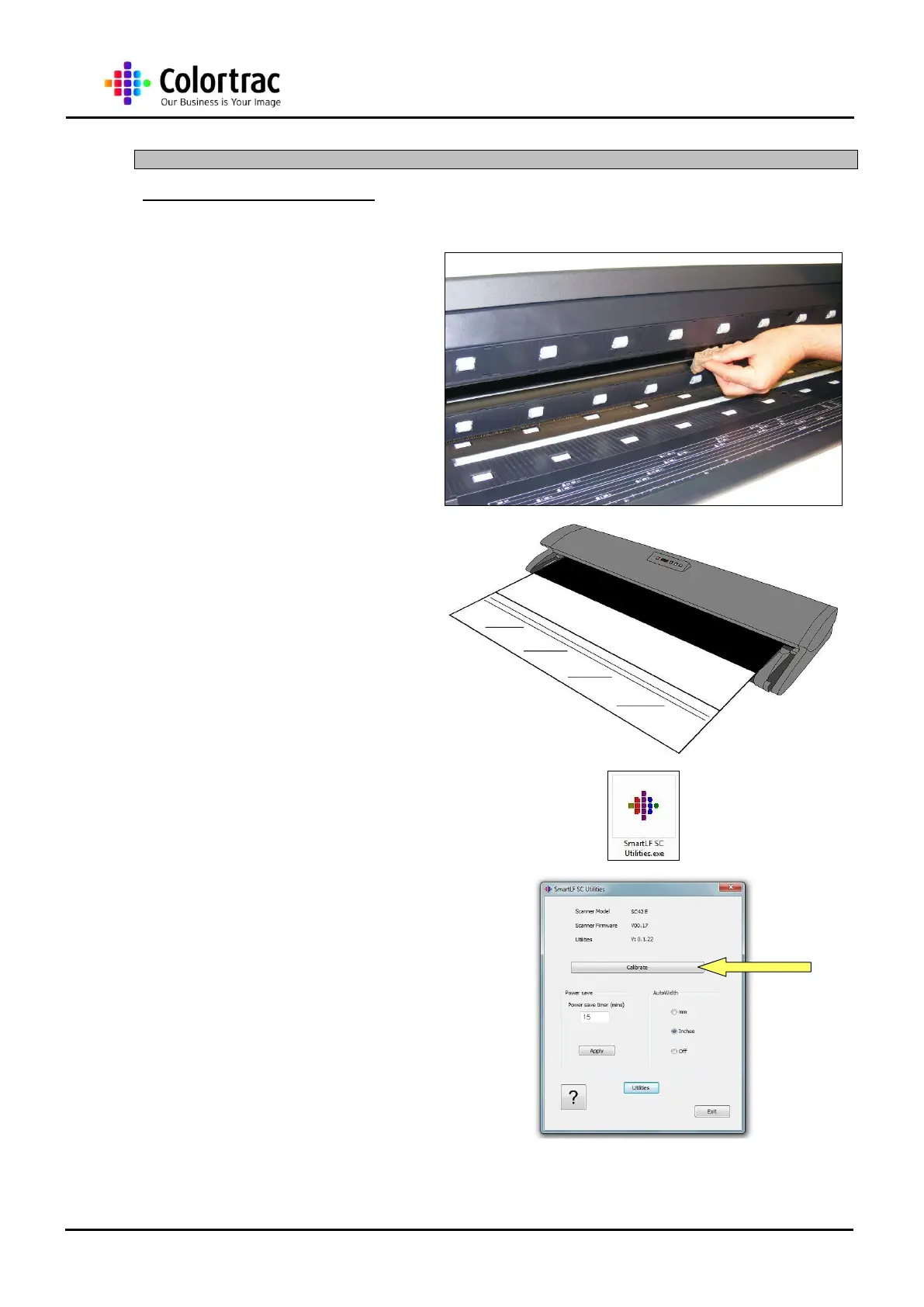

15.2 Calibration
15.2.1 Associated Part Numbers
 10H028 : Calibration and Auto-stitch Target
1. Open the Lid Assembly and
clean the SingleSensor
Glass Sub-Assy. Close the
Lid Assembley.
2. Insert the Calibration Target
so that the black part
section is inserted first, face
up.
NOTE: It is necessary to remove the
Magnetic Paper Guide so the target can fit
centrally in scanner.
3. Double click the SmartLF M
Utilities icon.
4. On the front page, click the
‘Calibrate’ button.
