Colortrac M25e - Power Socket

M Series Service Manual
Page 100 of 129
14.13 Power Socket
14.13.1 Safety Precautions
 Ensure that the power and USB cables are completely disconnected from the scanner unit.
 Ensure the scanner is positioned on a stable maintenance platform.
14.13.2 Tools
 Small Pozi-drive Screwdriver
 Pliers
14.13.3 Associated Part Numbers
 10H010 : Power Socket Assembly
14.13.4 Important Information
 For all photos, please refer to chapter “7 Photos Information” on page 9.
14.13.5 Procedure

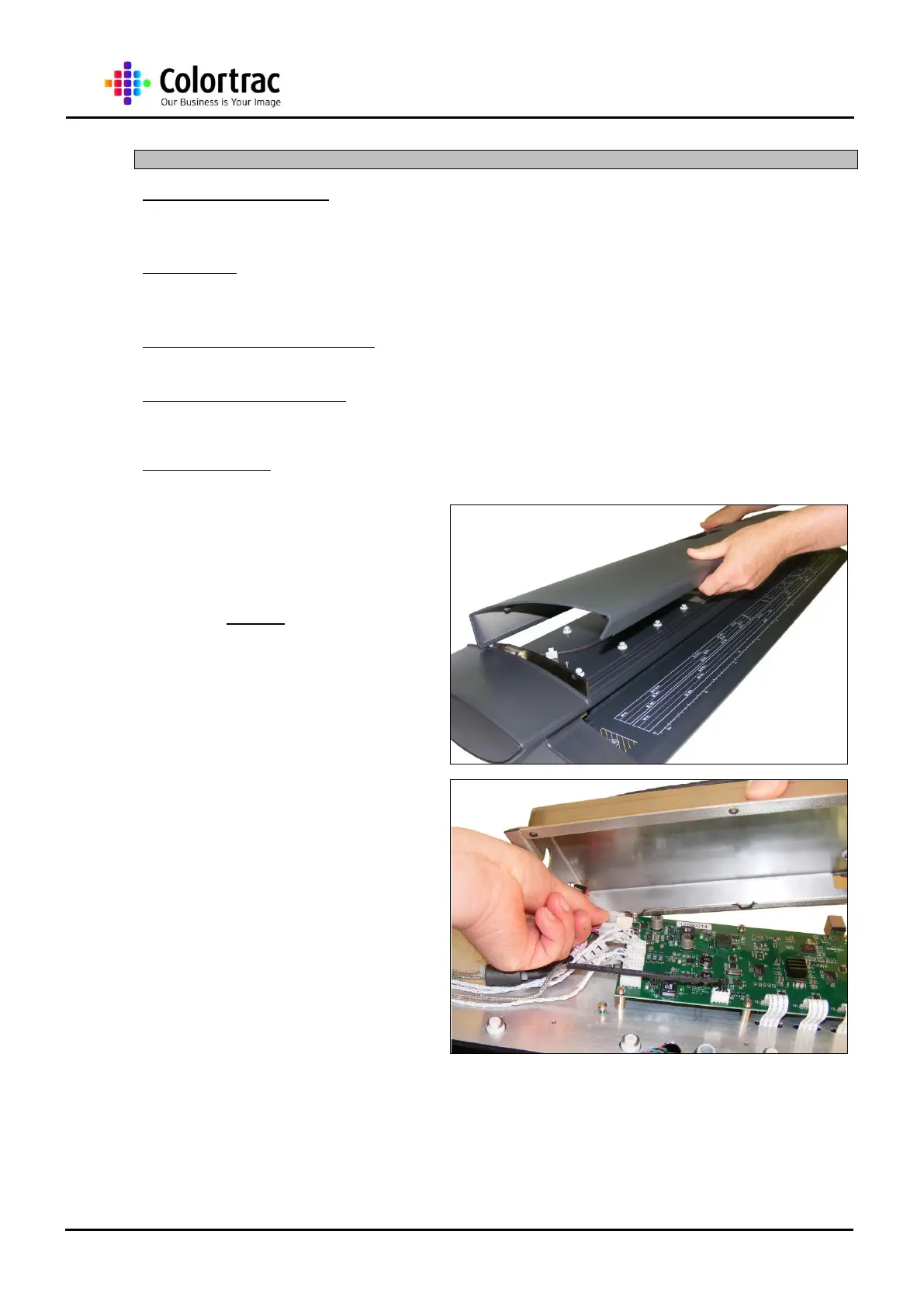

1. Remove the Top Lid Cover
as described in chapter “13.4
Top Lid Cover” page 24.
2. Remove the Main Board
Cover as described in
chapter “14.1 Main Board”
page 45.
