14.2 Control Board
14.2.1 Safety Precautions
 Ensure that the power and USB cables are completely disconnected from the scanner unit.
 Ensure the scanner is positioned on a stable maintenance platform.
14.2.2 Tools
 Small Pozi-drive screwdriver.
 Pencil
14.2.3 Associated Part Numbers
 10H004 : Control Board
 10H125 : M40 Control Board Bracket Assembly
 10H086 : M25 Control Board Bracket Assembly
 10H075 : M40 Control Board Bracket Cover
14.2.4 Important Information
 For all photos, please refer to chapter “7 Photos Information” on page 9.
14.2.5 Procedure

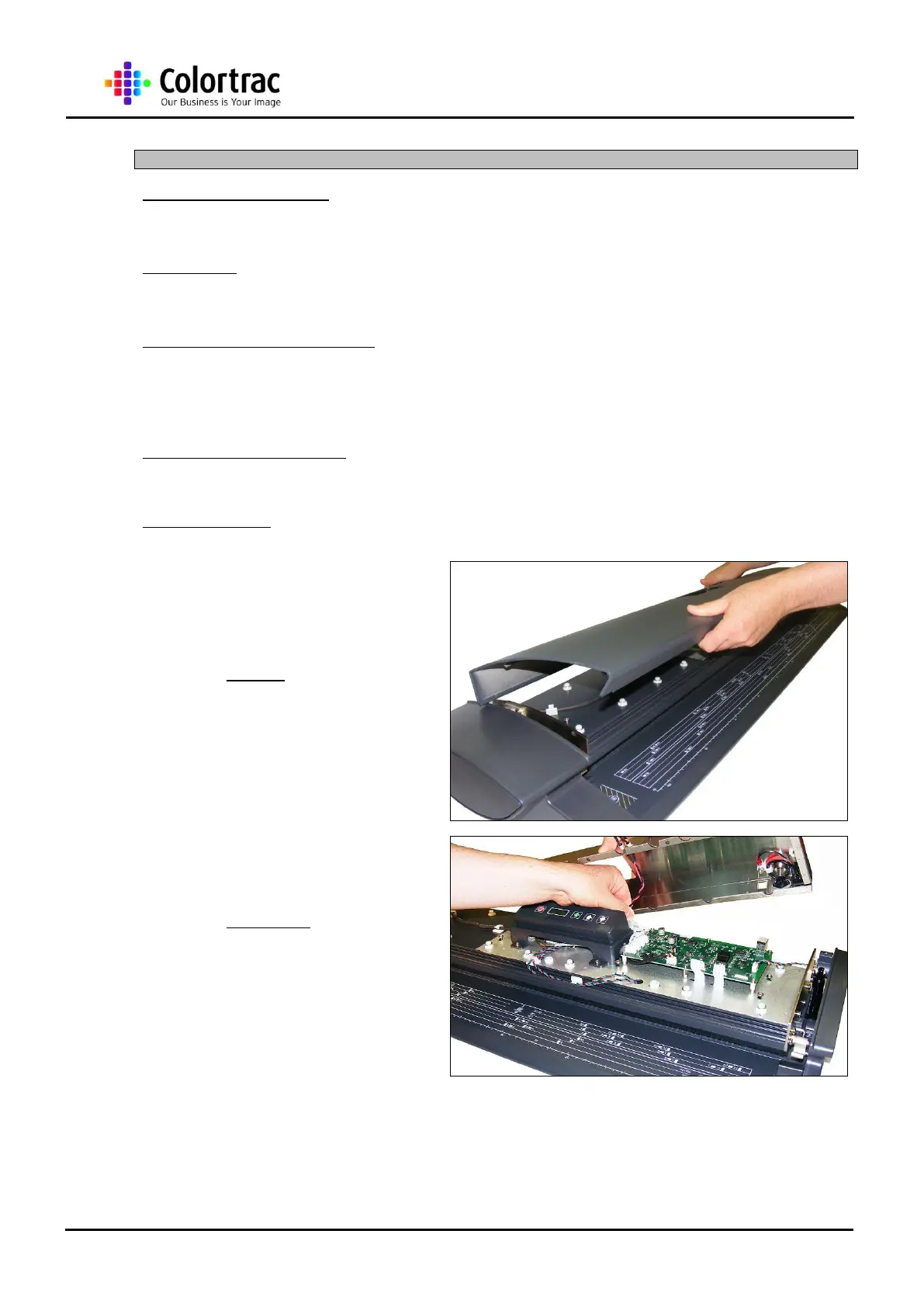

1. Remove the Top Lid Cover
as described in chapter “13.4
Top Lid Cover” page 24.
2. For the M25, remove the
Main Board Cover as shown
in chapter “14.1 Main Board”
page 45, then go to
instruction 6 in this chapter.
