Colortrac M25e - Right End Cover

M Series Service Manual
Page 22 of 129
13.3 Right End Cover
13.3.1 Safety Precautions
 Ensure that the power and USB cables are completely disconnected from the scanner unit.
 Ensure the scanner is positioned on a stable maintenance platform.
13.3.2 Tools
 Small flat bladed screwdriver
 Medium Pozi-drive screwdriver.
13.3.3 Associated Part Numbers
 10H134 : Right End Cover Sub Assy
13.3.4 Important Information
 For all photos, please refer to chapter “7 Photos Information” on page 9.
13.3.5 Procedure

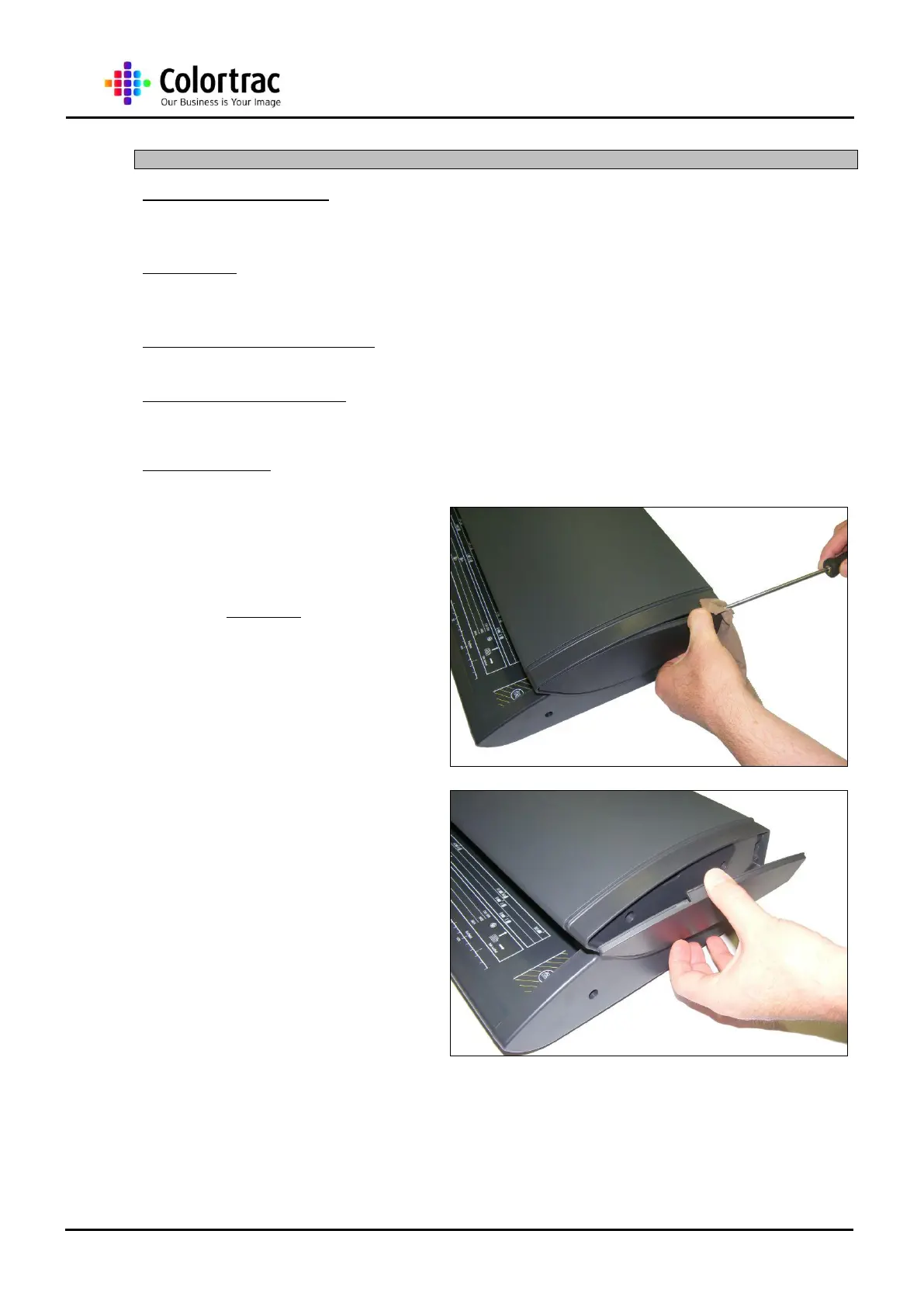

1. To remove the Right End
Cover , use a flat Screwdriver
and cloth to lever off the
Right End Cover Plate.
2. Lift the Right End Cover Plate
away from the Right End
Cover and store in a safe
place.
